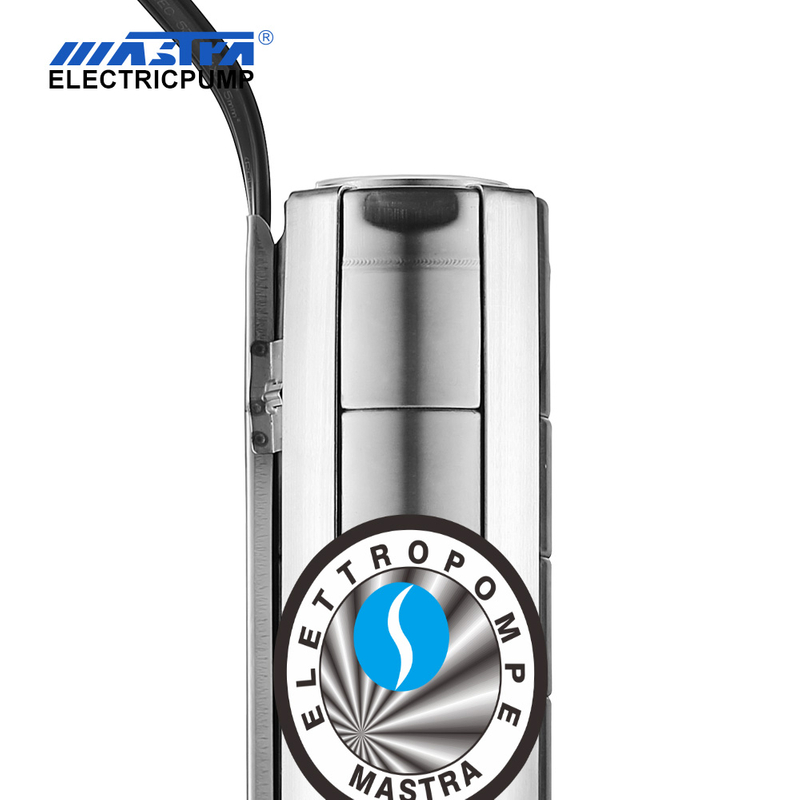

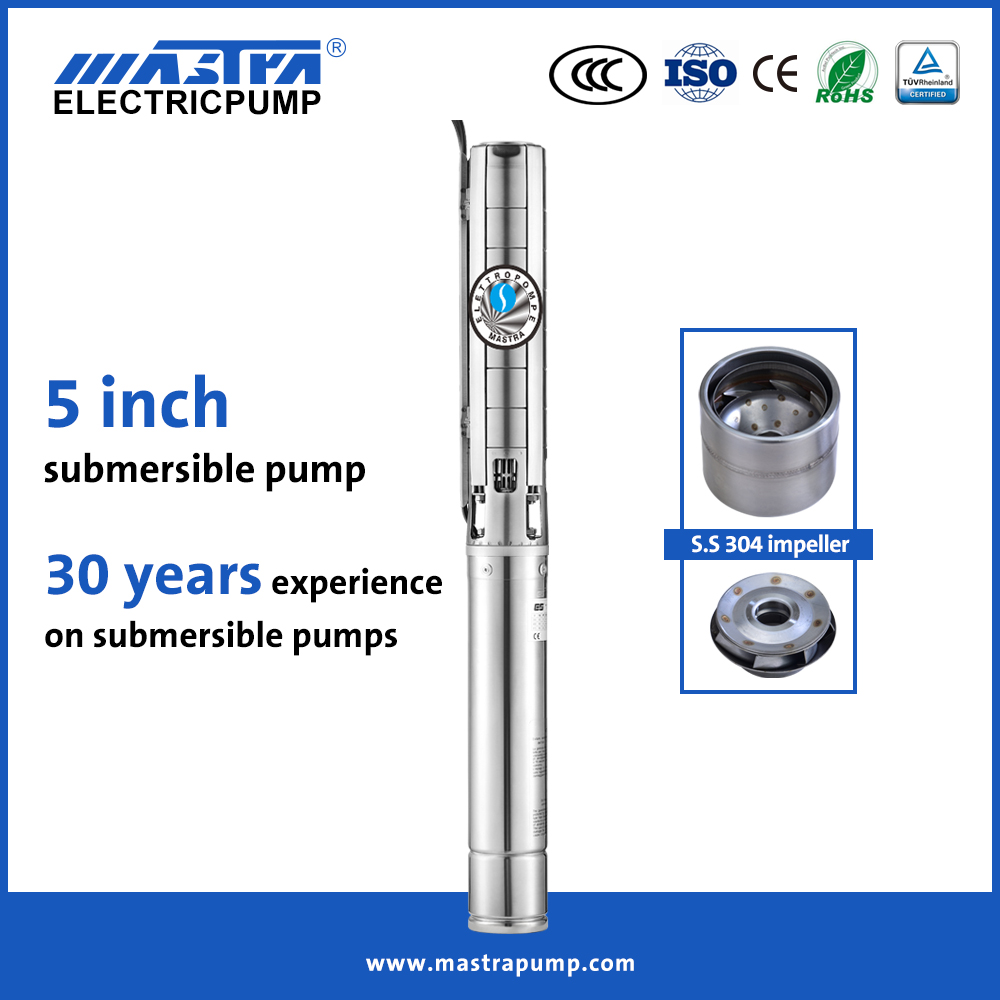

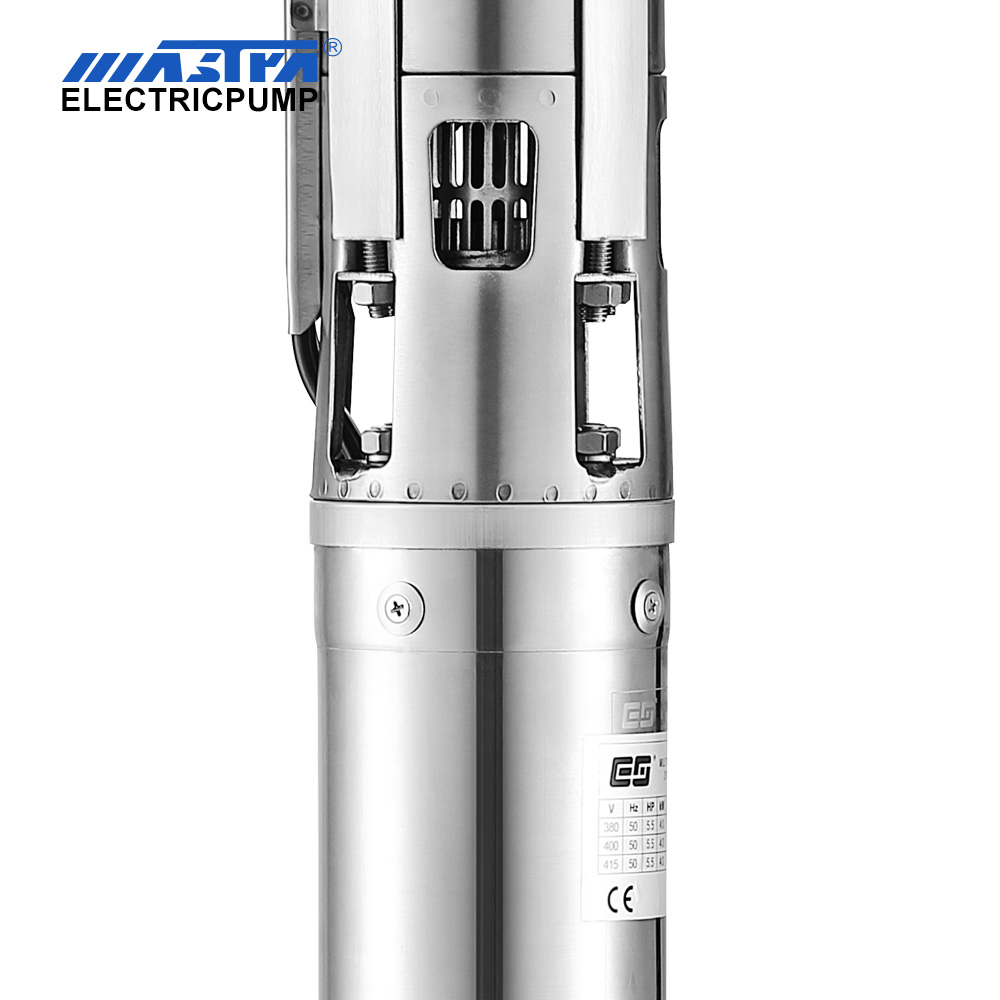

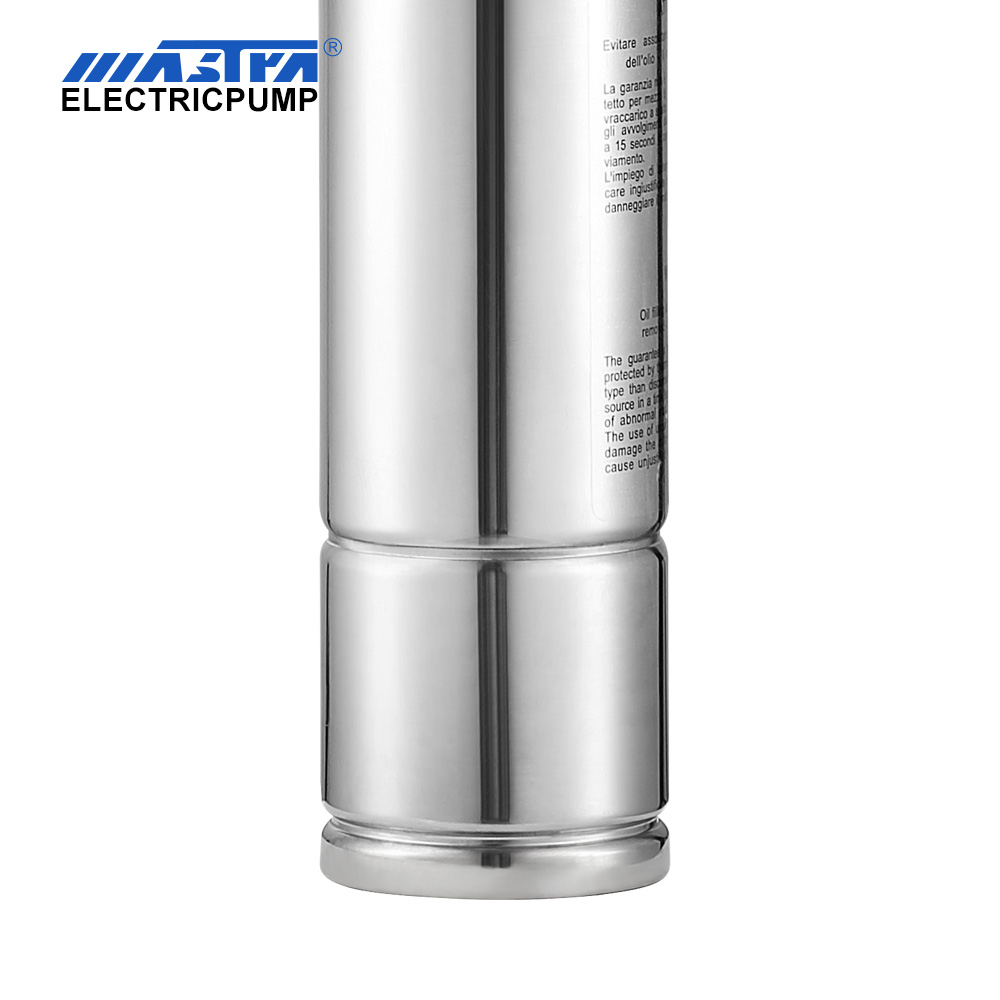

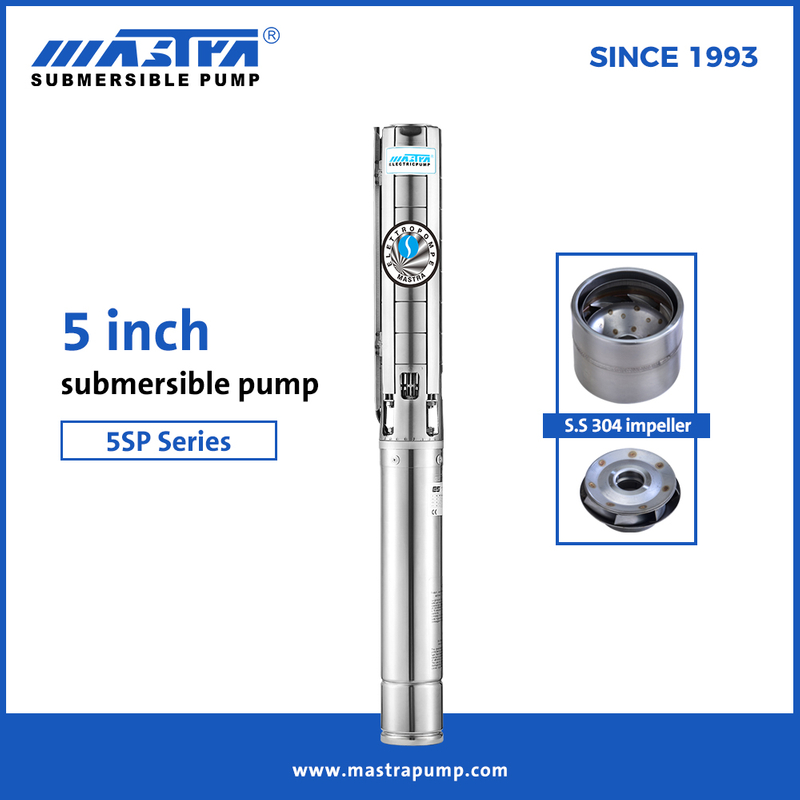

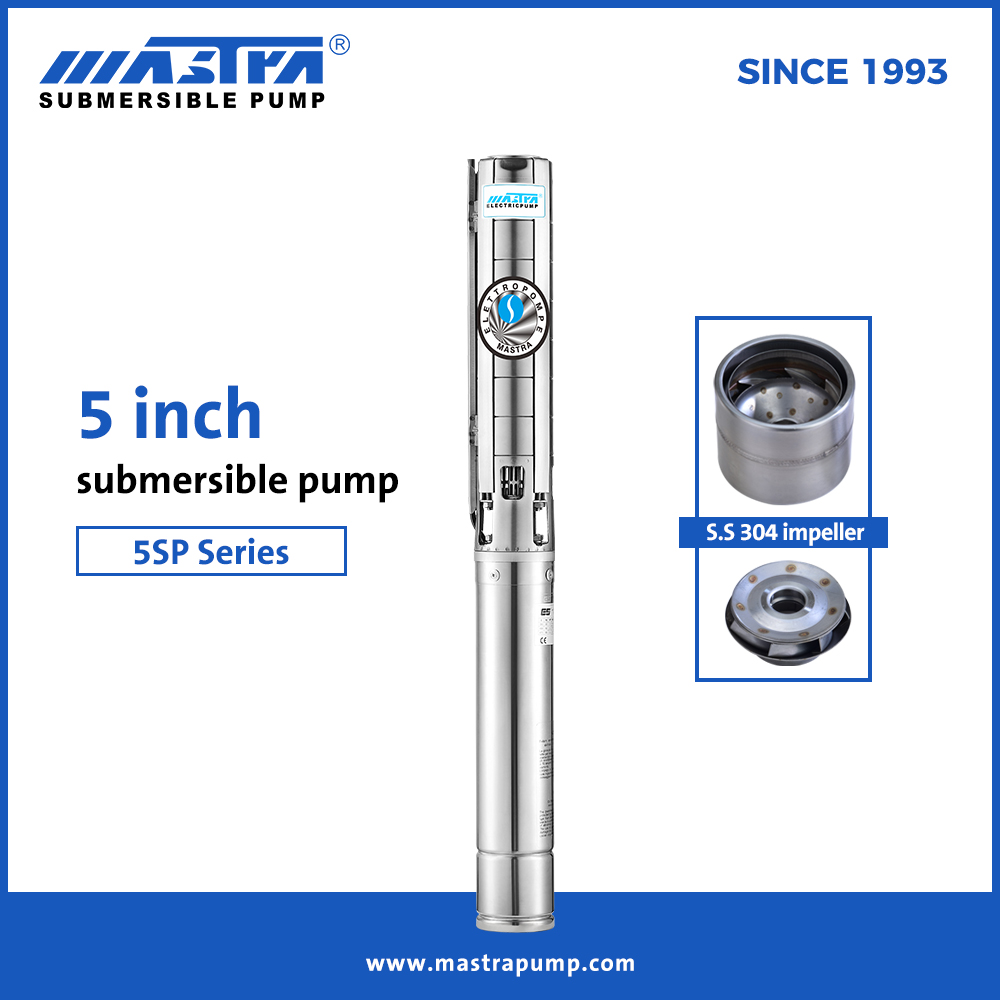

MASTRA 5 inch Full Stainless Steel Submersible Well Pump 5SP Series Submersible Deep Well Pump Borehole Pump

Name: MASTRA 5 inch Full Stainless Steel Submersible Well Pump 5SP Series Submersible Deep Well Pump Borehole Pump
Brand: MASTRA
Rating: 5.0 (71 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
5SP
Brand:
MASTRA

Metal parts for 3SP, 4SP, 5SP, 6SP, 8SP and 10SP series of submersible pump such as impeller, diffuser, pump outlet and suction support etc. are made of wearable and anticorrosive stainless steel AISI304 through advanced moulding and punching craft procedures. Rubber bearing is made of wearable rubber with low friction. The connection method between coupler and motor is in compliance with standard of NEMA. Our impeller and diffuser are designed and manufactured according to the requirements of high efficiency, high reliability and long service life.

Feature:

1. All metal materials are 100% SS304, the structure is corrosion resistant, clean and environmental friendly, and will not cause secondary pollution to the water quality.

2. It is equipped with check valve to prevent the impact of backflow water pressure when the electric pump stops. Drain holes can also be set on the check valve seat according to the customer's needs to slowly drain the water in the pipeline to prevent the pipeline from freezing in winter.

3. All stainless steel impellers has obviously higher wear-resistant and longer service life than the ordinary plastic impeller and brass impeller, so that the pump has high efficiency, good stability and long service life.

4. Stainless steel sand net to prevent sand or large particulate matter into the pump body.

Parts				Material
Shaft				AISI 304(316L)
Coupling				AISI 304(316L)
Check valve				AISI 304(316L)
Pump body				AISI 304(316L)
Impeller				AISI 304(316L)
Diffuser				AISI 304(316L)
Bearing				Wear resistant rubber
Suction strainer				AISI 304(316L)
Suction support				AISI 304(316L)
Delivery body				AISI 304(316L)

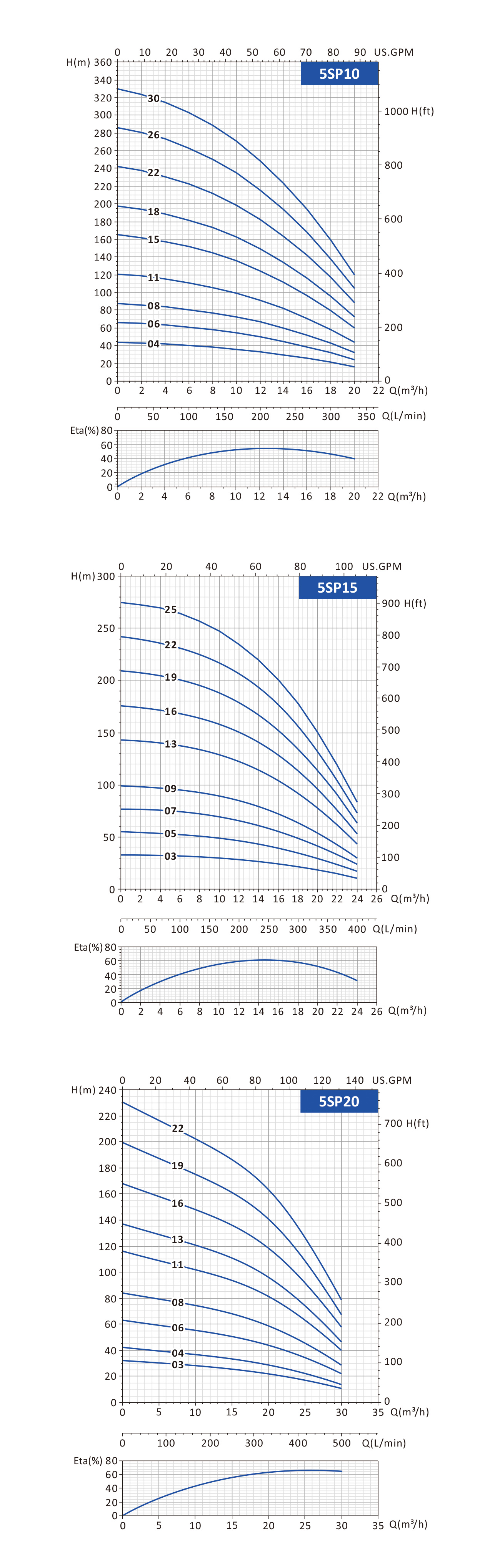

Performance Data -- 10m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	22	35.2	44	48.4	52.8	66	88
			m³/h	0	5	8	10	11	12	15	20
			L/min	0	83	133	167	183	200	250	333
	HP	kW	Total head in meters
5SP10-04	3	2.2	H (m)	44	41	38	36	35	33	28	16
5SP10-06	4	3		66	62	58	55	52	49	42	24
5SP10-08	5.5	4		88	82	77	73	70	66	56	32
5SP10-11	7.5	5.5		121	113	106	100	95	90	77	44
5SP10-15	10	7.5		165	155	144	137	130	123	105	60
5SP10-18	12.5	9.2		198	185	173	164	156	148	126	72
5SP10-22	15	11		242	227	211	200	190	180	154	88
5SP10-26	17.5	13		286	268	250	237	225	213	182	104
5SP10-30	20	15		330	309	288	273	260	246	210	120

Performance Data -- 15m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	44	52.8	61.6	66	74.8	88	110
			m³/h	0	10	12	14	15	17	20	25
			L/min	0	167	200	233	250	283	333	416
	HP	kW	Total head in meters
5SP15-03	3	2.2	H (m)	33	30	28	27	26	23	18	8
5SP15-05	4	3		55	50	46	44	43	38	30	13
5SP15-07	5.5	4		77	70	64	62	60	53	42	18
5SP15-09	7.5	5.5		99	90	73	80	77	68	54	23
5SP15-13	10	7.5		143	130	120	115	111	99	78	33
5SP15-16	12.5	9.2		176	160	147	140	136	122	96	40
5SP15-19	15	11		209	190	175	167	162	144	114	48
5SP15-22	17.5	13		242	220	202	192	187	167	132	55
5SP15-25	20	15		275	250	230	220	213	190	150	63

Performance Data -- 20m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	44	66	79.2	88	96.8	110	132
			m³/h	0	10	15	18	20	22	25	30
			L/min	0	167	250	300	333	366.7	416	500
	HP	kW	Total head in meters
5SP20-03	3	2.2	H (m)	32	28	26	24	23	21	17	11
5SP20-04	4	3		42	37	34	32	30	27	23	14
5SP20-06	5.5	4		63	55	52	48	45	41	35	22
5SP20-08	7.5	5.5		84	74	69	64	60	55	46	29
5SP20-11	10	7.5		116	101	95	88	83	76	64	40
5SP20-13	12.5	9.2		137	120	112	104	98	90	75	47
5SP20-16	15	11		168	147	138	128	120	110	93	58
5SP20-19	17.5	13		200	175	163	152	143	130	110	68
5SP20-22	20	15		231	202	189	176	165	151	128	79

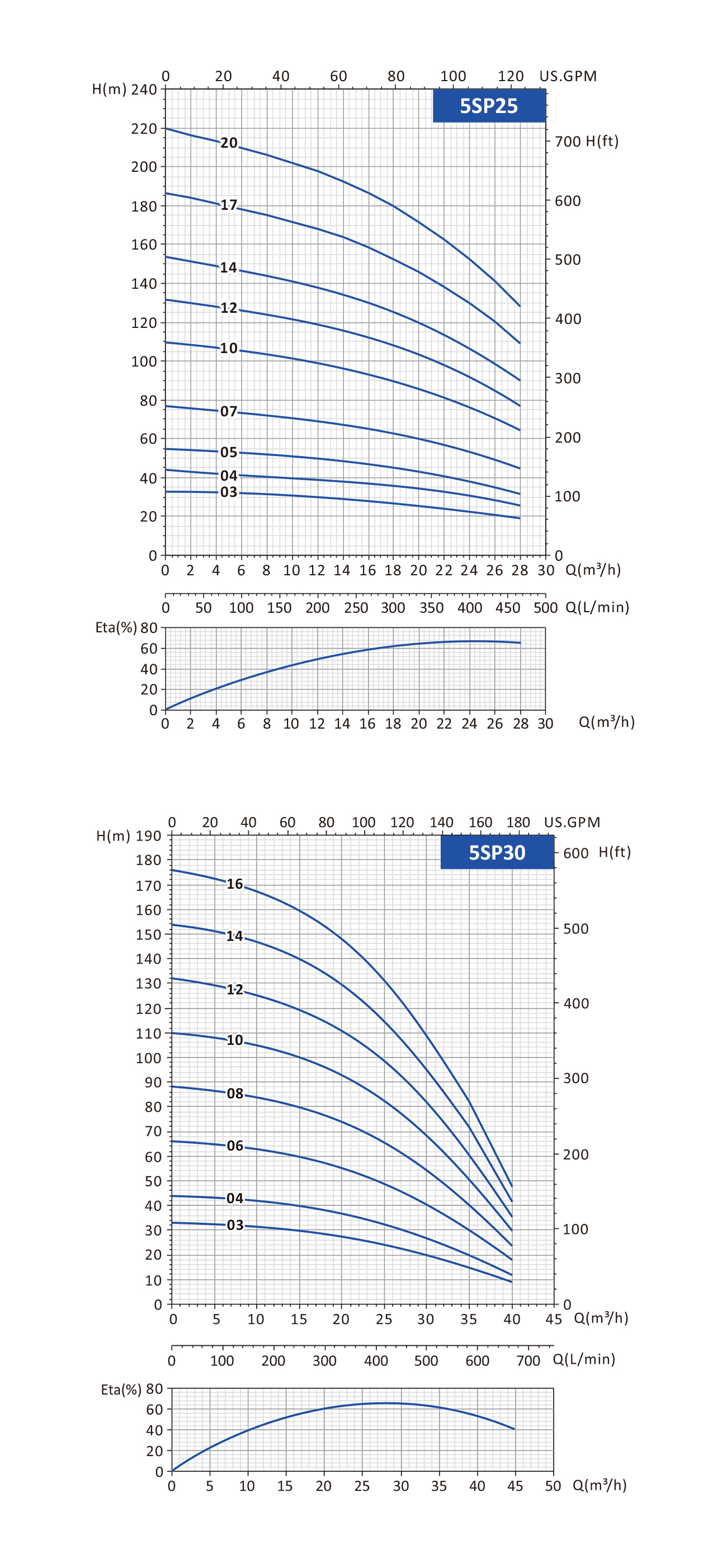

Performance Data -- 25m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	66	88	97	110	123	132	154
			m³/h	0	15	20	22	25	28	30	35
			L/min	0	250	333	367	416	467	500	583
	HP	kW	Total head in meters
5SP25-03	3	2.2	H (m)	33	28	26	25	22	18	16	11
5SP25-04	4	3		44	37	35	33	30	25	22	14
5SP25-05	5.5	4		55	47	44	42	37	31	27	18
5SP25-07	7.5	5.5		77	65	62	58	52	44	38	25
5SP25-10	10	7.5		110	93	88	84	75	63	54	36
5SP25-12	12.5	9.2		132	112	106	100	90	75	65	43
5SP25-14	15	11		154	130	123	117	105	88	76	50
5SP25-17	17.5	13		187	158	150	143	127	107	92	61
5SP25-20	20	15		220	186	176	168	150	125	108	72

Performance Data -- 30m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	66	88	110	132	141	154	176
			m³/h	0	15	20	25	30	32	35	40
			L/min	0	250	333	416	500	533	583	666
	HP	kW	Total head in meters
5SP30-03	4	3	H (m)	33	30	28	24	21	19	15	9
5SP30-04	5.5	4		44	40	37	32	28	25	20	12
5SP30-06	7.5	5.5		66	60	55	49	42	37	30	18
5SP30-08	10	7.5		88	80	74	65	56	50	40	24
5SP30-10	12.5	9.2		110	100	93	82	70	62	50	30
5SP30-12	15	11		132	120	111	98	84	75	60	36
5SP30-14	17.5	13		154	140	130	114	98	87	70	42
5SP30-16	20	15		176	160	148	131	112	100	80	48

MASTRA pump full stainless steel submersible pump submersible deep well pump deep well water pump best submersible well pump submersible well pump submersible pump manufacturer stainless steel submersible water pump Best Submersible Deep Well Pump Best Submersible Pump Manufacturer

Related Products

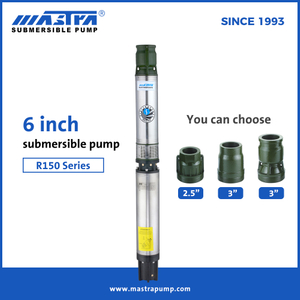

MASTRA 6 inch Stainless Steel submersible pump manufacturer R150 Series Deep Well Submersible Pump

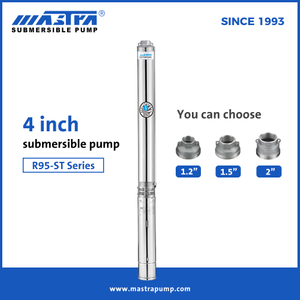

MASTRA 4 inch Deep Well Pump R95-ST Series Submersible borehole Pump

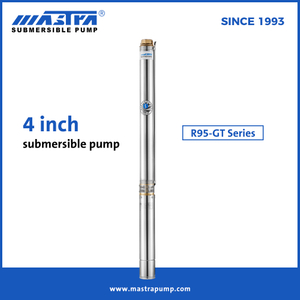

MASTRA 4 inch High Efficiency Deep Well Pump R95-GT Series Submersible Well Pump

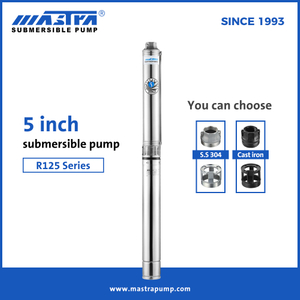

MASTRA 5 inch Submersble Well Pump Supplier R125 Series Stainless Steel Submersible deep Well Pump

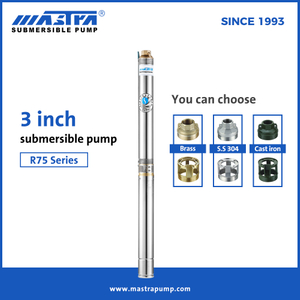

MASTRA 3 inch Submersible Well Pump R75 Series Deep Well Pump

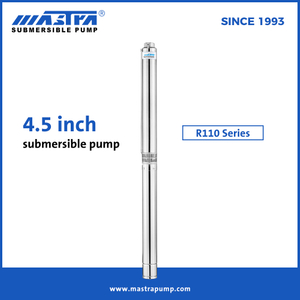

MASTRA 4.5 inch 316L anti-corrosion full stainless steel submersible water pump R110 Mine deep well submersible pump

(Unit of Length: mm)
Model	H1	H2	H3	ΦA	ΦB	Φmax
5SP10-04	410	529	939	G2 1/2"	114	125
5SP10-06	506	559	1065
5SP10-08	602	599	1201
5SP10-11	746	649	1395
5SP10-15	938	709	1647
5SP10-18	1082	779	1861
5SP10-22	1274	829	2103
5SP10-26	1466	879	2345
5SP10-30	1658	929	2587

5SP15-03	362	529	891	G2 1/2"	114	125
5SP15-05	458	559	1017
5SP15-07	554	599	1153
5SP15-09	650	649	1299
5SP15-13	842	709	1551
5SP15-16	986	779	1765
5SP15-19	1130	829	1959
5SP15-22	1274	879	2153
5SP15-25	1418	929	2347

5SP20-03	396	529	925	G2 1/2"	114	125
5SP20-04	452	559	1011
5SP20-06	564	599	1163
5SP20-08	676	649	1325
5SP20-11	844	709	1553
5SP20-13	956	779	1735
5SP20-16	1124	829	1953
5SP20-19	1292	879	2171
5SP20-22	1460	929	2389

5SP25-03	396	529	925	G2 1/2"	114	125
5SP25-04	452	559	1011
5SP25-05	508	599	1107
5SP25-07	620	649	1269
5SP25-10	788	709	1497
5SP25-12	906	779	1685
5SP25-14	1012	829	1841
5SP25-17	1180	879	2059
5SP25-20	1348	929	2277

5SP30-03	396	559	955	G2 1/2"	114	125
5SP30-04	452	599	1051
5SP30-06	564	649	1213
5SP30-08	676	709	1385
5SP30-10	788	779	1567
5SP30-12	900	829	1729
5SP30-14	1012	879	1891
5SP30-16	1124	929	2053
