MASTRA 3 inch Submersible Well Pump R75 Series Deep Well Pump

Share to:

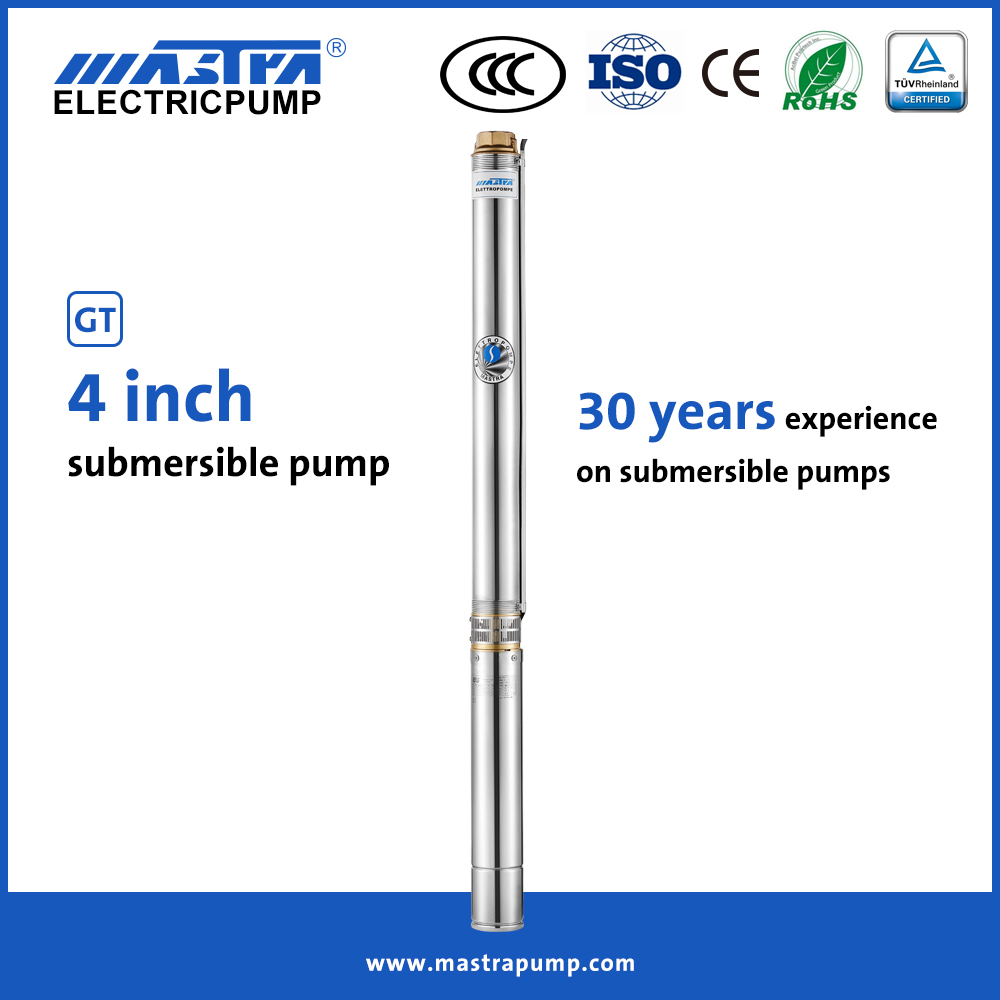

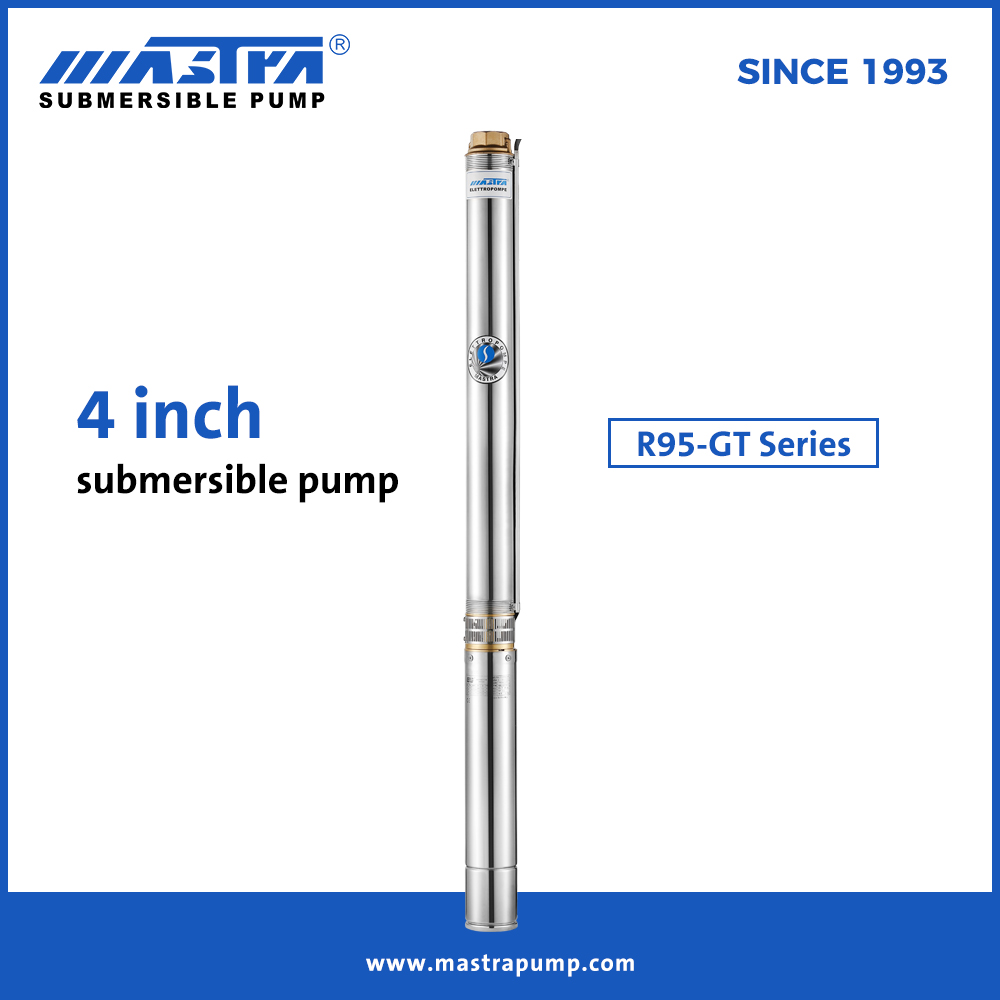

MASTRA 4 inch High Efficiency Deep Well Pump R95-GT Series Submersible Well Pump

Name: MASTRA 4 inch High Efficiency Deep Well Pump R95-GT Series Submersible Well Pump
Brand: MASTRA
Rating: 5.0 (32 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R95-GT
Brand:
MASTRA
Size:
4 inch
Impeller Material:
Plastic

Feature:

1. Water-lubricated wear-resisting rubber bearing can effectively reduce vibration, wear-resistant and durability.

2. POM impeller, wear - resistant.

3. Multi-stage floating impeller design, effectively reduce the impact of axial force on the impeller, strong ability to cross sand.

4. Extend the service life of the motor.

Application:

1. Lifting clean and clear water in deep wells, rivers, reservoirs.

2. Providing production water for factories, railways and construction sites.

3. Agricultural irrigation and livestock water.

4. Household water and garden irrigation.

Performance Data -- 4m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	7.9	13.2	15.9	17.6	21.1	23.8	26.4
			m³/h	0	1.8	3	3.6	4	4.8	5.4	6
			L/min	0	30	50	60	66.7	80	90	100
	HP	kW	Total head in meters
R95-GT4-05	0.5	0.37	H (m)	38	35	32	30	28	24	21	16
R95-GT4-06	0.5	0.37		45	42	38	36	34	29	25	19
R95-GT4-08	0.75	0.55		60	55	50	47	44	38	32	26
R95-GT4-09	1	075		68	63	57	54	51	44	37	29
R95-GT4-10	1	0.75		74	69	63	59	55	47	39	40
R95-GT4-12	1.25	0.92		90	84	77	72	68	58	49	39
R95-GT4-13	1.5	1.1		98	91	83	78	73	63	54	42
R95-GT4-14	1.5	1.1		107	99	91	85	81	70	59	47
R95-GT4-16	1.75	1.3		120	112	102	96	90	78	66	52
R95-GT4-17	2	1.5		128	119	108	102	96	83	70	55
R95-GT4-18	2	1.5		136	124	114	106	101	87	74	58
R95-GT4-21	2.5	1.8		158	146	134	125	119	102	86	68
R95-GT4-24	3	2.2		181	168	155	146	139	120	102	81
R95-GT4-28	3.5	2.6		210	195	179	167	158	136	115	91
R95-GT4-32	4	3		240	225	207	194	184	159	136	108
R95-GT4-40	5.5	4		299	279	255	239	226	194	166	132
R95-GT4-50	7.5	5.5		376	349	319	299	283	243	206	162

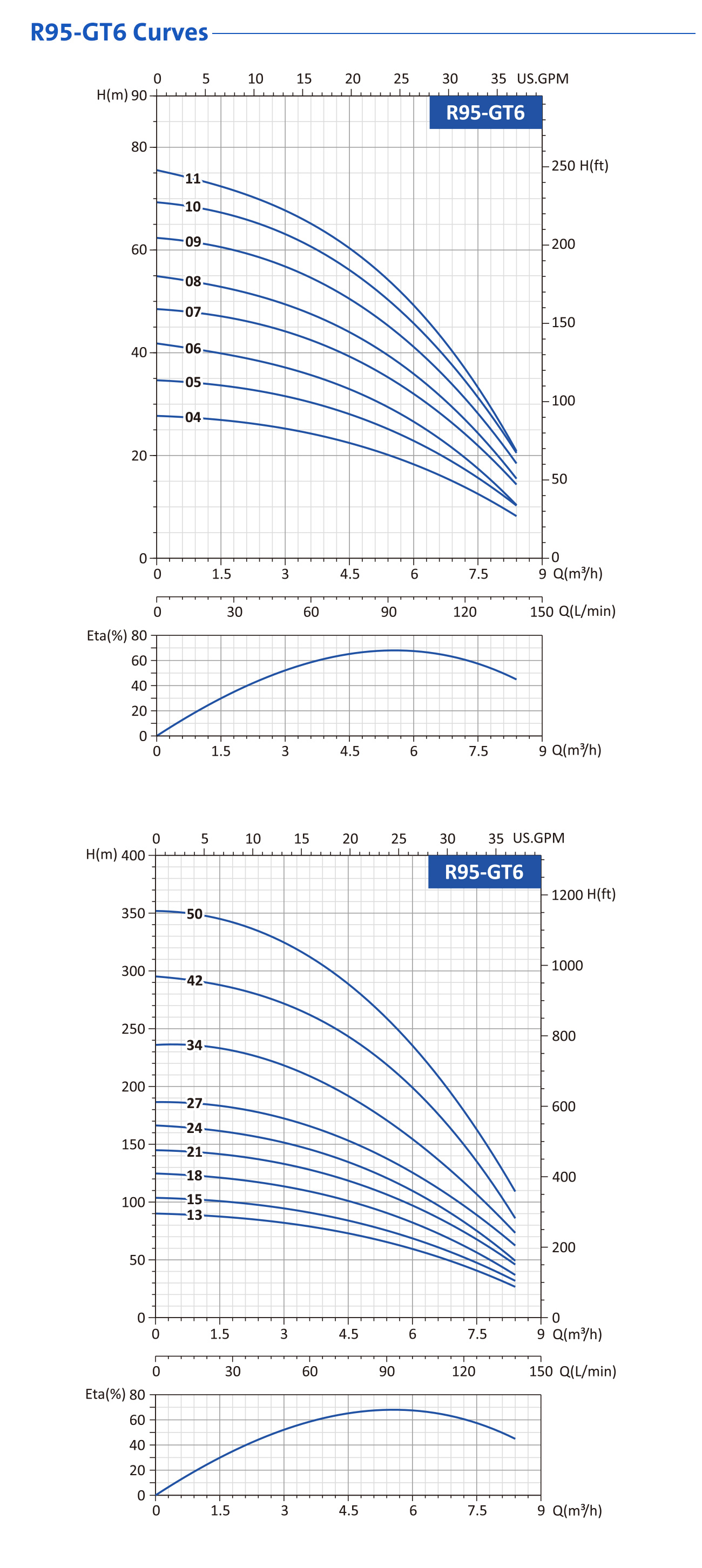

Performance Data -- 6m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	10.6	21.1	23.8	26.4	29.1	31.7	37
			m³/h	0	2.4	4.8	5.4	6	6.6	7.2	8.4
			L/min	0	40	80	90	100	110	120	140
	HP	kW	Total head in meters
R95-GT6-04	0.5	0.37	H (m)	28	26	22	20	18	16	14	8
R95-GT6-05	0.5	0.37		35	33	27	25	23	20	17	10
R95-GT6-06	0.75	0.55		42	38	32	29	27	23	20	10
R95-GT6-07	1	0.75		49	46	38	35	32	28	24	14
R95-GT6-08	1	0.75		55	51	43	40	36	32	27	15
R95-GT6-09	1.25	0.92		62	59	49	45	41	36	31	18
R95-GT6-10	1.5	1.1		69	65	54	50	46	40	35	21
R95-GT6-11	1.5	1.1		76	70	58	54	49	43	37	21
R95-GT6-13	1.75	1.3		90	85	71	65	59	53	45	27
R95-GT6-15	2	1.5		104	98	81	75	69	61	52	32
R95-GT6-18	2.5	1.8		125	117	98	91	82	73	62	37
R95-GT6-21	3	2.2		145	137	115	107	97	86	74	46
R95-GT6-24	3.5	2.6		166	156	130	121	110	97	83	49
R95-GT6-27	4	3		187	178	148	138	126	112	97	62
R95-GT6-34	5.5	4		236	226	185	171	155	137	117	73
R95-GT6-42	7.5	5.5		295	279	236	219	199	176	150	86
R95-GT6-50	10	7.5		352	335	280	259	235	209	179	109

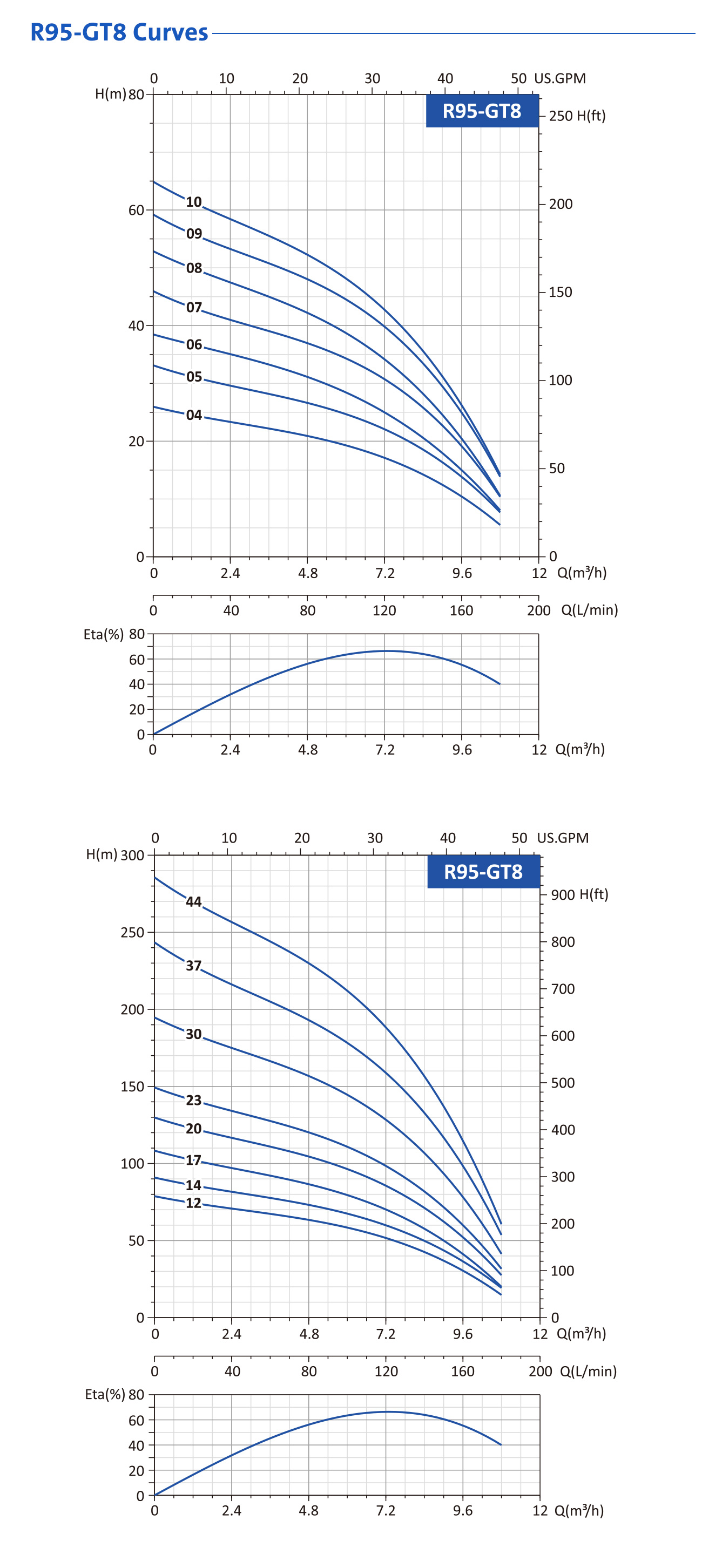

Performance Data -- 8m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	15.9	21.1	26.4	31.7	35.2	42.3	47.6
			m³/h	0	3.6	4.8	6	7.2	8	9.6	10.8
			L/min	0	60	80	100	120	133.3	160	180
	HP	kW	Total head in meters
R95-GT8-04	0.5	0.37	H (m)	26	22	21	19	17	15	10	6
R95-GT8-05	0.75	0.55		33	28	27	25	22	20	14	8
R95-GT8-06	1	0.75		38	33	31	28	25	22	15	8
R95-GT8-07	1.25	0.92		46	39	37	34	31	28	19	11
R95-GT8-08	1.5	1.1		53	45	42	39	34	30	20	11
R95-GT8-09	1.5	1.1		59	51	48	44	40	36	25	15
R95-GT8-10	1.75	1.3		65	55	52	48	43	38	26	15
R95-GT8-12	2	1.5		79	67	63	58	52	46	30	15
R95-GT8-14	2.5	1.8		91	78	73	67	60	54	37	19
R95-GT8-17	3	2.2		108	92	87	80	70	62	41	20
R95-GT8-20	3.5	2.6		130	111	105	96	86	76	52	28
R95-GT8-23	4	3		149	128	120	111	98	88	60	32
R95-GT8-30	5.5	4		195	166	157	145	128	115	78	41
R95-GT8-37	7.5	5.5		243	205	193	178	159	142	98	54
R95-GT8-44	10	7.5		286	244	230	212	188	168	115	61

Performance Data -- 10m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	23.8	21.7	39.6	44	47.6	55.5	63.4
			m³/h	0	5.4	7.2	9	10	10.8	12.6	14.4
			L/min	0	90	120	150	167	180	210	240
	HP	kW	Total head in meters
R95-GT10-04	1	0.75	H (m)	28	25	24	22	20	18	14	7
R95-GT10-05	1	0.75		33	29	27	24	22	20	14	7
R95-GT10-06	1.25	0.92		41	37	35	32	30	27	21	11
R95-GT10-07	1.5	1.1		47	42	39	35	32	29	21	11
R95-GT10-08	1.75	1.3		54	48	46	41	38	35	25	13
R95-GT10-09	2	1.5		61	53	50	45	41	38	27	13
R95-GT10-11	2.5	1.8		75	67	63	57	52	48	35	18
R95-GT10-12	3	2.2		81	73	68	62	57	52	38	20
R95-GT10-13	3	2.2		90	81	77	70	65	60	45	24
R95-GT10-15	3.5	2.6		102	92	87	79	73	68	52	30
R95-GT10-17	4	3		114	102	96	86	79	73	53	30
R95-GT10-23	5.5	4		152	135	126	113	103	94	67	31
R95-GT10-29	7.5	5.5		194	173	162	145	133	121	88	42
R95-GT10-35	10	7.5		237	212	199	180	166	152	111	57

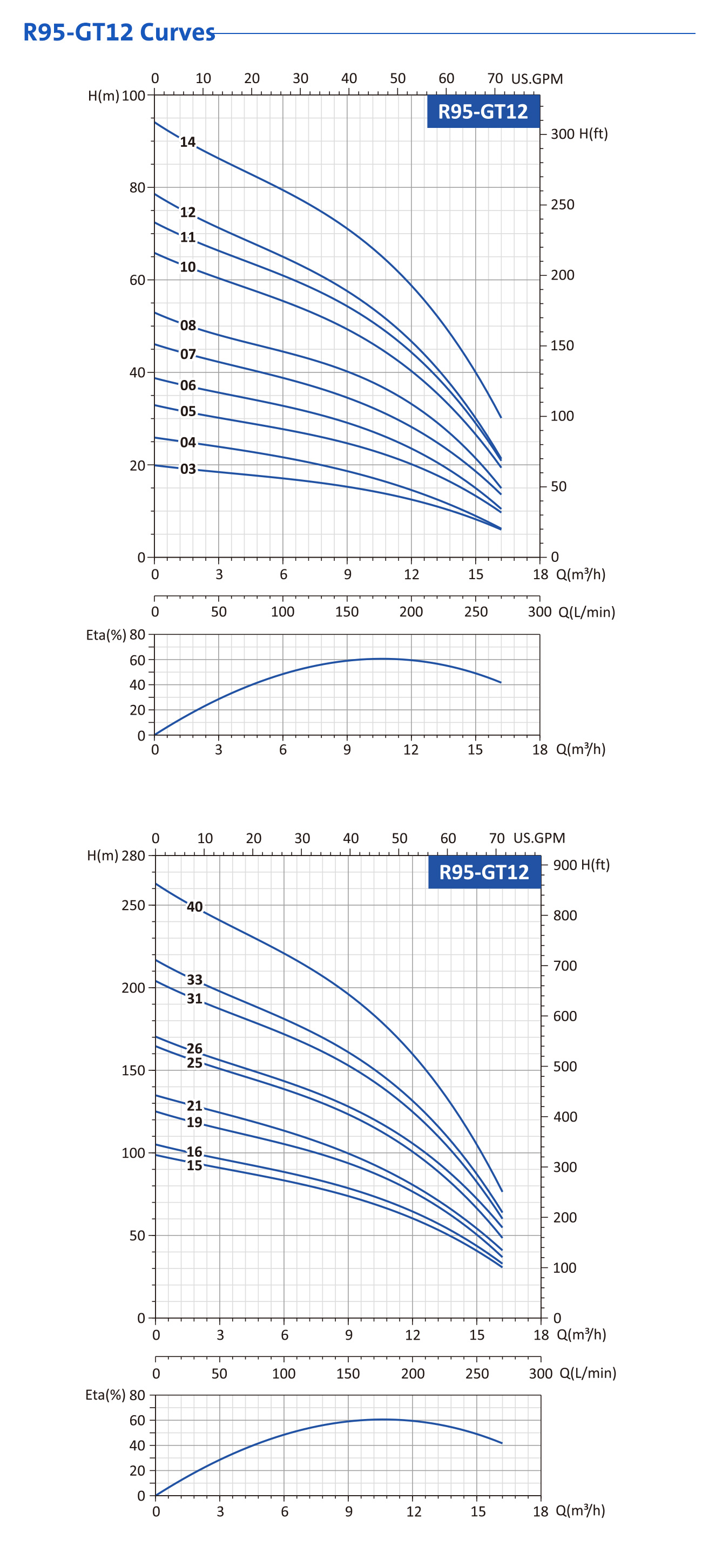

Performance Data -- 12m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	23.8	21.7	39.6	47.6	52.8	63.4	71.3
			m³/h	0	5.4	7.2	9	10.8	12	14.4	16.2
			L/min	0	90	120	150	180	200	240	270
	HP	kW	Total head in meters
R95-GT12-03	1	0.75	H (m)	20	17	16	15	14	13	9	6
R95-GT12-04	1	0.75		26	22	21	19	17	15	10	6
R95-GT12-05	1.25	0.92		33	28	27	25	22	20	15	10
R95-GT12-06	1.5	1.1		39	33	31	29	26	24	17	10
R95-GT12-07	1.75	1.3		46	40	37	35	31	28	21	14
R95-GT12-08	2	1.5		53	45	43	40	36	33	24	15
R95-GT12-10	2.5	1.8		66	56	53	49	44	40	30	19
R95-GT12-11	3	2.2		72	62	59	54	49	44	33	21
R95-GT12-12	3	2.2		79	66	62	58	52	47	33	21
R95-GT12-14	3.5	2.6		94	81	76	71	64	59	45	31
R95-GT12-15	4	3		99	85	80	74	67	60	45	31
R95-GT12-16	4	3		105	90	85	79	71	65	48	33
R95-GT12-19	5.5	4		125	107	101	94	84	77	57	37
R95-GT12-21	5.5	4		135	116	108	100	89	81	60	41
R95-GT12-25	7.5	5.5		165	141	133	123	111	101	74	48
R95-GT12-26	7.5	5.5		170	146	138	128	116	106	80	55
R95-GT12-27	7.5	5.5		177	152	142	131	117	106	89	54
R95-GT12-30	10	7.5		199	171	161	150	135	123	91	59
R95-GT12-31	10	7.5		204	175	165	153	138	125	92	60
R95-GT12-33	10	7.5		217	185	174	161	145	132	98	64
R95-GT12-40	12.5	9.2		263	225	212	196	176	160	118	76

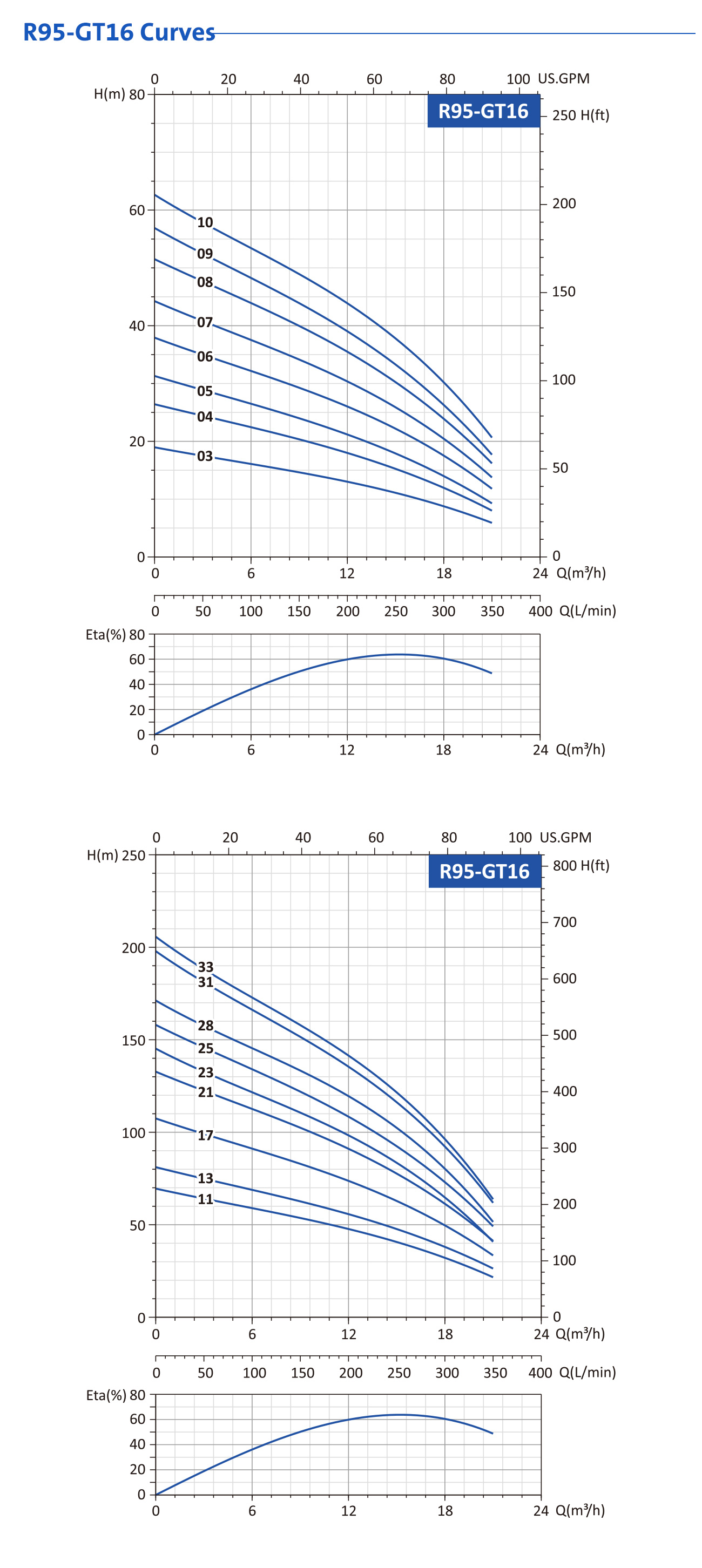

Performance Data -- 16m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	26.4	39.6	52.8	66	70.4	79.3	92.5
			m³/h	0	6	9	12	15	16	18	21
			L/min	0	100	150	200	250	267	300	350
	HP	kW	Total head in meters
R95-GT16-03	1	0.75	H (m)	19	16	15	13	11	10	9	6
R95-GT16-04	1.25	0.92		26	22	20	18	15	14	12	8
R95-GT16-05	1.5	1.1		31	27	24	21	18	17	14	9
R95-GT16-06	1.75	1.3		38	32	29	26	22	21	18	12
R95-GT16-07	2	1.5		44	38	34	30	26	24	20	14
R95-GT16-08	2.5	1.8		52	44	40	35	30	28	24	16
R95-GT16-09	3	2.2		57	48	44	39	33	31	26	18
R95-GT16-10	3	2.2		63	53	49	44	38	35	30	21
R95-GT16-11	3.5	2.6		70	59	54	48	41	38	32	22
R95-GT16-13	4	3		81	69	63	56	48	45	38	26
R95-GT16-17	5.5	4		107	91	83	74	63	59	50	33
R95-GT16-21	7.5	5.5		133	113	102	91	78	73	61	41
R95-GT16-23	7.5	5.5		145	122	111	98	83	78	65	41
R95-GT16-25	10	7.5		158	134	122	108	92	86	73	49
R95-GT16-28	10	7.5		171	145	133	120	102	96	80	52
R95-GT16-31	12.5	9.2		198	166	152	135	116	109	92	62
R95-GT16-33	12.5	9.2		206	173	158	141	122	114	96	64

(Unit of Length: mm)
Model	H1	Three Phase		Single Phase		ΦA	ΦB	Φmax
Model	H1	H2	H3	H2	H3	ΦA	ΦB	Φmax
R95-GT4-05	408	351	759	316	724	G2"	95	100
R95-GT4-06	465	351	816	316	781
R95-GT4-08	522	366	888	336	858
R95-GT4-09	578	386	964	361	939
R95-GT4-10	635	386	1021	361	996
R95-GT4-12	692	396	1088	376	1068
R95-GT4-13	748	406	1154	391	1139
R95-GT4-14	879	406	1285	391	1270
R95-GT4-16	964	426	1390	411	1375
R95-GT4-17	1078	441	1519	435	1513
R95-GT4-18	1191	441	1632	435	1626
R95-GT4-21	1304	471	1775	455	1759
R95-GT4-24	1418	501	1919	480	1898
R95-GT4-28	1605	531	2136	510	2115
R95-GT4-32	1747	561	2308	519	2266
R95-GT4-40	1917	601	2518	646	2563
R95-GT4-50	2133	721	2854	696	2829

R95-GT6-04	376	351	727	316	692	G2"	95	100
R95-GT6-05	411	351	762	316	727
R95-GT6-06	446	366	812	336	782
R95-GT6-07	480	386	866	361	841
R95-GT6-08	515	386	901	361	876
R95-GT6-09	549	386	945	376	925
R95-GT6-10	584	406	990	391	975
R95-GT6-11	618	406	1024	391	1009
R95-GT6-13	733	426	1159	411	1144
R95-GT6-15	802	441	1243	435	1237
R95-GT6-18	906	471	1377	455	1361
R95-GT6-21	1009	501	1510	480	1489
R95-GT6-24	1113	531	1644	510	1623
R95-GT6-27	1216	561	1777	519	1735
R95-GT6-34	1504	601	2105	646	2150
R95-GT6-42	1780	721	2501	696	2476
R95-GT6-50	2102	841	2943	-	-

R95-GT8-04	397	351	748	316	713	G2"	95	100
R95-GT8-05	433	366	799	336	769
R95-GT8-06	469	386	855	361	830
R95-GT8-07	505	396	901	376	881
R95-GT8-08	542	406	948	391	933
R95-GT8-09	578	406	984	391	969
R95-GT8-10	615	426	1041	411	1026
R95-GT8-12	687	441	1128	435	1122
R95-GT8-14	760	471	1231	455	1215
R95-GT8-17	915	501	1416	480	1395
R95-GT8-20	1025	531	1556	510	1535
R95-GT8-23	1134	561	1695	519	1653
R95-GT8-30	1389	601	1990	646	2035
R95-GT8-37	1690	721	2411	696	2386
R95-GT8-44	1944	841	2785	-	-

(Unit of Length: mm)
Model	H1	Three Phase		Single Phase		ΦA	ΦB	Φmax
Model	H1	H2	H3	H2	H3	ΦA	ΦB	Φmax
R95-GT10-04	414	386	800	361	775	G2"	95	100
R95-GT10-05	455	386	841	361	816
R95-GT10-06	496	396	892	376	872
R95-GT10-07	537	406	943	391	928
R95-GT10-08	578	426	1004	411	989
R95-GT10-09	619	441	1060	435	1054
R95-GT10-11	700	471	1171	455	1155
R95-GT10-12	739	501	1240	480	1219
R95-GT10-13	779	501	1280	480	1259
R95-GT10-15	860	531	1391	510	1370
R95-GT10-17	986	561	1547	519	1505
R95-GT10-23	1229	601	1830	646	1875
R95-GT10-29	1473	721	2194	696	2169
R95-GT10-35	1774	841	2615	-	-

R95-GT12-03	394	386	780	361	755	G2"	95	100
R95-GT12-04	442	386	828	361	803
R95-GT12-05	490	396	886	376	866
R95-GT12-06	538	406	944	391	929
R95-GT12-07	586	426	1012	411	997
R95-GT12-08	634	441	1075	435	1069
R95-GT12-10	729	471	1200	455	1184
R95-GT12-11	777	501	1278	480	1257
R95-GT12-12	822	501	1323	480	1302
R95-GT12-14	918	531	1449	510	1428
R95-GT12-15	966	561	1527	519	1485
R95-GT12-16	1057	561	1618	519	1576
R95-GT12-19	1201	601	1802	646	1847
R95-GT12-21	1296	601	1897	646	1942
R95-GT12-25	1486	721	2207	696	2182
R95-GT12-26	1533	721	2254	696	2229
R95-GT12-27	1627	721	2348	696	2323
R95-GT12-30	1771	841	2612	-	-
R95-GT12-31	1821	841	2662	-	-
R95-GT12-33	1961	841	2802	-	-
R95-GT12-40	2292	841	3173	-	-

R95-GT16-03	455	386	841	361	816	G2"	95	100
R95-GT16-04	524	396	920	376	900
R95-GT16-05	592	406	998	391	983
R95-GT16-06	660	426	1086	411	1071
R95-GT16-07	729	441	1170	435	1164
R95-GT16-08	797	471	1268	455	1252
R95-GT16-09	866	501	1367	480	1346
R95-GT16-10	980	501	1481	480	1460
R95-GT16-11	1048	531	1579	510	1558
R95-GT16-13	1185	561	1746	519	1704
R95-GT16-17	1458	601	2059	646	2104
R95-GT16-21	1777	721	2498	696	2473
R95-GT16-23	1914	721	2635	696	2610
R95-GT16-25	2051	841	2892	-	-
R95-GT16-28	2256	841	3097	-	-
R95-GT16-31	2460	841	3341	-	-
R95-GT16-33	2643	841	3524	-	-

Mastra pump 4 inch submersible well pump 4 inch deep well pump best submersible well pump Submersible pump stainless steel submersible pump best submersible water pump best Submersible well Pump supplier deep well submersible pump Best Submersible well Pump Manufacturer
