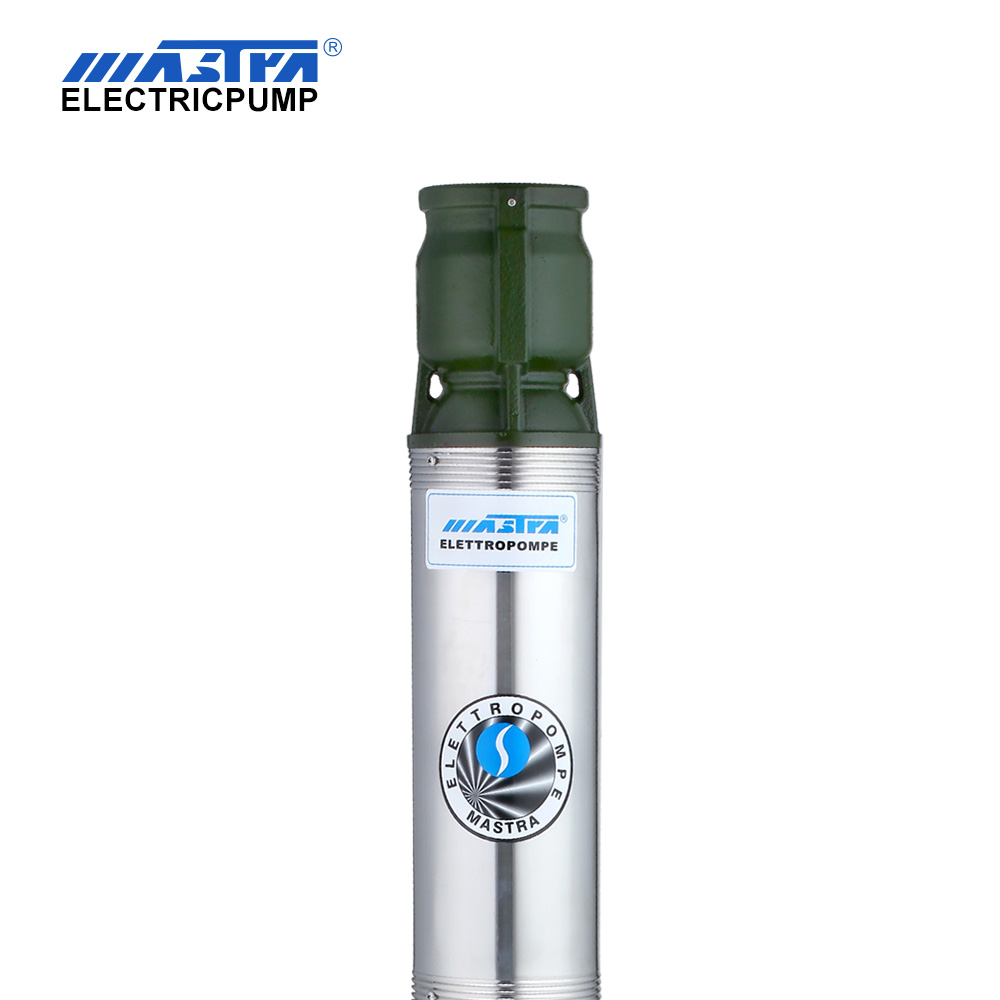

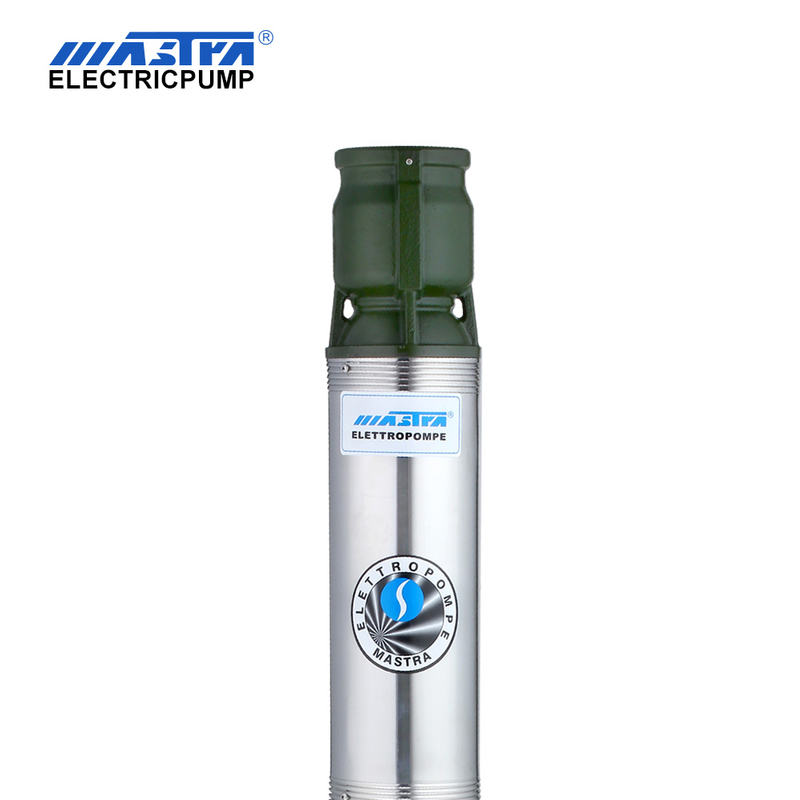

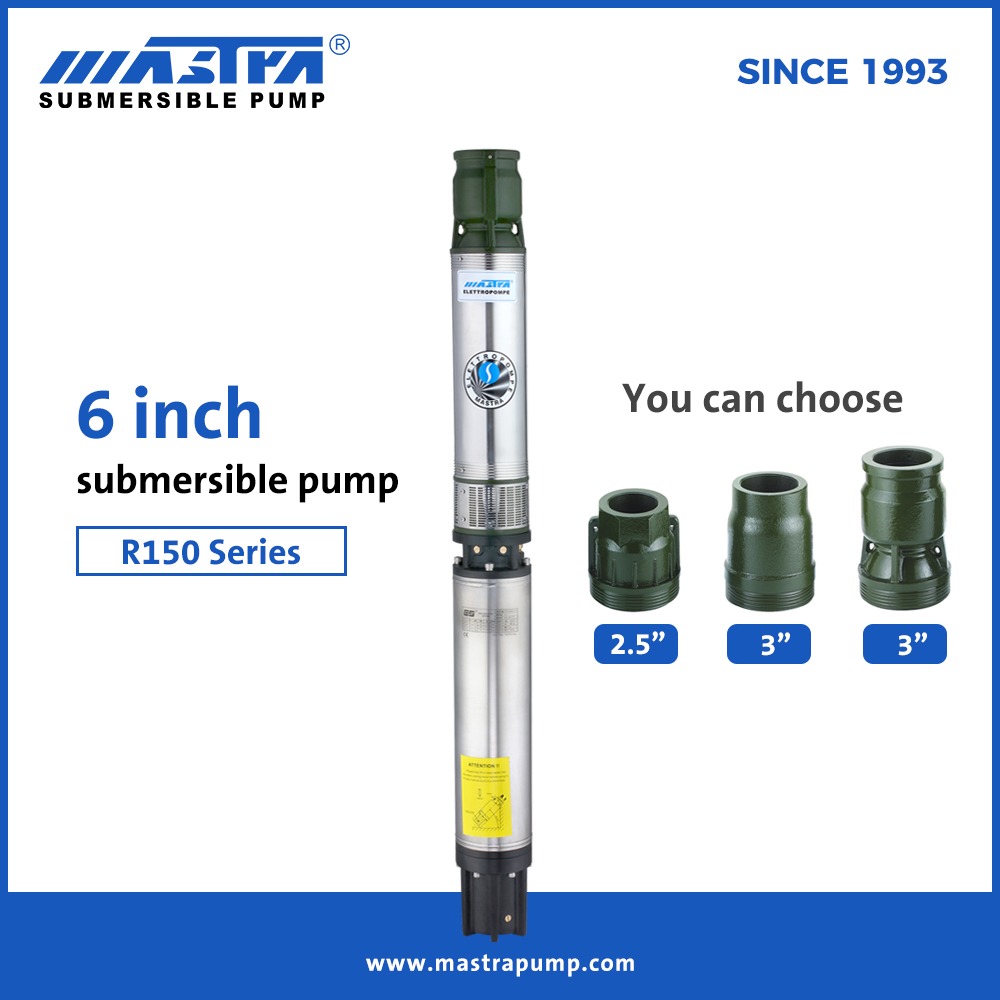

MASTRA 6 inch Stainless Steel submersible pump manufacturer R150 Series Deep Well Submersible Pump

Name: MASTRA 6 inch Stainless Steel submersible pump manufacturer R150 Series Deep Well Submersible Pump
Brand: MASTRA
Rating: 5.0 (43 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R150
Brand:
MASTRA

Our submersible pump adopts advanced manufacturing technology with high‑performance components. The impellers and diffusers are constructed from U.S. patented high‑tech composite plastic and high‑grade stainless steel, delivering outstanding high strength, wear resistance, and sand‑impact resistance for a much longer service life.

Feature:

1. Built with 304 stainless steel pump pipe, PPO impeller, and PPO diffuser, ensuring an attractive appearance and superior corrosion resistance even in harsh water conditions.

2. Equipped with a specially designed thrust bearing to effectively protect the pump from damage during startup, operation, and transportation.

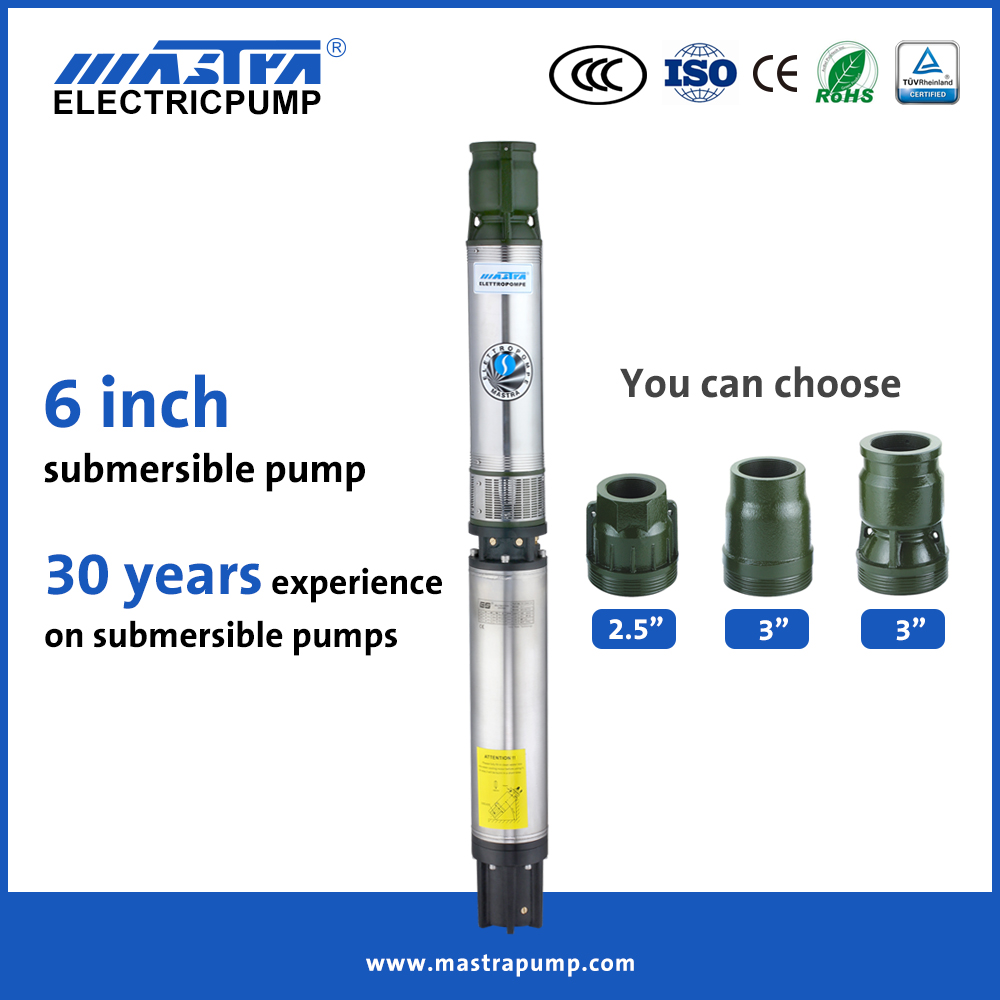

3. Flexible pump head material options: 304 stainless steel or anti‑rust treated cast iron to meet different application requirements.

Parts		Material
Delivery door		Cast iron/AISI 304
Suction support		Cast iron/AISI 304
Check value		AISI 304
Shaft support		Plastic(PPO)
Impeller		Plastic(PPO)
Diffuser		Plastic(PPO)
Pump bearing		Nitrile rubber(NBR)
Pump body		AISI 304
Cable cover		AISI 304
Filter		AISI 304
Shaft		AISI 304
Shaft coupling		AISI 304
Bushing		AISI 304

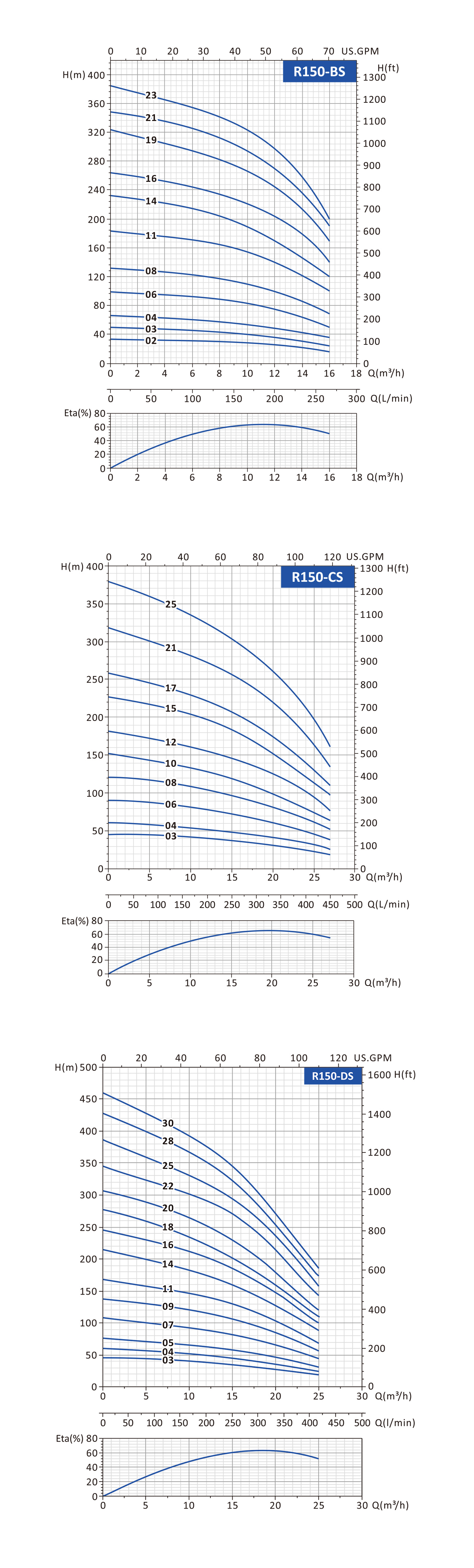

Performance Data -- 12m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	26	35	44	53	62	70	79
			m³/h	0	6	8	10	12	14	16	18
			L/min	0	100	133	167	200	233	267	300
	HP	kW	Total head in meters
R150-BS-02	2	1.5	H (m)	33	31	30	27	25	21	16	9
R150-BS-03	3	2.2		50	45	44	41	38	31	24	10
R150-BS-04	4	3		66	61	59	56	51	43	36	20
R150-BS-06	5.5	4		99	92	89	84	76	65	50	32
R150-BS-08	7.5	5.5		132	122	116	110	102	88	68	42
R150-BS-11	10	7.5		183	171	164	155	140	122	100	68
R150-BS-14	12.5	9.2		232	217	200	194	170	151	120	80
R150-BS-16	15	11		264	247	230	224	200	177	140	98
R150-BS-19	17.5	13		324	296	283	265	243	210	169	116
R150-BS-21	20	15		348	328	313	290	268	236	190	120
R150-BS-23	25	18.5		384	359	343	321	293	250	200	130

Performance Data -- 16m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	26	40	53	66	79	93	106
			m³/h	0	6	9	12	15	18	21	24
			L/min	0	100	150	200	250	300	350	400
	HP	kW	Total head in meters
R150-CS-03	4	3	H (m)	45	43	41	39	37	33	30	25
R150-CS-04	5.5	4		61	57	55	52	49	45	39	33
R150-CS-06	7.5	5.5		91	86	82	78	73	67	59	50
R150-CS-08	10	7.5		121	114	110	104	98	89	79	66
R150-CS-10	12.5	9.2		152	143	137	130	122	111	99	83
R150-CS-12	15	11		182	171	165	156	146	134	118	100
R150-CS-15	17.5	13		227	214	206	196	183	167	148	125
R150-CS-17	20	15		258	243	233	222	207	189	168	141
R150-CS-21	25	18.5		318	300	288	274	256	234	207	174
R150-CS-25	30	22		379	357	343	326	305	279	247	208

Performance Data -- 20m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	53	62	70	79	88	97	110
			m³/h	0	12	14	16	18	20	22	25
			L/min	0	200	233	267	300	333	367	417
	HP	kW	Total head in meters
R150-DS-03	4	3	H (m)	46	39	37	34	31	28	25	19
R150-DS-04	5.5	4		61	52	49	45	42	37	32	25
R150-DS-05	5.5	4		77	64	61	57	51	46	41	31
R150-DS-07	7.5	5.5		108	90	86	79	73	65	58	44
R150-DS-09	10	7.5		138	116	111	101	96	84	76	56
R150-DS-11	12.5	9.2		168	142	136	124	113	102	90	69
R150-DS-14	15	11		215	180	171	150	145	130	113	88
R150-DS-16	17.5	13		246	206	195	180	165	149	130	100
R150-DS-18	20	15		277	232	225	202	193	170	152	113
R150-DS-20	25	18.5		307	256	240	215	203	181	156	120
R150-DS-22	25	18.5		345	295	282	262	241	216	189	143
R150-DS-25	30	22		386	320	303	281	265	232	208	158
R150-DS-28	35	26		428	358	336	301	291	255	221	174
R150-DS-30	40	30		459	384	360	322	312	273	237	186

Performance Data -- 24m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	53	79	93	106	119	132	159
			m³/h	0	12	18	21	24	27	30	36
			L/min	0	200	300	350	400	450	500	600
	HP	kW	Total head in meters
R150-FS-02	4	3	H (m)	33	29	27	25	24	22	20	17
R150-FS-03	5.5	4		49	44	40	38	35	33	30	26
R150-FS-04	7.5	5.5		66	58	53	50	47	44	40	35
R150-FS-06	10	7.5		99	87	80	76	71	66	59	52
R150-FS-07	12.5	9.2		115	102	93	88	83	76	69	61
R150-FS-08	15	11		132	116	107	101	95	87	79	70
R150-FS-10	17.5	13		165	145	133	126	118	109	99	87
R150-FS-11	20	15		181	160	147	139	130	120	109	96
R150-FS-14	25	18.5		231	203	187	177	166	153	138	122
R150-FS-17	30	22		280	247	227	215	201	186	168	148
R150-FS-20	35	26		330	290	266	252	237	218	198	174
R150-FS-22	40	30		363	319	293	278	260	240	217	191

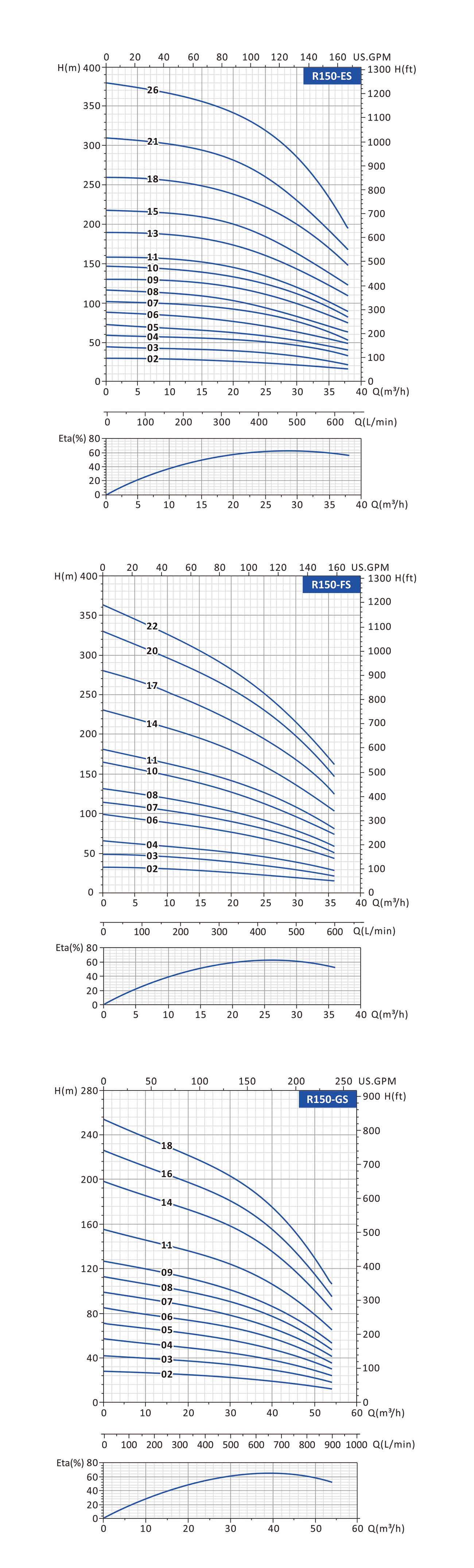

Performance Data -- 32m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	44	66	88	114	141	154	167
			m³/h	0	10	15	20	26	32	35	38
			L/min	0	167	250	333	433	533	583	633
	HP	kW	Total head in meters
R150-ES-02	4	3	H (m)	30	28	27	26	24	20	18	16
R150-ES-03	5.5	4		44	42	41	40	36	31	27	21
R150-ES-04	7.5	5.5		59	56	55	53	48	42	39	33
R150-ES-05	10	7.5		72	71	69	65	59	51	45	40
R150-ES-06	10	7.5		88	86	84	78	71	60	54	48
R150-ES-07	12.5	9.2		102	99	97	92	84	71	64	53
R150-ES-08	15	11		116	115	112	105	95	84	71	63
R150-ES-09	17.5	13		130	129	126	120	109	98	85	75
R150-ES-10	20	15		147	144	141	131	120	108	95	82
R150-ES-11	25	18.5		158	157	153	144	132	115	102	89
R150-ES-13	25	18.5		190	185	181	175	158	140	123	109
R150-ES-15	30	22		218	215	210	200	183	153	138	123
R150-ES-18	35	26		260	257	251	240	220	185	170	148
R150-ES-21	40	30		310	302	294	280	258	215	193	168
R150-ES-26	50	37		380	368	355	340	316	265	235	195

Performance Data -- 42m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	53	79	106	132	159	185	211
			m³/h	0	12	18	24	30	36	42	48
			L/min	0	200	300	400	500	600	700	800
	HP	kW	Total head in meters
R150-GS-02	4	3	H (m)	28	26	25	24	23	21	19	16
R150-GS-03	5.5	4		42	39	37	36	34	31	28	24
R150-GS-04	7.5	5.5		57	52	50	48	45	42	37	31
R150-GS-05	10	7.5		71	65	62	60	57	52	47	39
R150-GS-06	12.5	9.2		85	78	75	72	68	63	56	47
R150-GS-07	15	11		99	91	87	84	79	73	65	55
R150-GS-08	17.5	13		113	104	100	96	91	84	75	63
R150-GS-09	20	15		127	117	112	108	102	94	84	71
R150-GS-11	25	18.5		155	143	137	132	125	115	103	86
R150-GS-14	30	22		198	182	175	168	159	147	131	110
R150-GS-16	35	26		226	208	200	192	181	168	150	126
R150-GS-18	40	30		254	234	225	215	204	189	168	141
