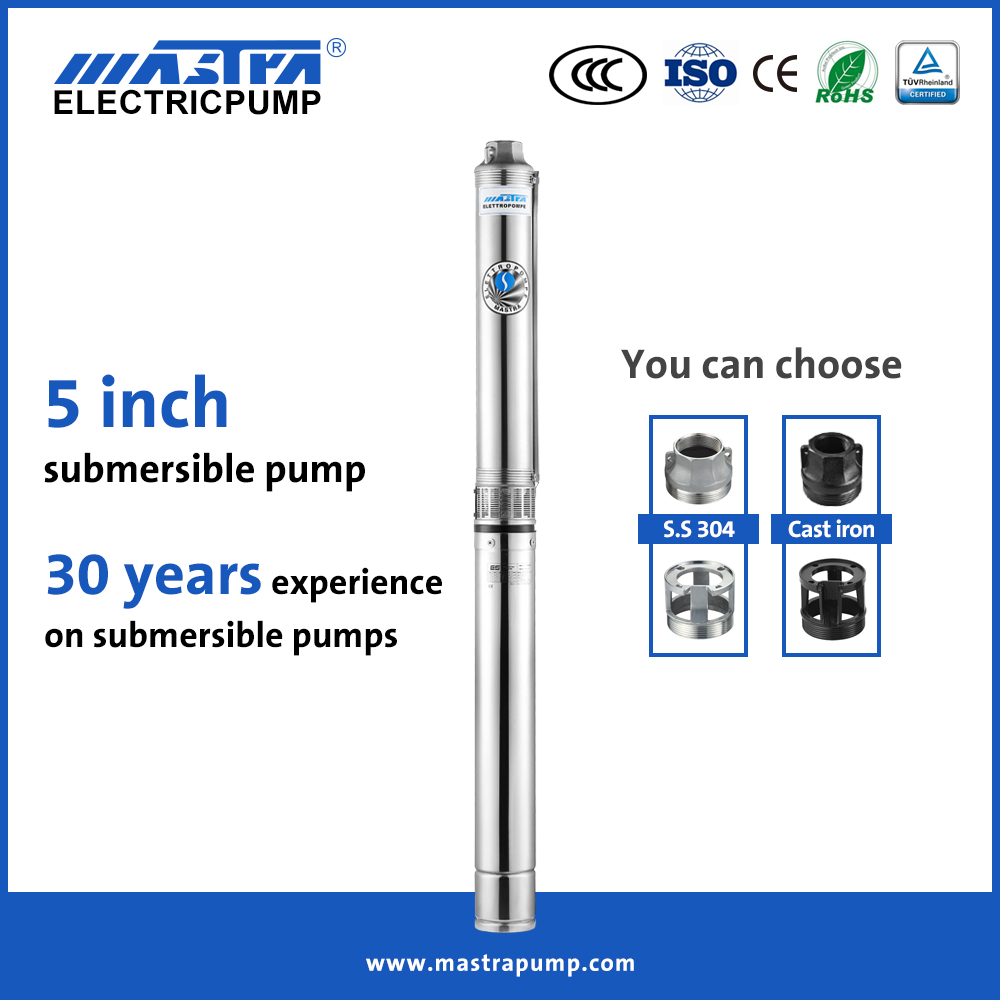

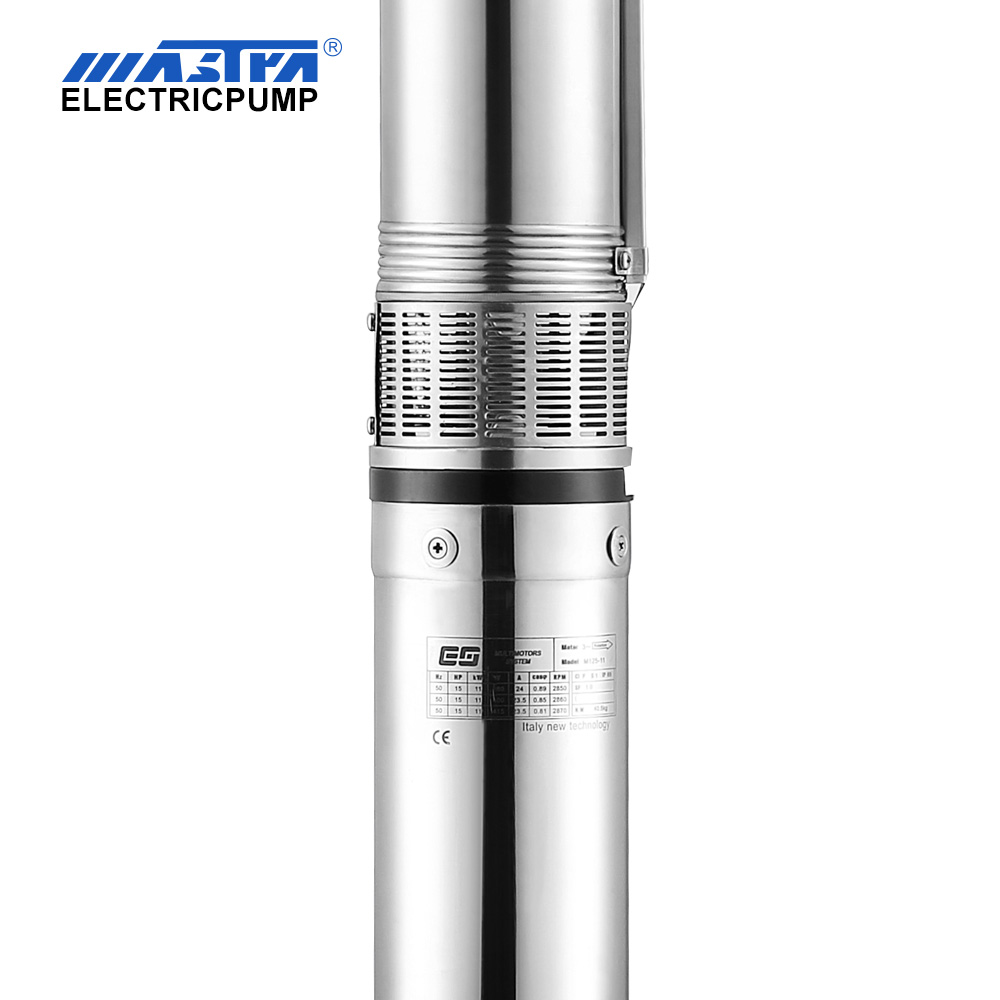

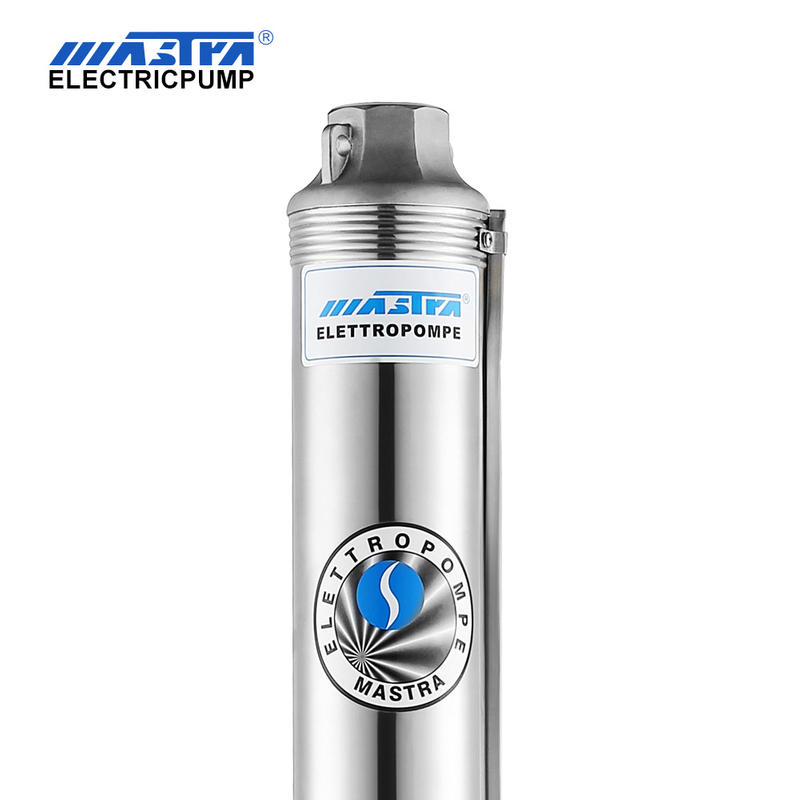

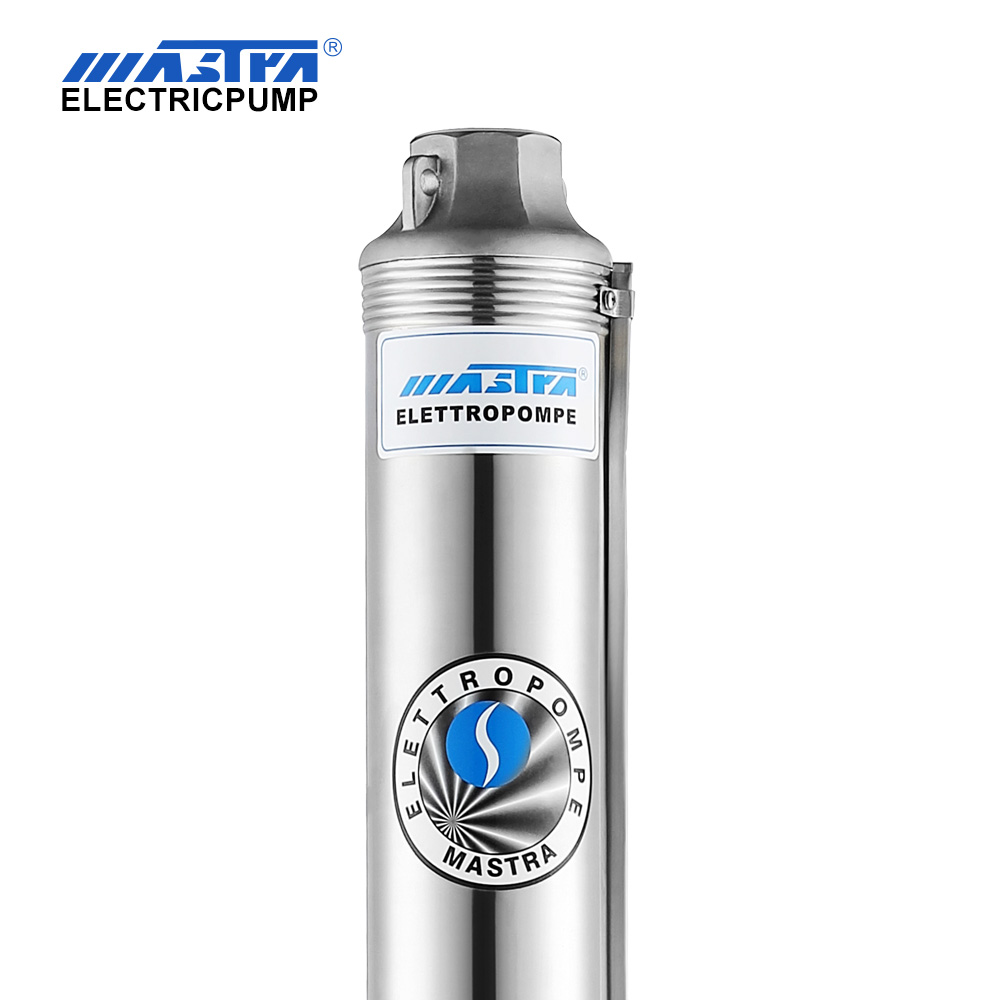

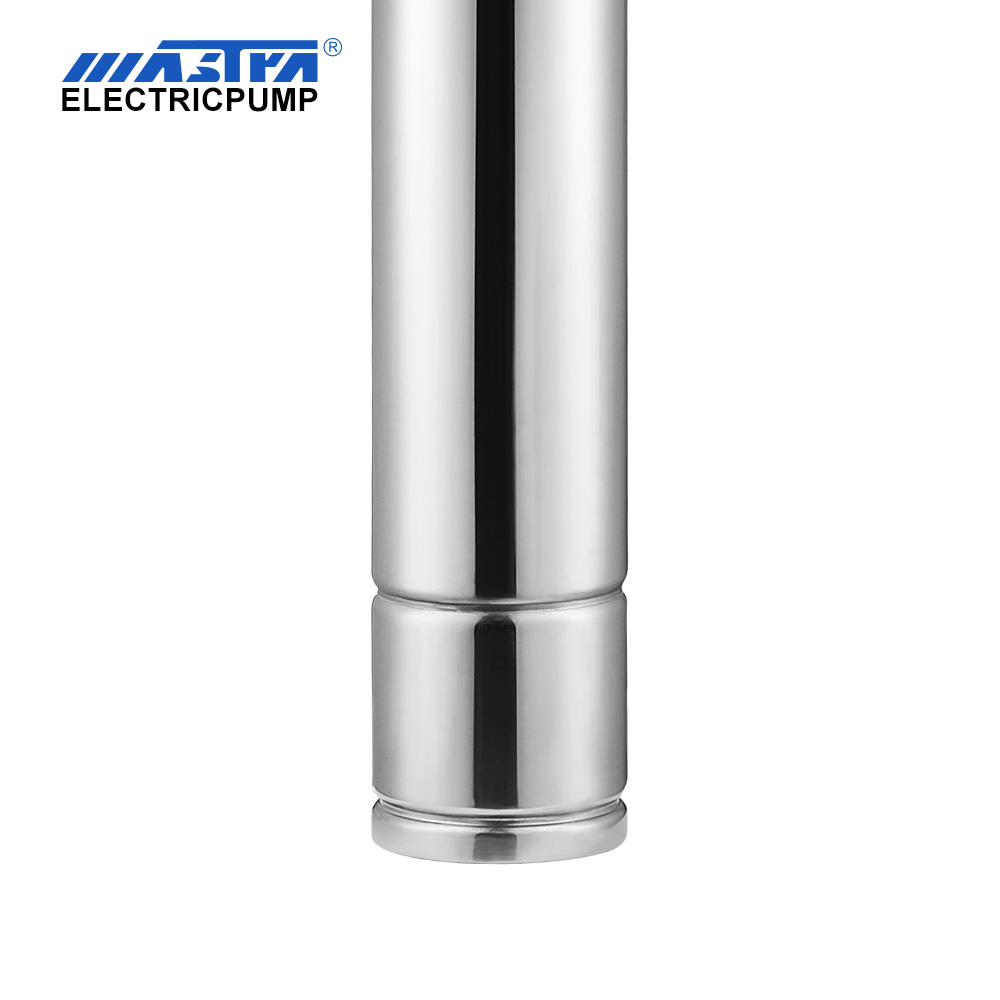

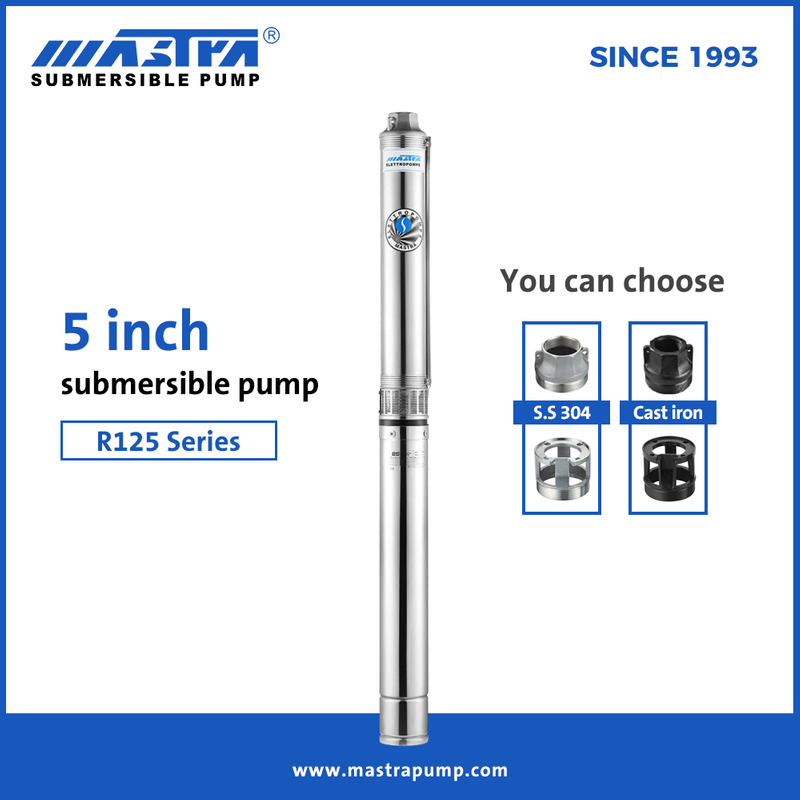

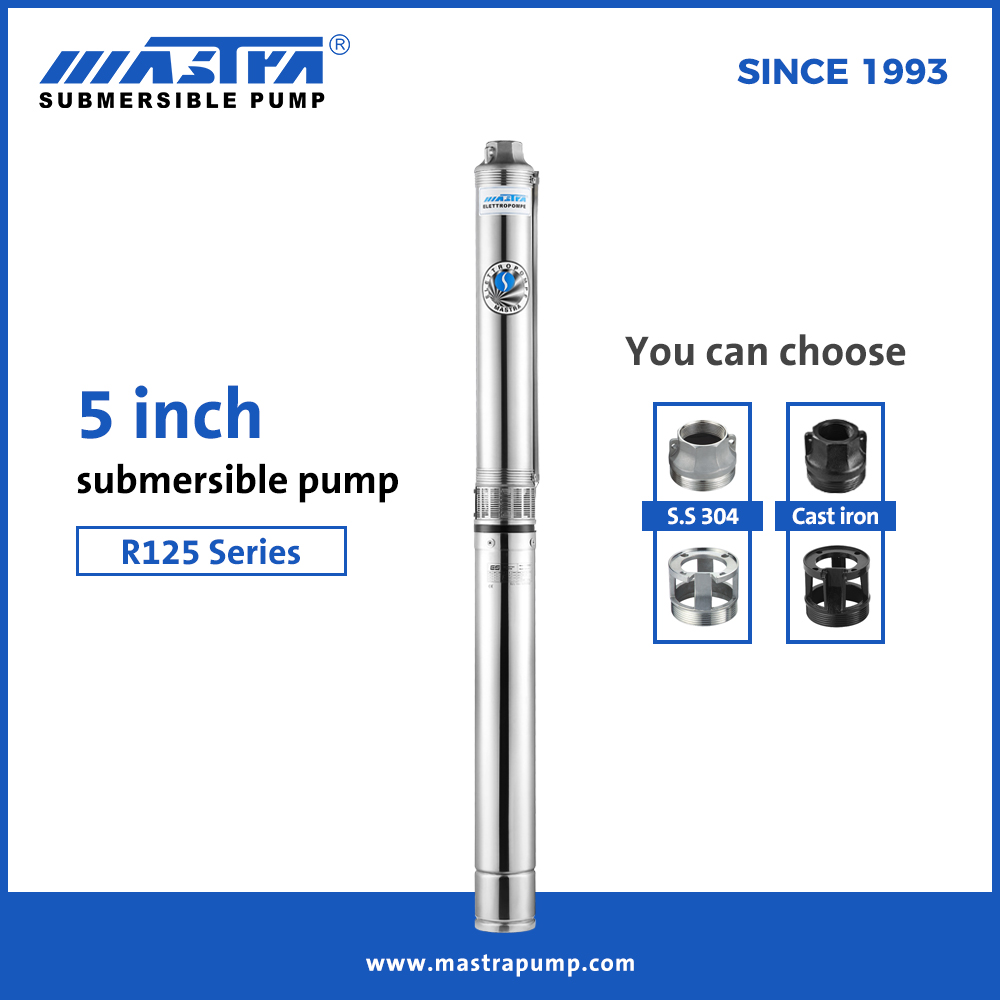

MASTRA 5 inch Submersble Well Pump Supplier R125 Series Stainless Steel Submersible deep Well Pump

Name: MASTRA 5 inch Submersble Well Pump Supplier R125 Series Stainless Steel Submersible deep Well Pump
Brand: MASTRA
Rating: 5.0 (9 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R125
Brand:
MASTRA
Size:
5 inch
Impeller Material:
Plastic

The impellers and the diffusers are made of new technology, USA high tech composite plastic material, and stainless steel. It is high strength, wear resistant, good to against sands impact, and more longer using life.

Feature:

1. Adopt stainless steel 304 pump pipe, POM impeller, PPO diffuser, beautiful and corrosion resistance.

2. The maximum diameter is 125mm, which is smaller than the standard 6-inch well pump and easy to install in a smaller well.

3. Pump head material: options: copper alloy, stainless steel 304/316, cast iron (anti-rust treatment).

Parts		Material
Delivery door		Cast iron
Suction support		Cast iron
Check value		Plastic(POM)
Valve support		Plastic(PPO/PC)
Shaft support		Plastic(PPO/PC)
Impeller		Plastic(PPO)
Diffuser		Plastic(POM)
Valve seal		Nitrile rubber(NBR)
Anti-wear washer		Nitrile rubber(NBR)
Pump bearing		Nitrile rubber(NBR)
Pump body		AISI 304
Cable cover		AISI 304
Filter		AISI 304
Shaft		2Cr13
Shaft coupling		AISI 304
Bushing		AISI 304

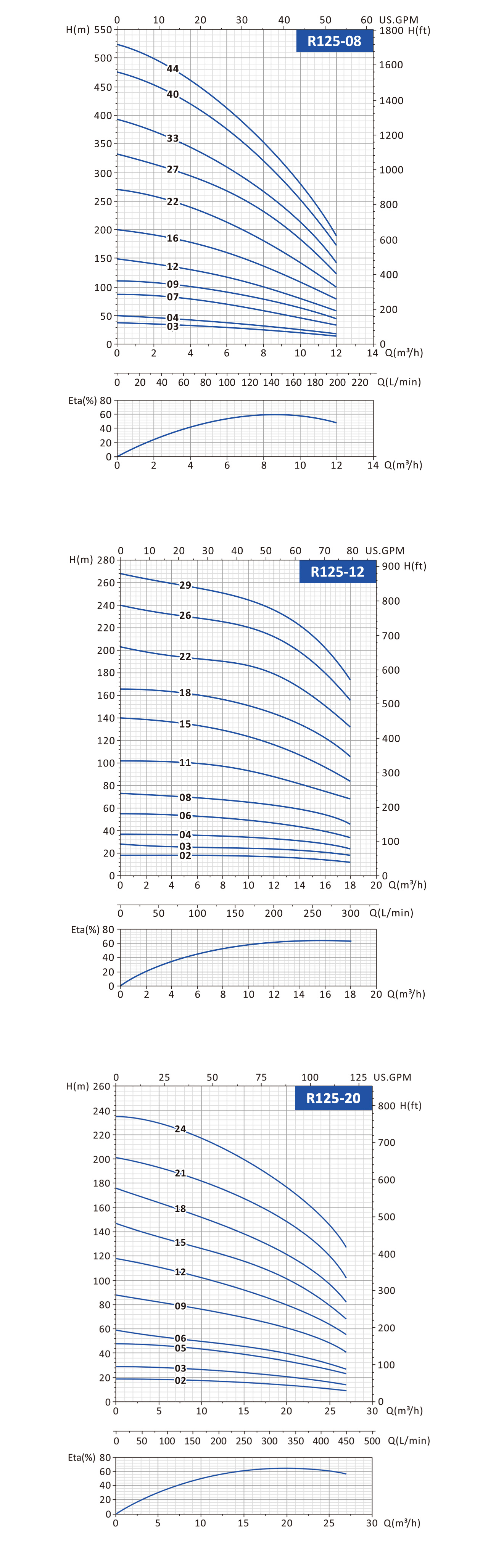

Performance Data -- 8m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	2.6	5.3	7.9	9.2	10.6	11.9	13.2
			m³/h	0	0.6	1.2	1.8	2.1	2.4	2.7	3
			L/min	0	10	20	30	35	40	45	50
	HP	kW	Total head in meters
R125-08-03	1.5	1.1	H (m)	37	36	33	30	26	20	14	11
R125-08-04	2	1.5		50	47	43	39	34	26	19	15
R125-08-07	3	2.2		87	83	76	69	60	46	33	26
R125-08-09	4	3		111	107	99	91	79	63	44	33
R125-08-12	5.5	4		149	141	132	120	105	84	58	43
R125-08-16	7.5	5.5		200	191	177	161	141	110	79	58
R125-08-22	10	7.5		271	259	237	212	183	145	100	75
R125-08-27	12.5	9.2		332	317	296	266	233	182	123	95
R125-08-33	15	11		393	376	347	308	263	210	142	107
R125-08-40	17.5	13		476	456	421	373	319	255	172	130
R125-08-44	20	15		524	501	463	411	351	280	189	143

Performance Data -- 12m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	13.2	26.4	39.6	52.8	66	79.2	92.4
			m³/h	0	3	6	9	12	15	18	21
			L/min	0	50	100	150	200	250	300	350
	HP	kW	Total head in meters
R125-12-02	1.5	1.1	H (m)	18.5	18	17.5	17	16	14.5	12	9
R125-12-03	2	1.5		28	27	26	25.5	24	22	18	13.5
R125-12-04	3	2.2		37	36	35	34	32	29	24	18
R125-12-06	4	3		55	53	52	50	47	41	34	26
R125-12-08	5.5	4		73	71	70	67	63	56	46	34
R125-12-11	7.5	5.5		102	100	99	95	92	82	68	52
R125-12-15	10	7.5		140	137	132	128	116	102	84	60
R125-12-18	12.5	9.2		166	163	160	152	146	130	106	80
R125-12-22	15	11		203	200	196	188	180	159	132	100
R125-12-26	17.5	13		240	236	232	222	213	188	156	118
R125-12-29	20	15		268	264	258	248	237	210	174	132

Performance Data -- 20m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	2.6	5.3	7.9	9.2	10.6	11.9	13.2
			m³/h	0	0.6	1.2	1.8	2.1	2.4	2.7	3
			L/min	0	10	20	30	35	40	45	50
	HP	kW	Total head in meters
R125-20-02	1.5	1.1	H (m)	19	18	17	15	13	11	9	6
R125-20-03	3	2.2		29	27	25	23	20	17	14	9
R125-20-05	4	3		48	45	42	39	34	28	23	16
R125-20-06	5.5	4		59	54	50	46	41	34	27	19
R125-20-09	7.5	5.5		88	81	76	69	61	51	41	28
R125-20-12	10	7.5		118	108	101	92	81	68	55	38
R125-20-15	12.5	9.2		147	135	126	116	102	85	68	47
R125-20-18	15	11		176	162	151	139	122	102	82	57
R125-20-21	17.5	13		201	196	180	165	150	126	102	66
R125-20-24	20	15		235	233	214	197	181	154	127	91

MASTRA pump stainless steel submersible well pump AISI304 Submersible water pump best submersible water pump solar submersible well pump stainless steel deep well pump 5 inch Submersble Well Pump Supplier best Submersible well Pump supplier deep well submersible pump Submersble Well Pump Supplier

Related Products

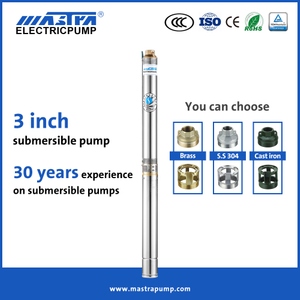

MASTRA 3 inch Submersible Well Pump R75 Series Deep Well Pump

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
R125-08-03	854	406	448	G2"	95	125
R125-08-04	925	441	484		95
R125-08-07	1034	477	557		114
R125-08-09	1137	507	630
R125-08-12	1286	547	739
R125-08-16	1480	597	883
R125-08-22	1759	657	1102
R125-08-27	2057	727	1330
R125-08-33	2326	777	1549
R125-08-40	2632	827	1805
R125-08-44	2824	873	1951

R125-12-02	787	406	381	G2"	95	125
R125-12-03	861	441	420		95
R125-12-04	936	477	459		114
R125-12-06	1044	507	537
R125-12-08	1161	547	614
R125-12-11	1328	597	731
R125-12-15	1543	657	886
R125-12-18	1729	727	1002
R125-12-22	1980	777	1203
R125-12-26	2185	827	1358
R128-12-29	2348	873	1475

R125-20-02	860	406	454	G2"	95	125
R125-20-03	1006	477	529		114
R125-20-05	1187	507	680
R125-20-06	1302	547	755
R125-20-09	1580	597	983
R125-20-12	1912	657	1255
R125-20-15	2209	727	1482
R125-20-18	2486	777	1709
R125-20-21	2763	827	1936
R125-20-24	3034	873	2161
