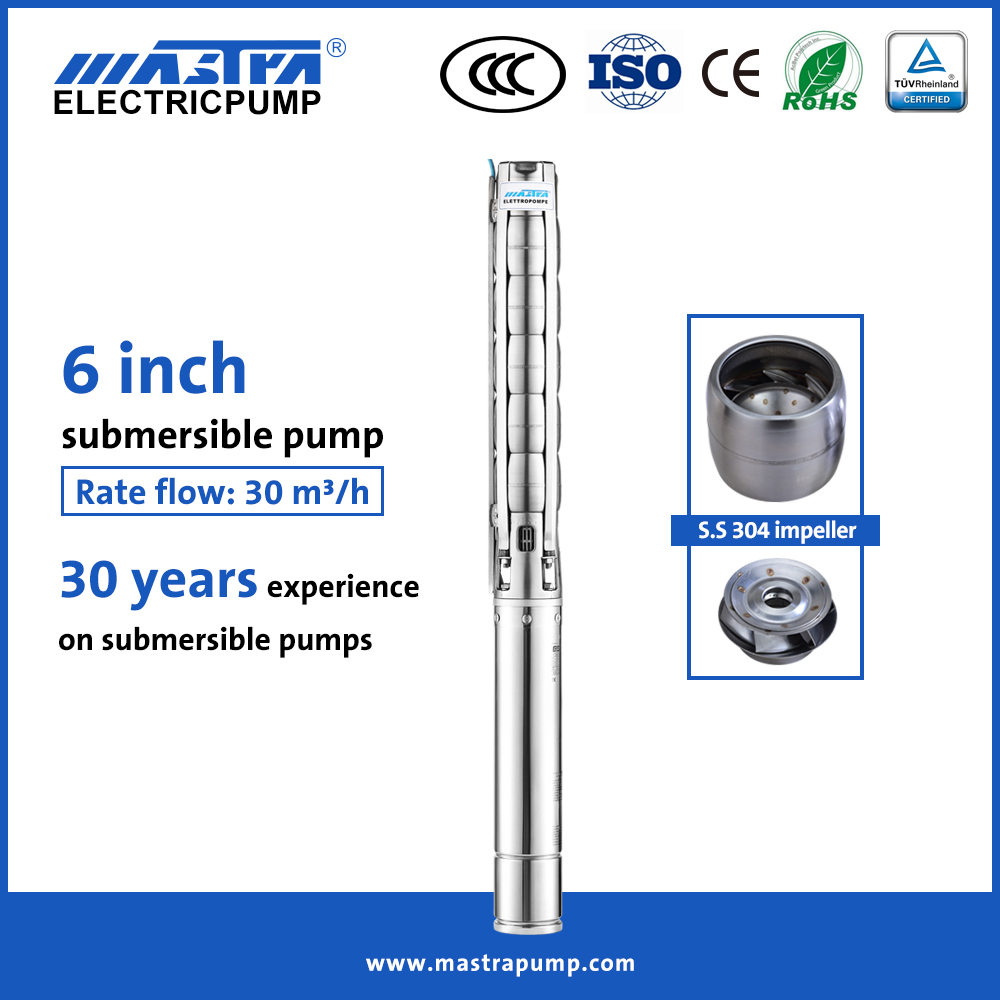

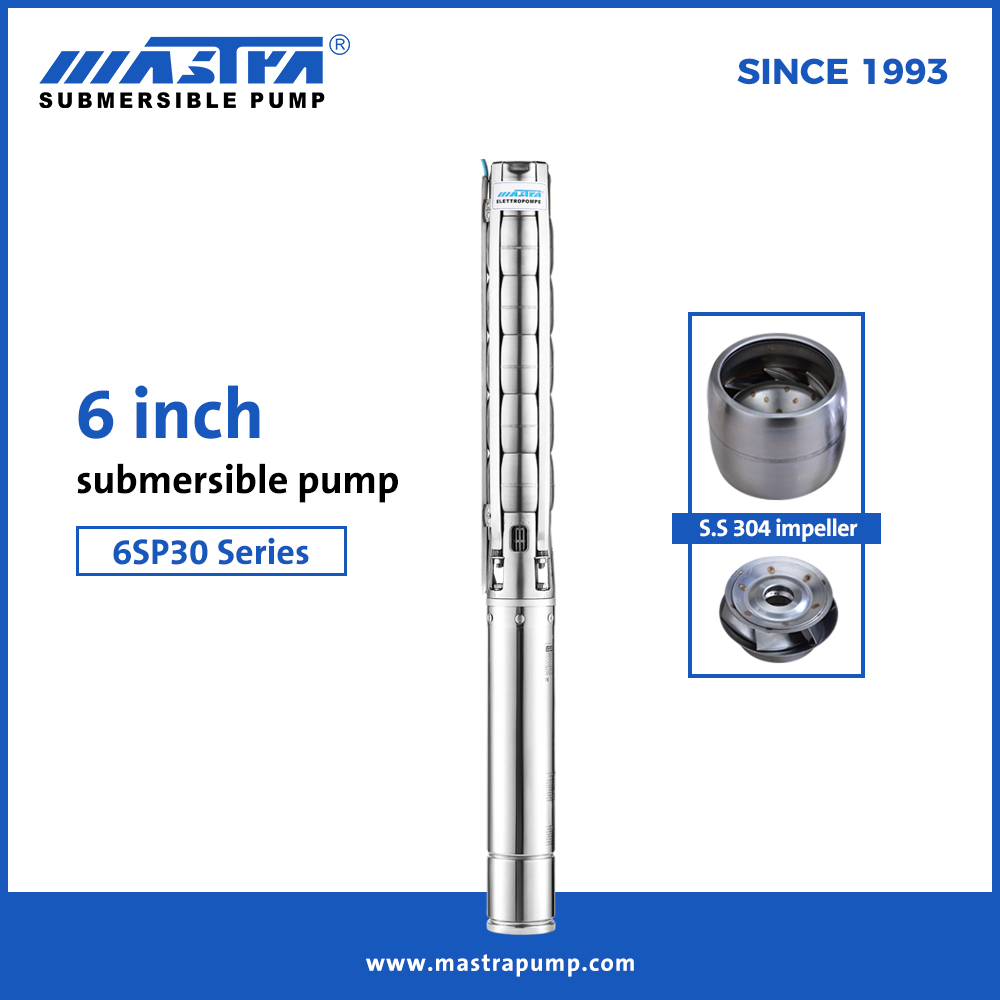

MASTRA 6 inch All Stainless Steel Submersible Borehole Pump 6SP30 Series Deep Well Pump

Name: MASTRA 6 inch All Stainless Steel Submersible Borehole Pump 6SP30 Series Deep Well Pump
Brand: MASTRA
Rating: 5.0 (99 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
6SP30
Brand:
MASTRA

Metal parts for 3SP, 4SP, 5SP, 6SP, 8SP and 10SP series of submersible pump such as impeller, diffuser, pump outlet and suction support etc. are made of wearable and anticorrosive stainless steel AISI304 through advanced moulding and punching craft procedures. Rubber bearing is made of wearable rubber with low friction. The connection method between coupler and motor is in compliance with standard of NEMA. Our impeller and diffuser are designed and manufactured according to the requirements of high efficiency, high reliability and long service life.

Feature:

1. All metal materials are 100% SS304, the structure is corrosion resistant, clean and environmental friendly, and will not cause secondary pollution to the water quality.

2. It is equipped with check valve to prevent the impact of backflow water pressure when the electric pump stops. Drain holes can also be set on the check valve seat according to the customer's needs to slowly drain the water in the pipeline to prevent the pipeline from freezing in winter.

3. All stainless steel impellers has obviously higher wear-resistant and longer service life than the ordinary plastic impeller and brass impeller, so that the pump has high efficiency, good stability and long service life.

4. Stainless steel sand net to prevent sand or large particulate matter into the pump body.

Parts				Material
Shaft				AISI 304(316L)
Coupling				AISI 304(316L)
Check valve				AISI 304(316L)
Pump body				AISI 304(316L)
Impeller				AISI 304(316L)
Diffuser				AISI 304(316L)
Bearing				Wear resistant rubber
Suction strainer				AISI 304(316L)
Suction support				AISI 304(316L)
Delivery body				AISI 304(316L)

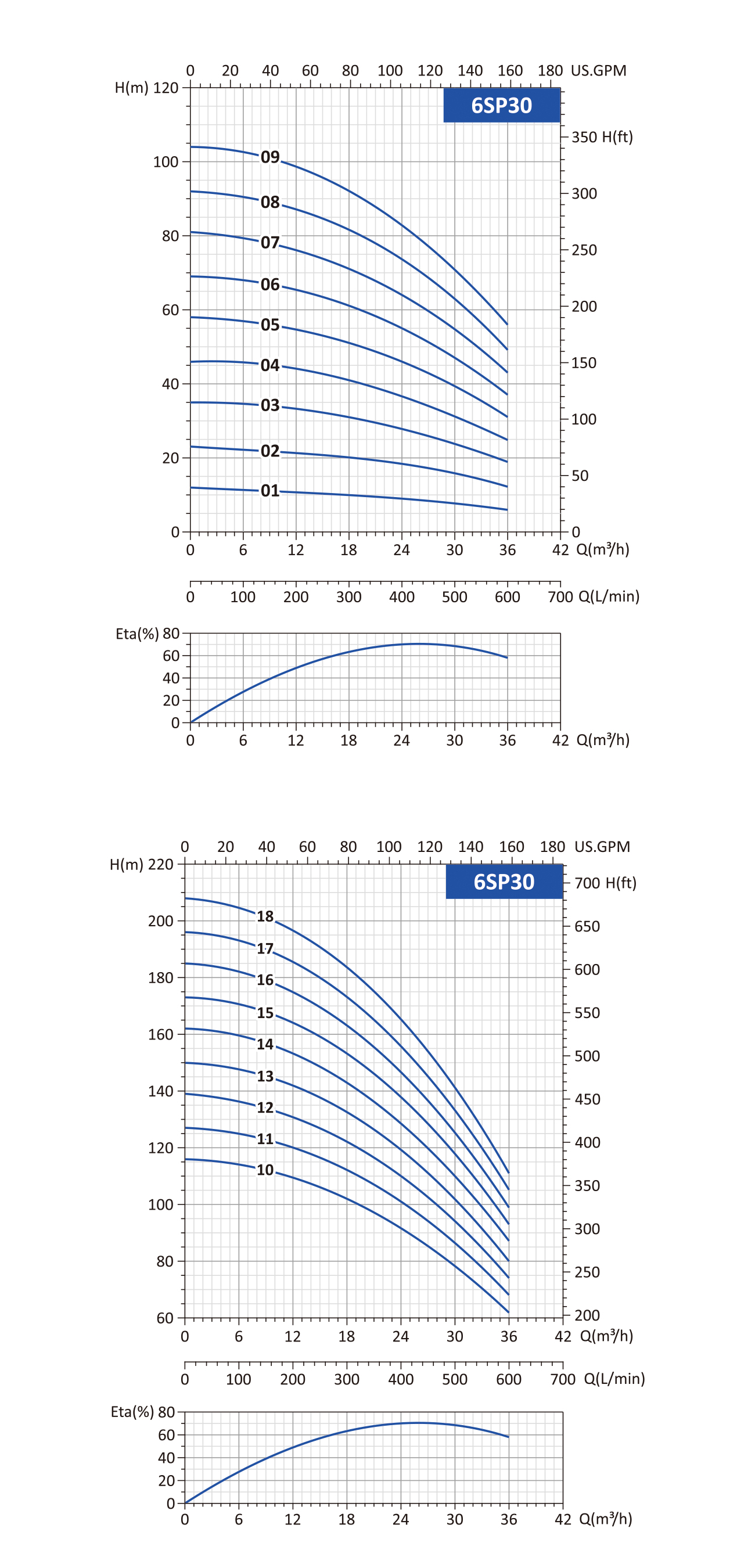

Performance Data -- 30m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	40	79	106	123	132	141	158
			m³/h	0	9	18	24	28	30	32	36
			L/min	0	150	300	400	467	500	533	600
	HP	kW	Total head in meters
6SP30-01	1	0.75	H (m)	12	11	10	9	8	8	7	6
6SP30-02	1.5	1.1		23	22	20	18	17	16	15	12
6SP30-03	3	2.2		35	34	31	28	25	24	22	19
6SP30-04	3	2.2		46	45	41	37	33	31	29	25
6SP30-05	4	3		58	56	51	46	42	39	37	31
6SP30-06	5.5	4		69	67	61	55	50	47	44	37
6SP30-07	5.5	4		81	78	71	64	58	55	51	43
6SP30-08	7.5	5.5		92	89	82	73	67	63	59	49
6SP30-09	7.5	5.5		104	101	92	83	75	71	66	56

Performance Data -- 30m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	40	79	106	123	132	141	158
			m³/h	0	9	18	24	28	30	32	36
			L/min	0	150	300	400	467	500	533	600
	HP	kW	Total head in meters
6SP30-10	12.5	9.2	H (m)	116	112	102	92	83	78	73	62
6SP30-11	12.5	9.2		127	123	112	101	92	86	81	68
6SP30-12	12.5	9.2		139	134	122	110	100	94	88	74
6SP30-13	12.5	9.2		150	145	133	119	108	102	95	80
6SP30-14	15	11		162	157	143	128	117	110	103	87
6SP30-15	17.5	13		173	168	153	138	125	118	110	93
6SP30-16	17.5	13		185	179	163	147	133	125	117	99
6SP30-17	17.5	13		196	190	173	156	141	133	125	105
6SP30-18	17.5	13		208	201	184	165	150	141	132	111

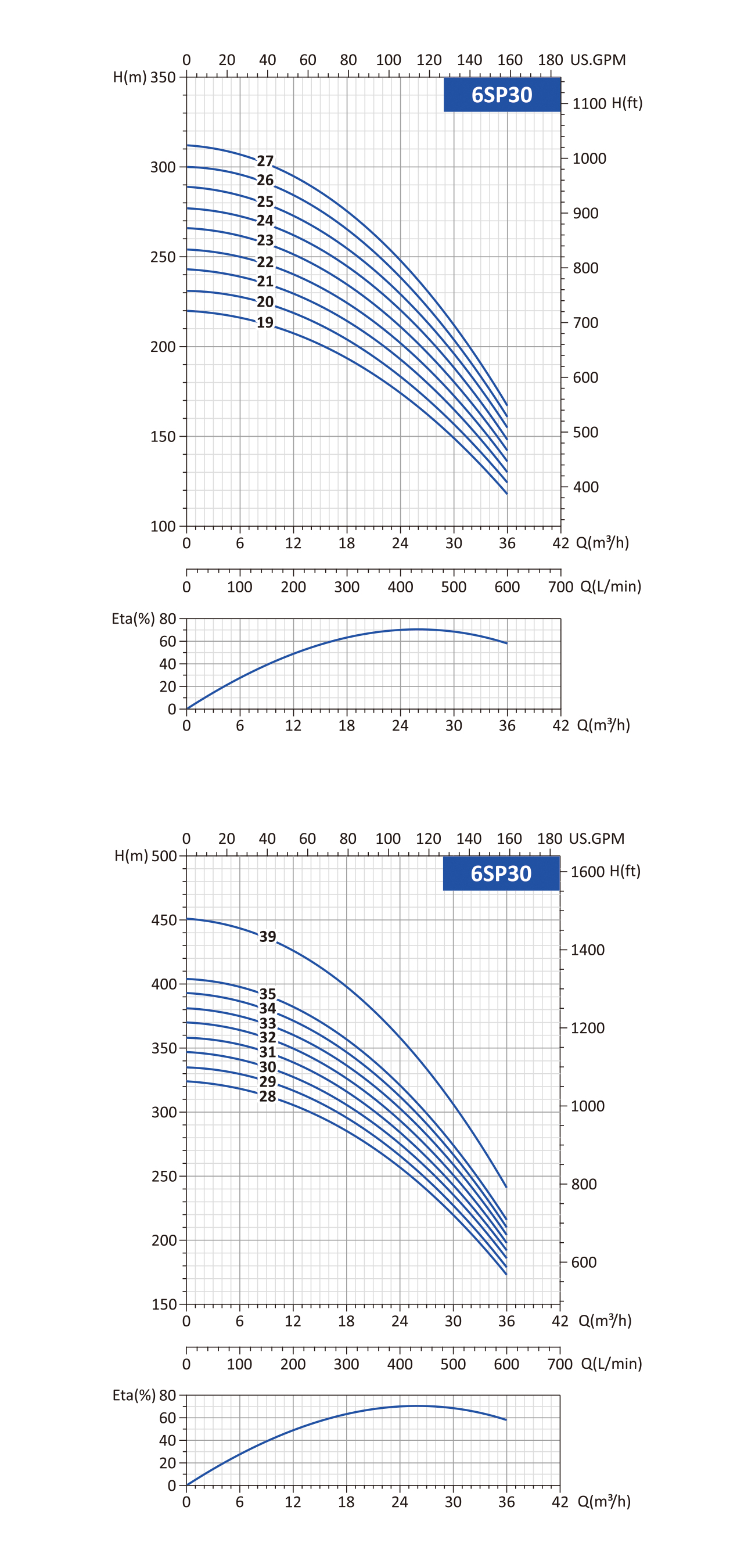

Performance Data -- 30m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	40	79	106	123	132	141	158
			m³/h	0	9	18	24	28	30	32	36
			L/min	0	150	300	400	467	500	533	600
	HP	kW	Total head in meters
6SP30-19	20	15	H (m)	220	212	194	174	158	149	139	118
6SP30-20	25	18.5		231	224	204	183	166	157	147	124
6SP30-21	25	18.5		243	235	214	193	175	165	154	130
6SP30-22	25	18.5		254	246	224	202	183	173	161	136
6SP30-23	25	18.5		266	257	235	211	191	180	169	142
6SP30-24	25	18.5		277	268	245	220	200	188	176	148
6SP30-25	25	18.5		289	279	255	229	208	196	183	155
6SP30-26	25	18.5		300	291	265	239	216	204	190	161
6SP30-27	30	22		312	302	275	248	225	212	195	167

Performance Data -- 30m³/h Rated Flow

Model 50Hz	Motor Power		Q	Capacity
			US.gpm	0	40	79	106	123	132	141	158
			m³/h	0	9	18	24	28	30	32	36
			L/min	0	150	300	400	467	500	533	600
	HP	kW	Total head in meters
6SP30-28	30	22	H (m)	324	313	285	257	233	220	205	173
6SP30-29	30	22		335	324	296	266	241	227	212	179
6SP30-30	30	22		347	335	306	275	250	235	220	186
6SP30-31	30	22		358	347	316	284	258	243	227	192
6SP30-32	30	22		370	358	326	294	266	251	234	198
6SP30-33	30	22		381	369	336	303	275	259	242	204
6SP30-34	30	22		393	380	347	312	283	267	249	210
6SP30-35	30	22		404	391	357	321	291	274	256	216
6SP30-39	35	26		451	436	398	358	325	306	286	241

(Unit of Length: mm)
Model	H1	H2	H3	ΦA	ΦB	Φmax
6SP30-01	336	387	723	G3" or G4"	95	145
6SP30-02	449	454	903		95
6SP30-03	561	667	1228		144
6SP30-04	657	702	1359
6SP30-05	753	742	1495
6SP30-06	849	742	1591
6SP30-07	945	777	1722
6SP30-08	1041	777	1818
6SP30-09	1137	807	1944
6SP30-10	1233	807	2040
6SP30-11	1329	807	2136
6SP30-12	1425	832	2257
6SP30-13	1521	832	2353
6SP30-14	1617	862	2479
6SP30-15	1713	862	2575
6SP30-16	1809	917	2726
6SP30-17	1905	917	2822
6SP30-18	2001	967	2968
6SP30-19	2097	967	3064
6SP30-20	2193	967	3160
6SP30-21	2289	967	3256
6SP30-22	2385	1017	3402
6SP30-23	2481	1017	3498
6SP30-24	2577	1017	3594
6SP30-25	2673	1017	3690
6SP30-26	2769	1017	3786
6SP30-27	2865	1062	3927
6SP30-28	2961	1062	4023
6SP30-29	3057	1062	4119
6SP30-30	3153	1062	4215
6SP30-31	3249	1062	4311
6SP30-32	3345	1117	4462
6SP30-33	3441	1117	4558
6SP30-34	3537	1117	4654
6SP30-35	3633	1117	4750
6SP30-39	3729	1207	4936
