| Quantity: | |
|---|---|

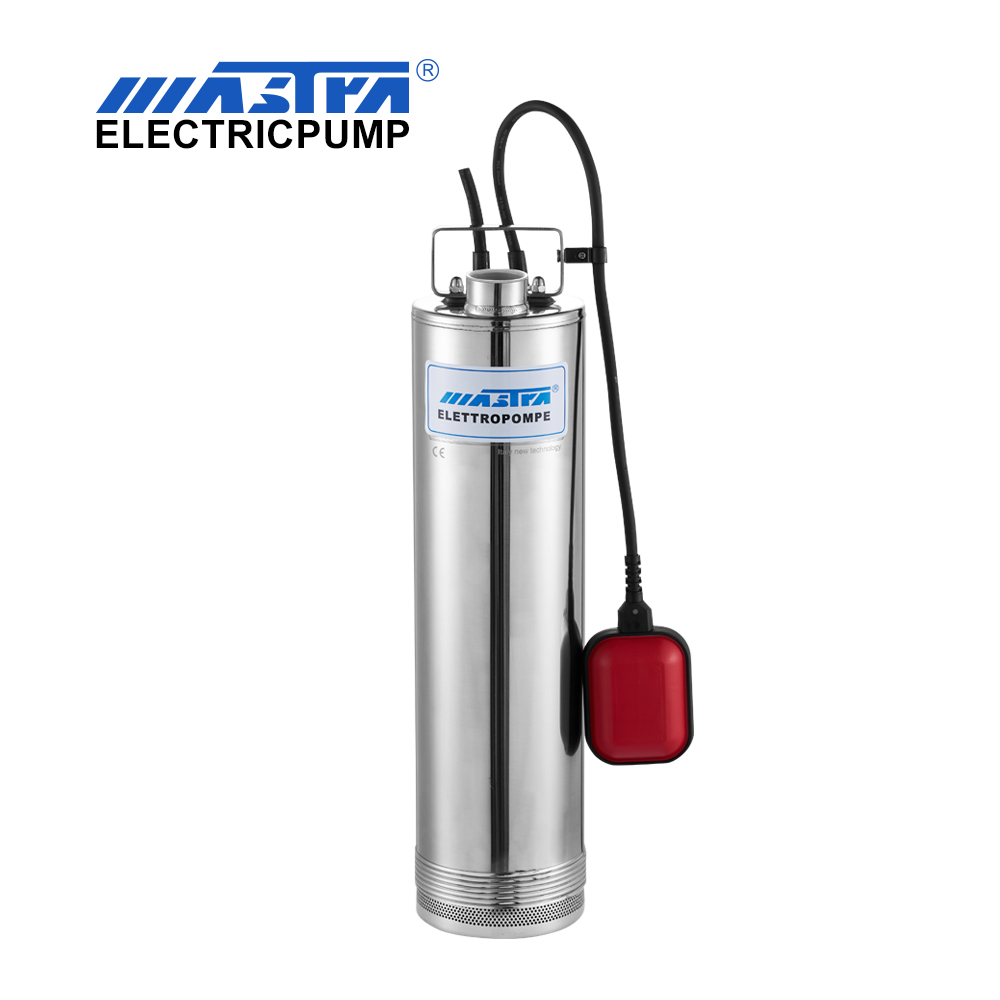

R128AH
MASTRA
3 inch
Plastic
1. Features an Italian mechanical seal for enhanced sealing performance and extended service life
2. Incorporates sound-absorbing design technology for ultra-quiet operation
3. Compact integrated design ensures easy operation and flexible application
4. Delivers high head pressure with exceptional efficiency and durability
5. Floating impeller design provides superior sand-handling capability
6. Equipped with a float switch to effectively prevent pump dry-running
Ideal for delivering clean water from private wells, residential tanks, and reservoirs. These pumps also excel in irrigation applications, drawing water from ponds, lakes, ditches, or cisterns, while being equally effective for domestic garden watering and rainwater harvesting systems. The R128-AH series further supports light industrial uses such as car wash water recycling systems, filtration units, and material hoppers.

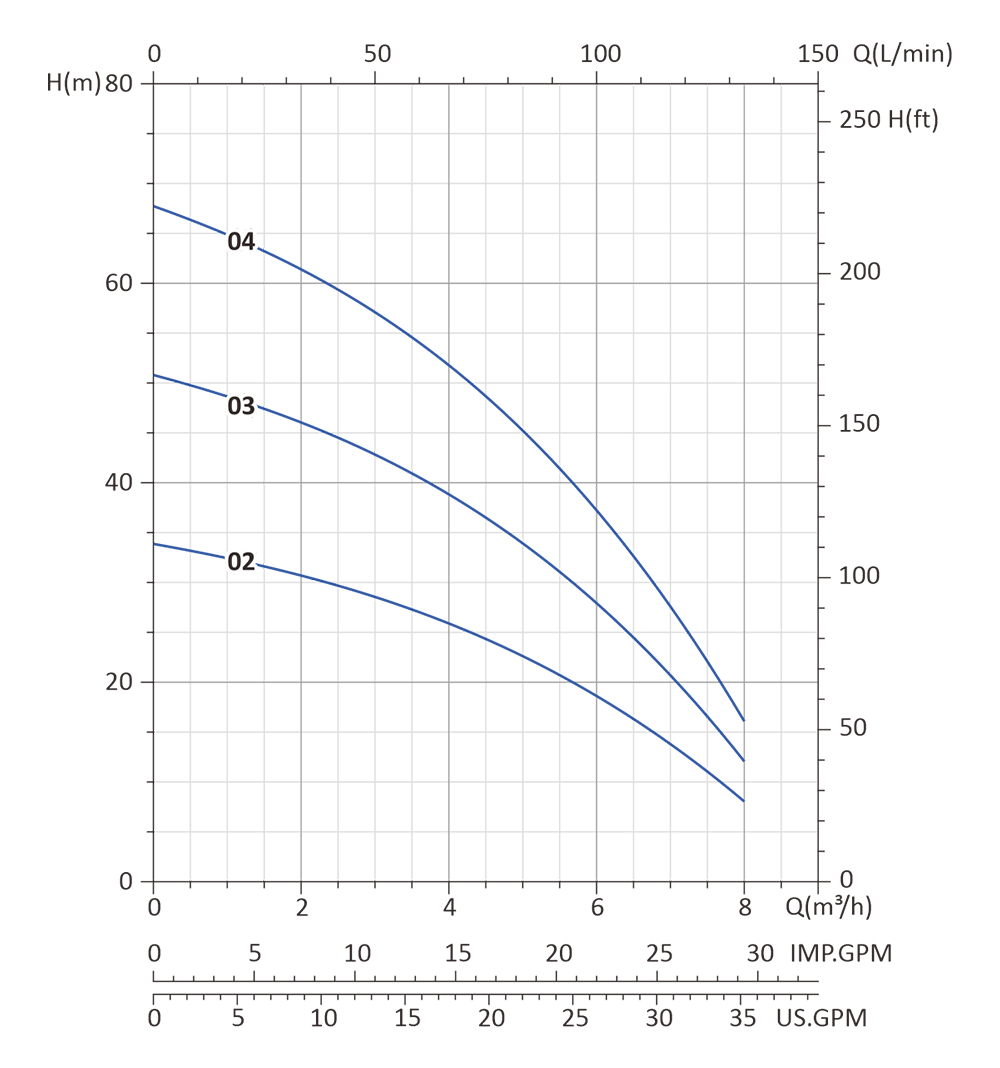

Model | Motor Power | Single Phase | Three Phase | Q | Capacity | |||||||||||
| US.GPM | 0 | 4.4 | 8.8 | 13.2 | 17.6 | 22 | 26.4 | 30.8 | 35.2 | |||||||
| m³/h | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||||
| L/min | 0 | 16.7 | 33.3 | 50 | 66.7 | 83.3 | 100 | 116.7 | 133.3 | |||||||
| HP | kW | A | μF | VC | A | Total head in meters | ||||||||||
| R128AH-02 | 0.8 | 0.6 | 4.2 | 20 | 450 | 2.1 | H(m) | 34 | 32 | 31 | 29 | 26 | 23 | 19 | 14 | 8 |
| R128AH-03 | 1.2 | 0.9 | 6.3 | 25 | 450 | 2.5 | 51 | 49 | 46 | 43 | 39 | 34 | 28 | 21 | 12 | |
| R128AH-04 | 1.6 | 1.2 | 8.6 | 35 | 450 | 3.4 | 68 | 65 | 61 | 57 | 52 | 45 | 37 | 28 | 16 | |
