| Quantity: | |
|---|---|
MYL
3 inch
Plastic
When the submersible pump is running, the water pipe must be applied to cool the pump motor shell! Otherwise the motor may burn to death! The temperature of the slurry medium shall not exceed + 50℃; the PH of the medium is 4-10; the KEY parts of this pump are high wear resistance alloy; exceeding 4-6 times the service life of ordinary submersible pump! It is the best selection of sand extraction process IN ore processing For 60 to 200 mesh.
| Model | Parameter | |

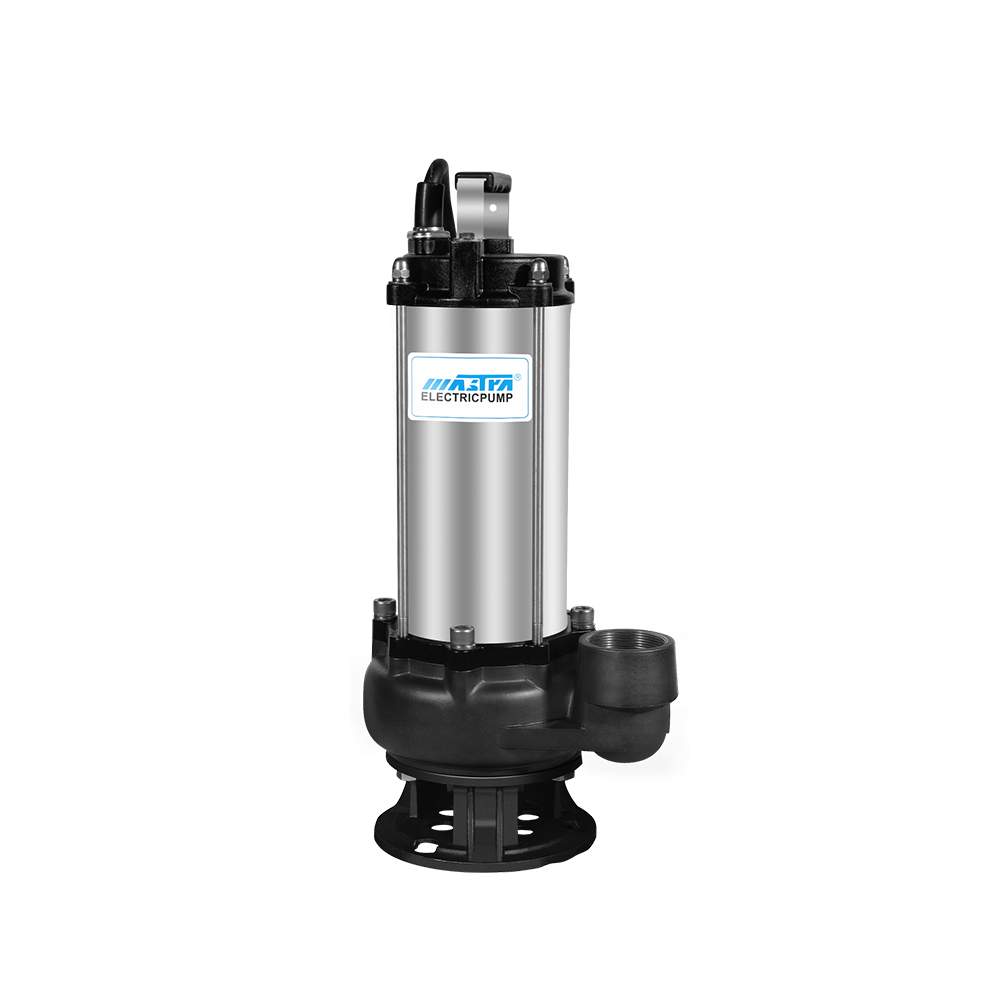

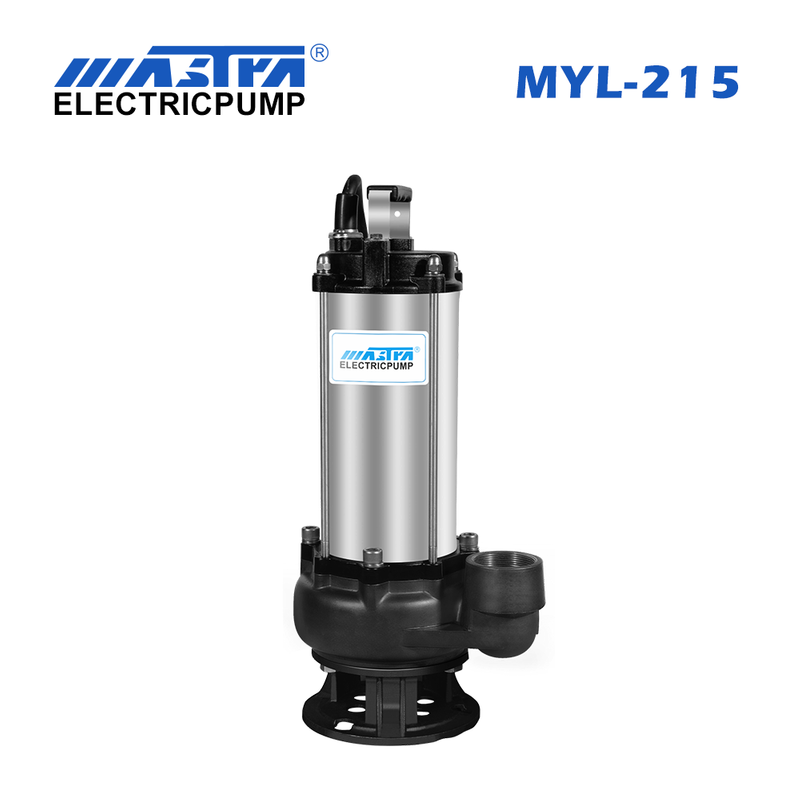

 | MYL215 | Voltage: 380V Power: 1.5 kW Rated Flow: 20 m3/h Rated Head: 11.5 m Max. Flow: 42 m3/h Max. Head: 18.5 m Motor speed: 2850 rpm Outlet: 50 mm |

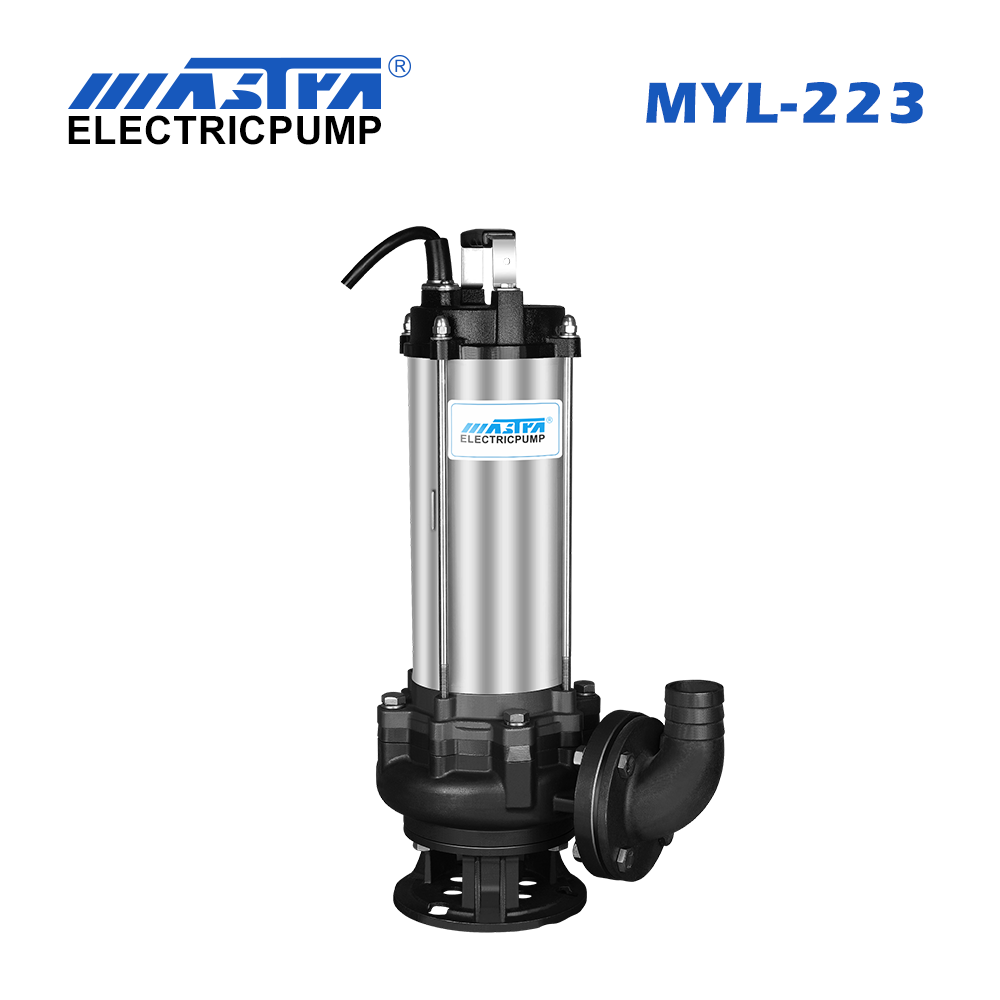

 | MYL223 | Voltage: 380V Power: 2.2 kW Rated Flow: 20 m3/h Rated Head: 18 m Max. Flow: 36 m3/h Max. Head: 27 m Motor speed: 2850 rpm Outlet: 50 mm |

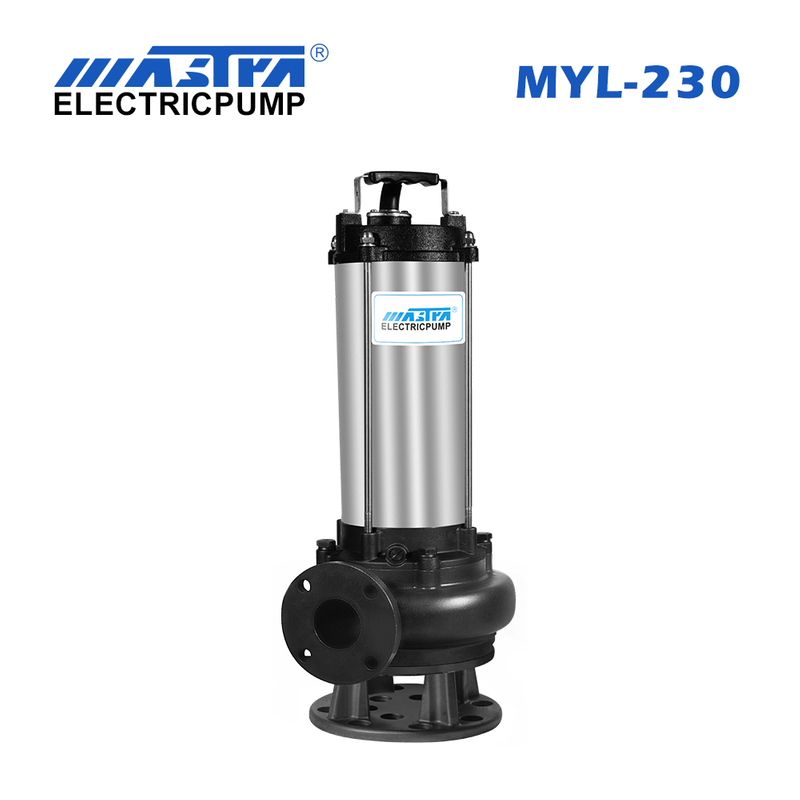

 | MYL230 | Voltage: 380V Power: 3 kW Rated Flow: 15 m3/h Rated Head: 17 m Max. Flow: 22 m3/h Max. Head: 27 m Motor speed: 2850 rpm Outlet: 50 mm |

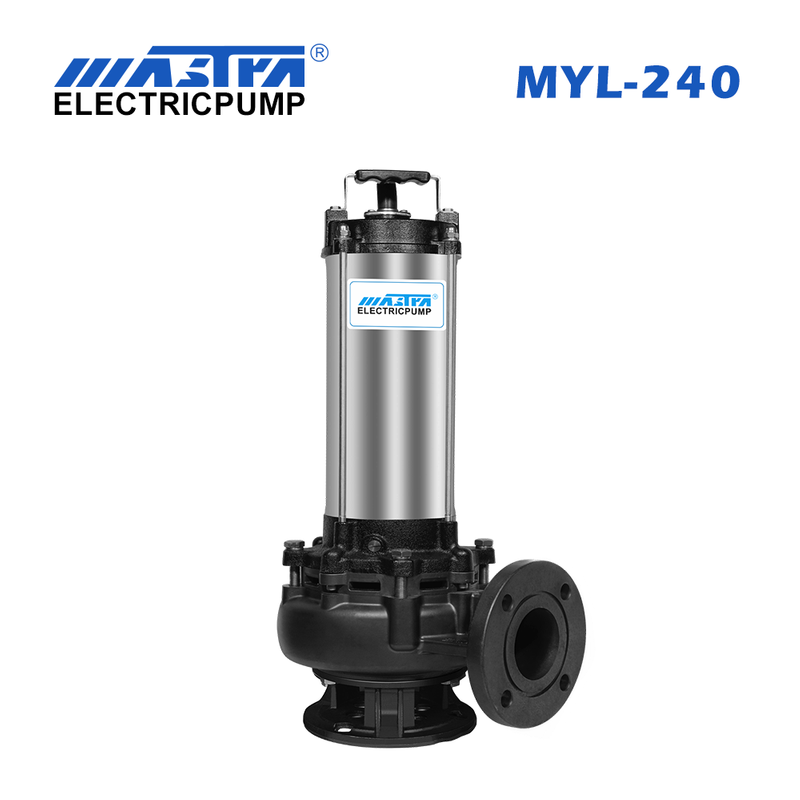

 | MYL240 | Voltage: 380V Power: 4 kW Rated Flow: 40 m3/h Rated Head: 12 m Max. Flow: 80 m3/h Max. Head: 17 m Motor speed: 2850 rpm Outlet: 80 mm |

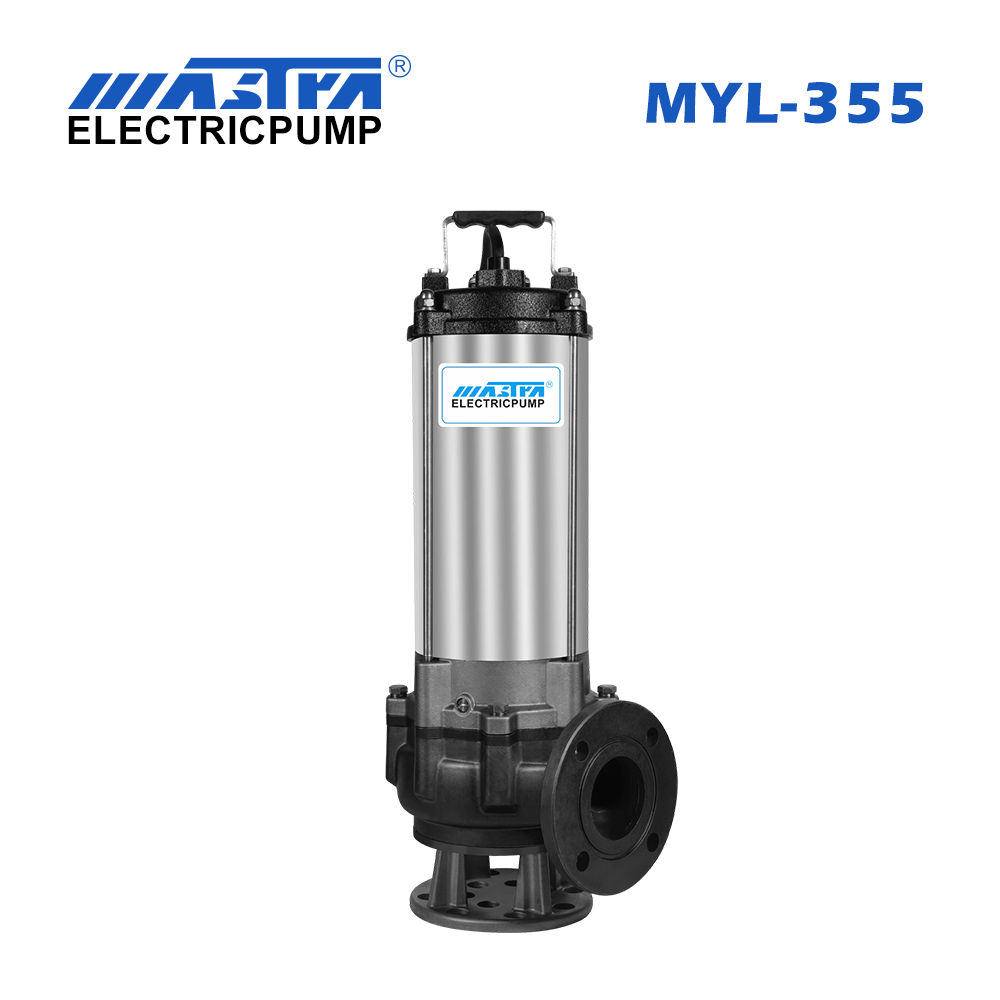

 | MYL355 | Voltage: 380V Power: 5.5 kW Rated Flow: 44 m3/h Rated Head: 19 m Max. Flow: 88 m3/h Max. Head: 29 m Motor speed: 2850 rpm Outlet: 80 mm |

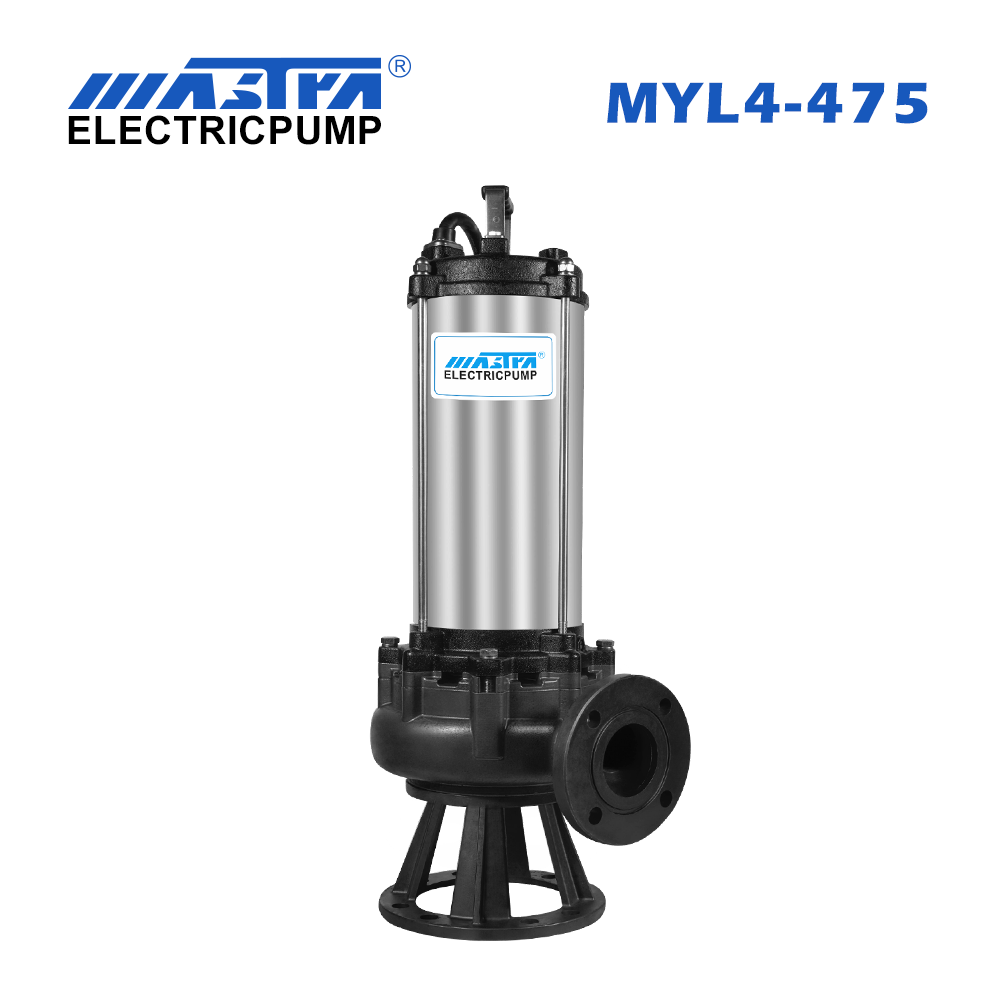

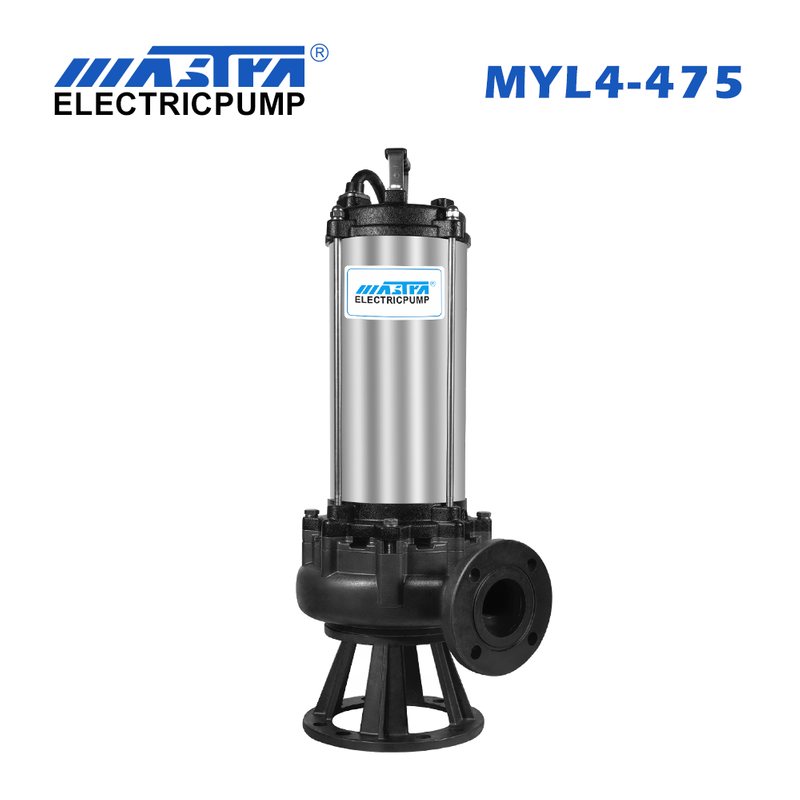

 | MYL4-475 | Voltage: 380V Power: 7.5 kW Rated Flow: 80 m3/h Rated Head: 10 m Max. Flow: 160 m3/h Max. Head: 16 m Motor speed: 1450 rpm Outlet: 80 mm |
When the submersible pump is running, the water pipe must be applied to cool the pump motor shell! Otherwise the motor may burn to death! The temperature of the slurry medium shall not exceed + 50℃; the PH of the medium is 4-10; the KEY parts of this pump are high wear resistance alloy; exceeding 4-6 times the service life of ordinary submersible pump! It is the best selection of sand extraction process IN ore processing For 60 to 200 mesh.
| Model | Parameter | |
| MYL215 | Voltage: 380V Power: 1.5 kW Rated Flow: 20 m3/h Rated Head: 11.5 m Max. Flow: 42 m3/h Max. Head: 18.5 m Motor speed: 2850 rpm Outlet: 50 mm |
| MYL223 | Voltage: 380V Power: 2.2 kW Rated Flow: 20 m3/h Rated Head: 18 m Max. Flow: 36 m3/h Max. Head: 27 m Motor speed: 2850 rpm Outlet: 50 mm |
| MYL230 | Voltage: 380V Power: 3 kW Rated Flow: 15 m3/h Rated Head: 17 m Max. Flow: 22 m3/h Max. Head: 27 m Motor speed: 2850 rpm Outlet: 50 mm |
| MYL240 | Voltage: 380V Power: 4 kW Rated Flow: 40 m3/h Rated Head: 12 m Max. Flow: 80 m3/h Max. Head: 17 m Motor speed: 2850 rpm Outlet: 80 mm |
| MYL355 | Voltage: 380V Power: 5.5 kW Rated Flow: 44 m3/h Rated Head: 19 m Max. Flow: 88 m3/h Max. Head: 29 m Motor speed: 2850 rpm Outlet: 80 mm |
| MYL4-475 | Voltage: 380V Power: 7.5 kW Rated Flow: 80 m3/h Rated Head: 10 m Max. Flow: 160 m3/h Max. Head: 16 m Motor speed: 1450 rpm Outlet: 80 mm |
