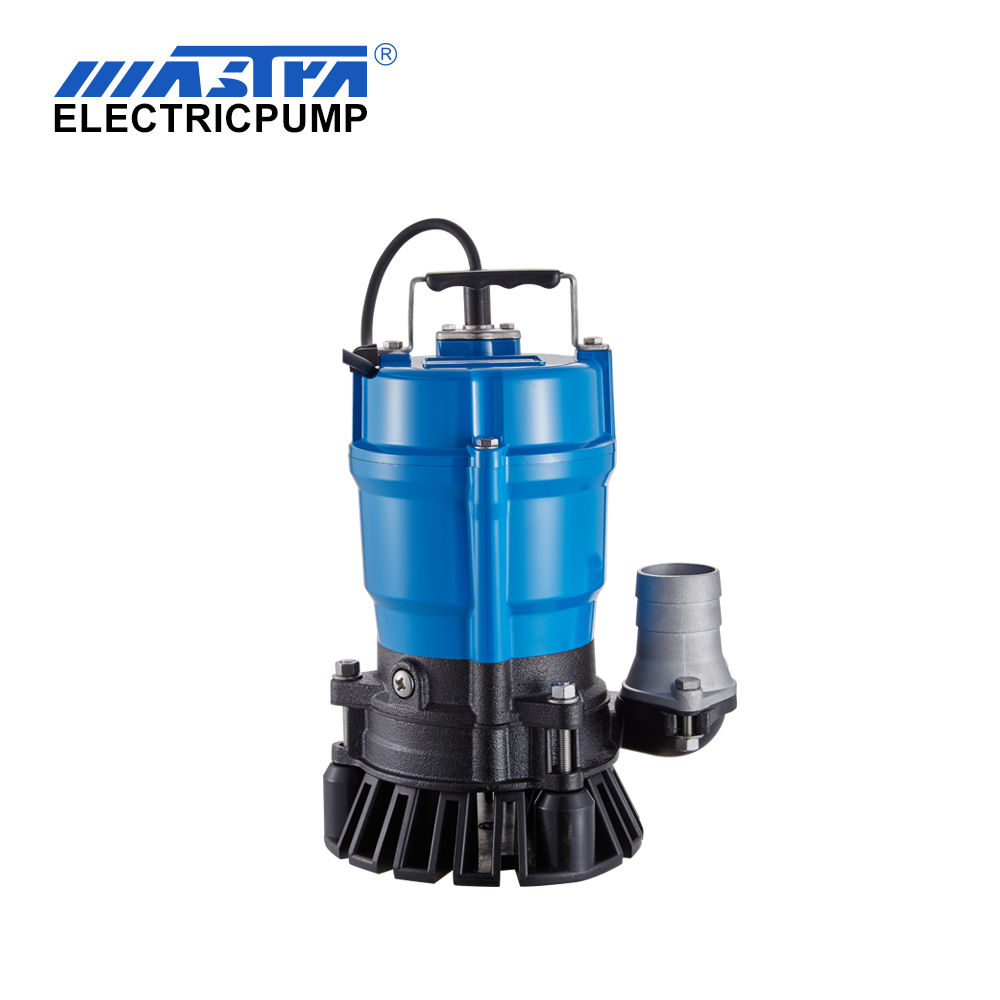

MHS
Mastra
3 inch
Plastic
The MHS collection adopts an exterior aspect drain port diagram to enhance the strong depend suction efficiency, mixed with the "high clearance structure", it efficaciously reduces the threat of impeller locking induced through overseas remember such as gravel. The pump shaft extension line is geared up with a stirring impeller, which has a twin feature to stop air plugging in the casing and decrease the hassle of stable remember suction blockage, making sure secure and environment friendly operation.
Suited for typical pumping and drainage, slurries, residues and family uses.

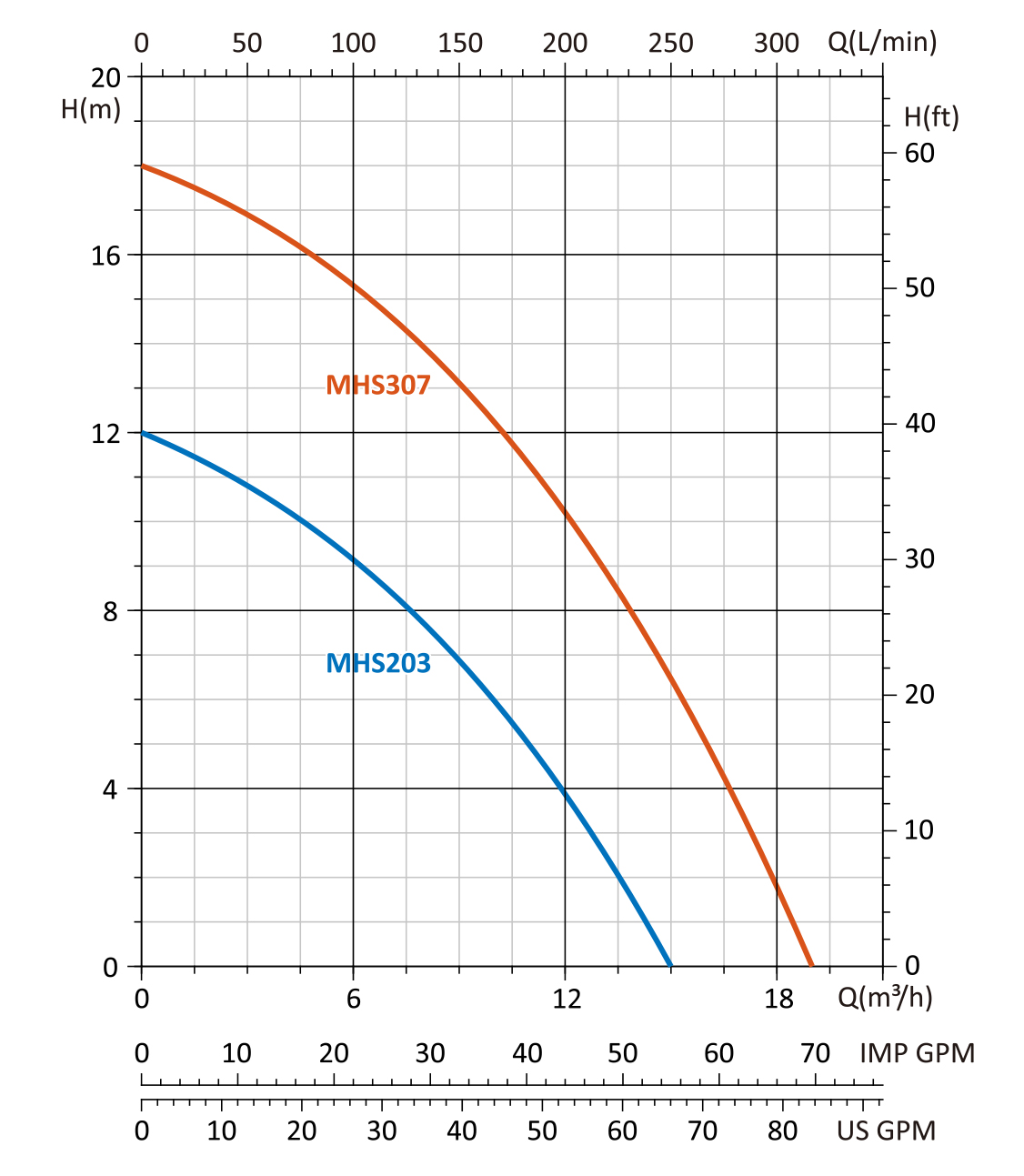

Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | |
| W | HP | V | P/rpm | m³/h | m | mm | mm | |
| MHS203 | 370 | 0.5 | 220/380 | 2P/2850 | 15 | 12 | 50 | 7 |
| MHS307 | 750 | 1 | 220/380 | 2P/2850 | 19 | 18 | 80(50) | 7 |
The MHS collection adopts an exterior aspect drain port diagram to enhance the strong depend suction efficiency, mixed with the "high clearance structure", it efficaciously reduces the threat of impeller locking induced through overseas remember such as gravel. The pump shaft extension line is geared up with a stirring impeller, which has a twin feature to stop air plugging in the casing and decrease the hassle of stable remember suction blockage, making sure secure and environment friendly operation.
Suited for typical pumping and drainage, slurries, residues and family uses.
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | |
| W | HP | V | P/rpm | m³/h | m | mm | mm | |
| MHS203 | 370 | 0.5 | 220/380 | 2P/2850 | 15 | 12 | 50 | 7 |
| MHS307 | 750 | 1 | 220/380 | 2P/2850 | 19 | 18 | 80(50) | 7 |
