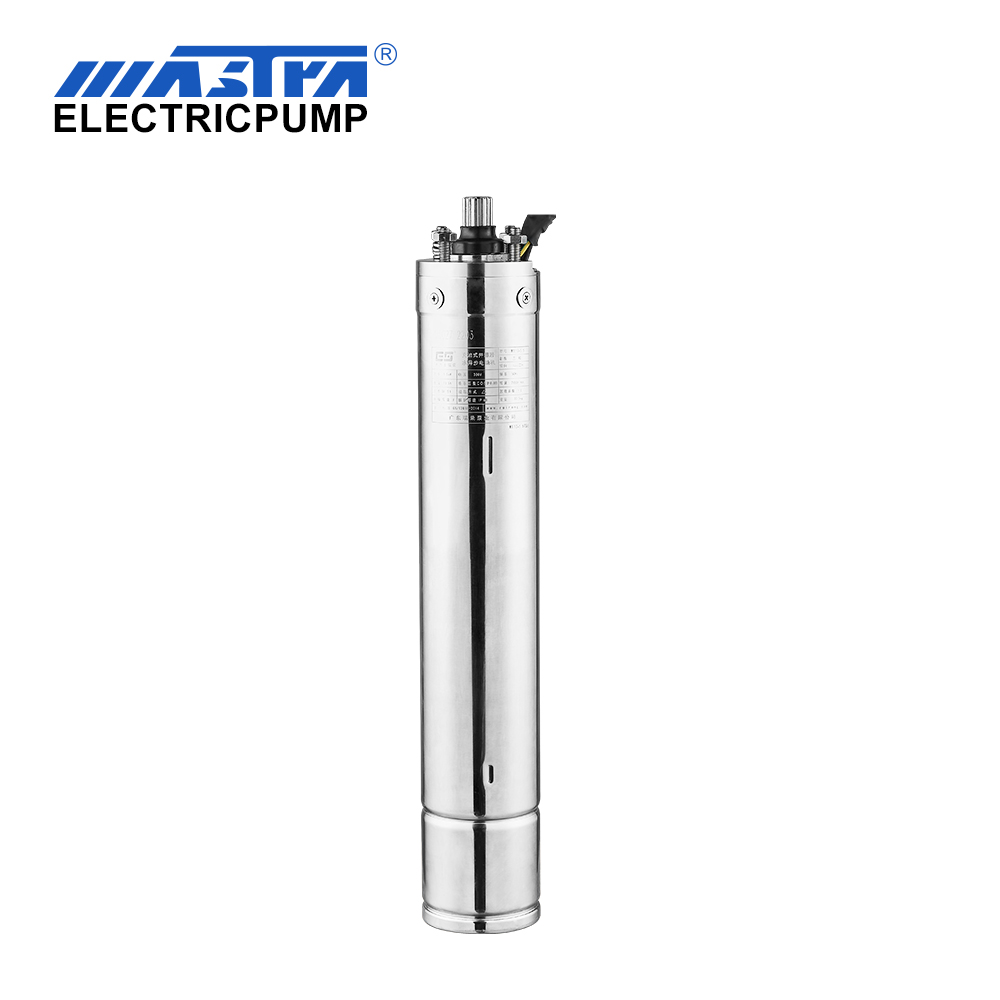

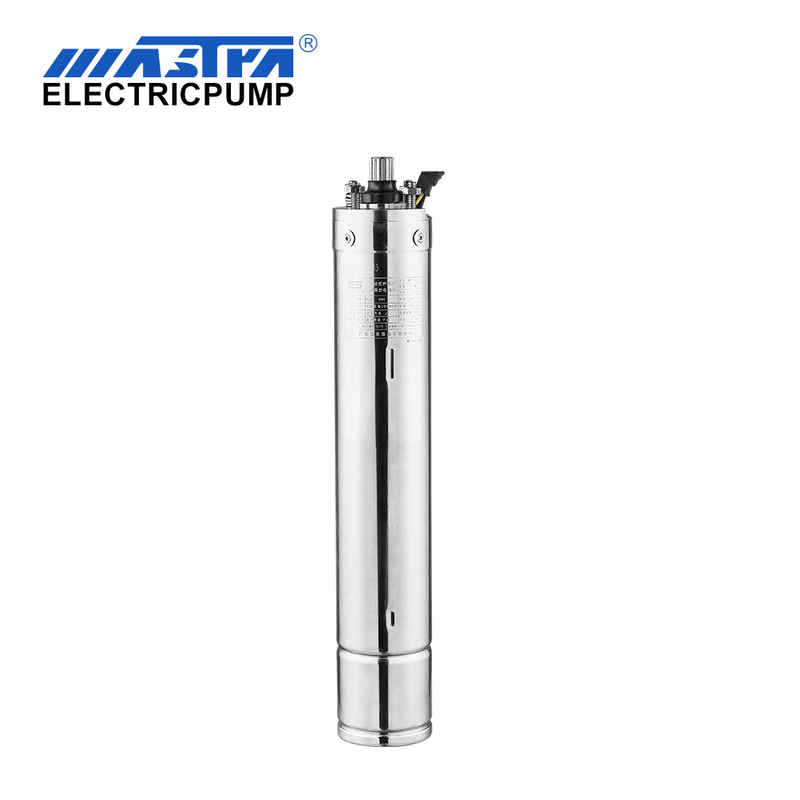

M110
EG
3 inch
Plastic
Features:
1. High-quality cold-roller silicon steel lamination.
2. ltalian mechanical seal.
3. High-quality bearing undertaking heavy thrust load.
4. 304/316 Stainless Steel Head Oil-filled Motor.
5. Rotor core is made of SS 431.
6. Corrosion-resistant, suitable for corrosive water such as acid and alkali.
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| M110-5.5 | 5.5 | 7.5 | 13.5 | 0.84 | 2850 | 787 | 30.5 |
| M110-7.5 | 7.5 | 10 | 18.5 | 0.85 | 2850 | 837 | 33.3 |
| M110-9.2 | 9.2 | 12.5 | 23 | 0.85 | 2850 | 907 | 37.4 |
| M110-11 | 11 | 15 | 26.5 | 0.85 | 2850 | 977 | 41.4 |
Note:
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
