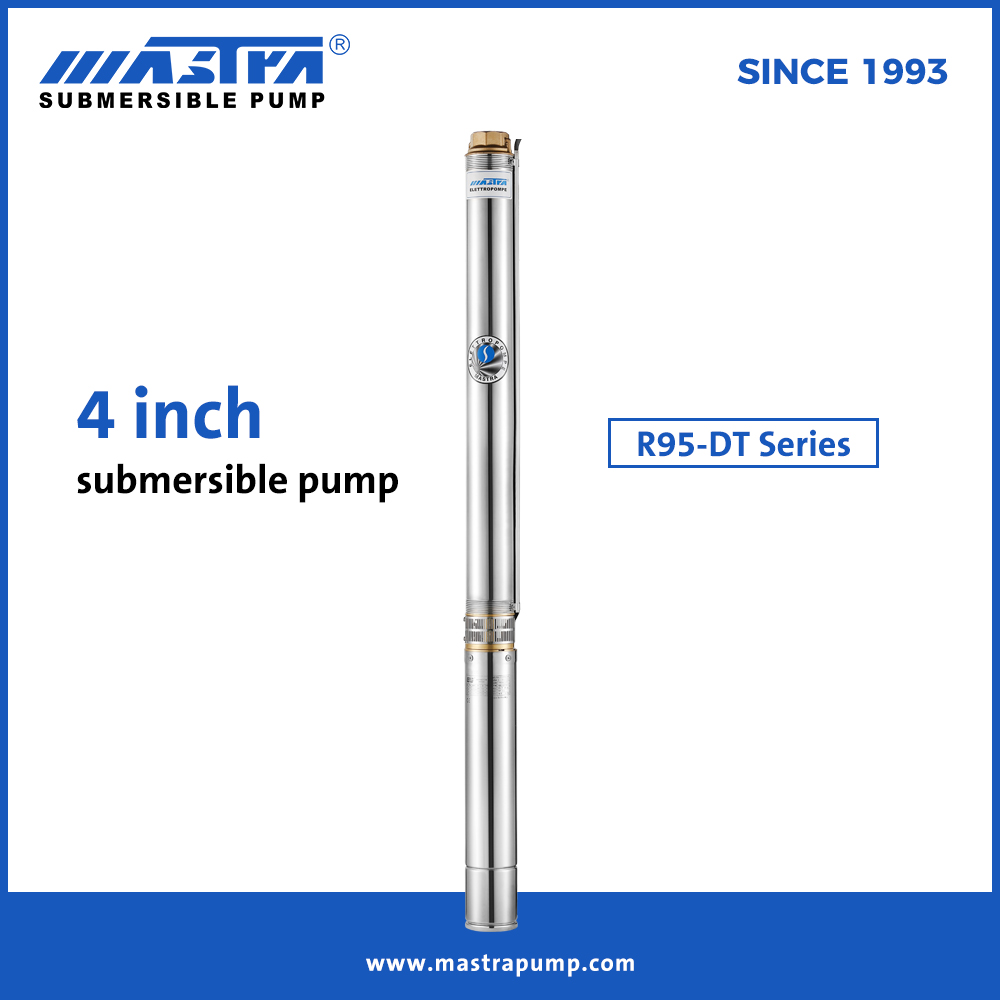

MASTRA 4 inch large flow Deep Well Pump R95-DT Series Submersible deep Well Pump

Availability:
Quantity:
Inquire Add to Basket

MASTRA 4 inch large flow Deep Well Pump R95-DT Series Submersible deep Well Pump
MASTRA 4 inch High Efficiency Deep Well Pump R95-GT Series Submersible Well Pump
MASTRA 4 inch High Efficiency Deep Well Pump R95-GT Series Submersible Well Pump
MASTRA 4 inch High Efficiency Deep Well Pump R95-GT Series Submersible Well Pump
MASTRA 4 inch High Efficiency Deep Well Pump R95-GT Series Submersible Well Pump
MASTRA 3 inch Submersible Well Pump R75 Series Deep Well Pump

  • R95-DT

  • MASTRA

  • 4 inch

  • Plastic

Utilizes the most stage of the art technology from sophisticated countries in the world such as USA and Italy. The main part of pump is made of stainless steel and copper alloy with characters of high efficiency, energy-saving, high wear resistance, anti-rust, beauty appearance and easy installation. Suit for domestic, civil and industrial applications, including for the water supply irrigation, wash down system and pressure boosting.


Feature:

1. Adopt stainless steel 304 pump pipe, beautiful and corrosion resistant

2. POM impeller, PPO diffuser, high temperature resistance, corrosion resistance, high mechanical strength, long service life.

3. The design of multi-stage floating impeller can effectively reduce the requirement of starting torque, and it is not easily blocked because of small sand particles, (strong ability to cross sand),longer service life of the motor.

4. Pump head material: options: copper alloy, stainless steel304/316, cast iron (anti-rust treatment)

593_R95-VC_03

Parts Material
Delivery door Brass
Suction support Brass
Check value Plastic(POM)
Valve support
 Plastic(PPO/PC)
Shaft support Plastic(PPO/PC)
Impeller Plastic(PPO)
Diffuser Plastic(POM)
Valve seal Nitrile rubber(NBR)
Anti-wear washer Nitrile rubber(NBR)
Pump bearing Nitrile rubber(NBR)
Pump body AISI 304
Cable cover AISI 304
Filter AISI 304
Shaft 2Cr13
Shaft coupling AISI 304
Bushing AISI 304


Performance Data -- 2m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 4 6.6 9.2 10.6 11.9 13.2 14.5
m³/h 0 0.9 1.5 2.1 2.4 2.7 3 3.3
L/min 0 15 25 35 40 45 50 55
HP kW Total head in meters
R95-DT2-06 0.33 0.25

H

(m)

 40 40 37 32 28 24 20 13
R95-DT2-08 0.5 0.37 53 53 48 40 34 28 22 14
R95-DT2-11 0.75 0.55 73 73 66 55 47 39 30 19
R95-DT2-14 1 0.75 95 95 86 70 61 53 38 26
R95-DT2-16 1 0.75 109 109 98 80 70 60 43 30
R95-DT2-19 1.5 1.1 129 129 116 95 83 71 51 36
R95-DT2-22 1.5
 1.1 150 150 135 110 96 83 59 41
R95-DT2-25 2 1.5 170 170 153 125 109 94 67 47
R95-DT2-28 2 1.5 191 191 172 140 123 105 75 53
R95-DT2-33 3 2.2 225 225 202 165 144 124 89 62
R95-DT2-38 3 2.2 259 259 233 190 166 143 102 71


Performance Data -- 3m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 5.3 7.9 10.6 13.2 15.8 18.5 21.1
m³/h 0 1.2 1.8 2.4 3 3.6 4.2 4.8
L/min 0 20 30 40 50 60 70 80
HP kW Total head in meters
R95-DT3-05 0.33 0.25

H

(m)

 34 33 31 29 25 20 14 7
R95-DT3-07 0.5 0.37 47 46 44 40 35 28 20 10
R95-DT3-09 0.75 0.55 61 59 56 52 45 36 25.5 13
R95-DT3-11 1 0.75 74 72 69 63 55 44 31 15.4
R95-DT3-13 1 0.75 87.5 85 81 74.5 65 52 37 18
R95-DT3-15 1.5 1.1 101 99 94 86 75 61 43 21
R95-DT3-17 1.5 1.1 114 112 107 97 85 68.5 48 24
R95-DT3-19 2 1.5 128 125 119 109 95 77 54 27
R95-DT3-21 2 1.5 141 138 132 120 105 85 60 29
R95-DT3-26 3 2.2 175
 171 163 149 130 105 74 36
R95-DT3-30 3 2.2 202 197 188 172 150 121 85 42


Performance Data -- 4m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 5.3 10.6 13.2 15.8 18.5 21.1 26.4
m³/h 0 1.2 2.4 3 3.6 4.2 4.8 6
L/min 0 20 40 50 60 70 80 100
HP kW Total head in meters
R95-DT4-06 0.5 0.37

H

(m)

 42 41 38 37 34 30 25 13
R95-DT4-07 0.75 0.55 48 47 44 43 39 35 29 15
R95-DT4-08 1 0.75 55 53 51 49 45 40 33 17
R95-DT4-10 1 0.75 69 67 63 61 56 50 42 21
R95-DT4-12 1.5 1.1 83 80 76 73 67 60 50 25
R95-DT4-14 1.5 1.1 96 93 88 84 78 68 58 30
R95-DT4-16 2 1.5 110 106 101 96 89 78 66 34
R95-DT4-18 2 1.5 123 119 113 108 98 87 73 34
R95-DT4-21 3 2.2 144 138 132 126 115 102 85 39
R95-DT4-24 3 2.2 164 158 151 144 131 116 97 45


Performance Data -- 6m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 2.6 5.3 7.9 9.2 10.6 11.9 13.2
m³/h 0 0.6 1.2 1.8 2.1 2.4 2.7 3
L/min 0 10 20 30 35 40 45 50
HP kW Total head in meters
R95-DT6-05 0.5 0.37

H

(m)

 33 32.5 31 30 27 23 18 12
R95-DT6-06 0.75 0.55 40 39 37.5 35.5 32.5 28 22 14
R95-DT6-07 1 0.75 46 45 44 42 39 33 26 16
R95-DT6-08 1 0.75 52 52 51 48 44 37 30 18
R95-DT6-09 1.5 1.1 59 58 57 54 50 42 34 20
R95-DT6-11 1.5 1.1 73 71 70 66 61 53 42 24
R95-DT6-12 2 1.5 80 77 76 72 66.5 58 46 26
R95-DT6-14 2 1.5 93 90 89 84 78 67 53 31
R95-DT6-17 3 2.2 113 110 108 102 94 82 64 37
R95-DT6-20 3 2.2 134 131 129 123 112 98 78 50


Performance Data -- 8m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 10.6 21.1 26.4 31.7 37 42.2 47.5
m³/h 0 2.4 4.8 6 7.2 8.4 9.6 10.8
L/min 0 40 80 100 120 140 160 180
HP kW Total head in meters
R95-DT8-05 0.75 0.55

H

(m)

 29 28 24 22.5 21 18 13 7.5
R95-DT8-06 1 0.75 35 33 29 27 25 21 16 8.5
R95-DT8-07 1 0.75 41 38 33 32 29 24 18 9
R95-DT8-08 1.5 1.1 47 43 38 36 33 27 20 10
R95-DT8-09 1.5 1.1 53 48 43 41 37 30 23 11
R95-DT8-10 2 1.5 59 54 48 45 41 34 25 13
R95-DT8-12 2 1.5 71 65 57 54 50 41 30 15
R95-DT8-15 3 2.2 88 81 71 68 62 51 38 19
R95-DT8-18 3 2.2 108 99 89 84 78 65 49 29

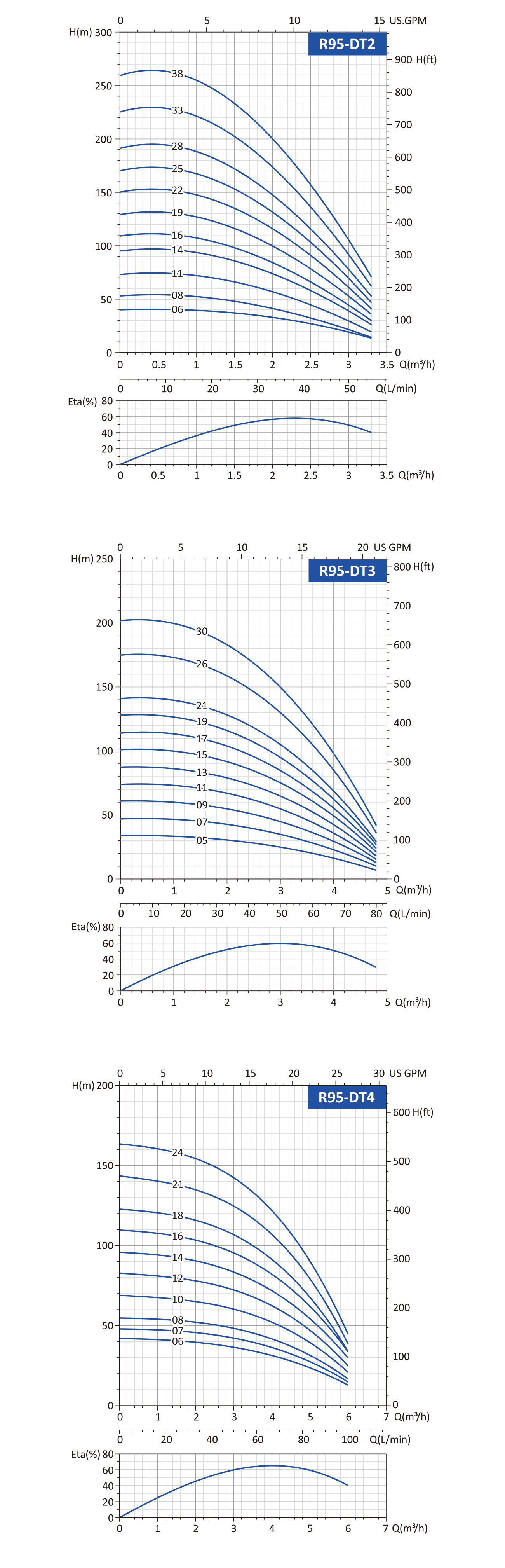

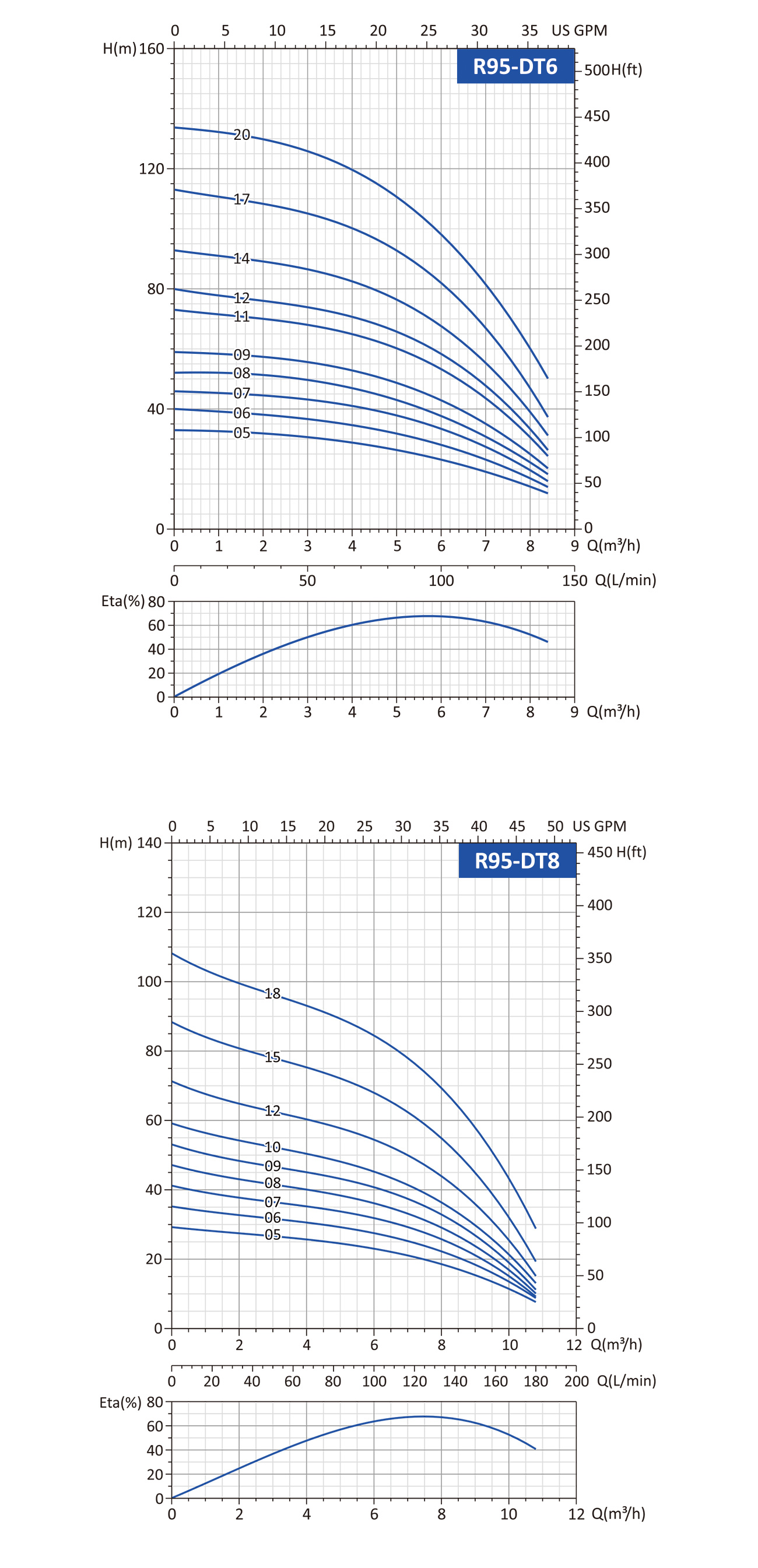

best submersible deep well pumpsubmersible well pump supplier

small submersible pump (Unit of Length: mm)
Model H1 Three Phase
 Single Phase ΦA ΦB Φmax
H2 H3 H2 H3
R95-DT2-06 375
 - - - - G1 1/4" 95 100
R95-DT2-08 424 351 775 316 740
R95-DT2-11 498 366 864 336 834
R95-DT2-14 572 386 958 361 933
R95-DT2-16 621 386 1007 361 982
R95-DT2-19 726 406 1132 391 1117
R95-DT2-22 800 406 1206 391 1191
R95-DT2-25 873 441 1314 435 1308
R95-DT2-28 947 441 1388 435 1382
R95-DT2-33 1070 501 1571 480 1550
R95-DT2-38 1192 501 1693 480 1672

R95-DT3-05 363 - - - - G1 1/4" 95 100
R95-DT3-07 417 351 768 316 733
R95-DT3-09 471 366 837 336 807
R95-DT3-11 526 386 912 361 887
R95-DT3-13 580 386 966 361 941
R95-DT3-15 634 406 1040 391 1025
R95-DT3-17 688 406 1094 391 1079
R95-DT3-19 774 441 1215 435 1209
R95-DT3-21 828 441 1269 435 1263
R95-DT3-26 963 501 1464 480 1443
R95-DT3-30 1071 501 1572 480 1551

R95-DT4-06 404 351 755 316 720 G1 1/4" 95 100
R95-DT4-07 434 366 800 336 770
R95-DT4-08 463 386 849 361 824
R95-DT4-10 522 386 908 361 883
R95-DT4-12 580 406 986 391 971
R95-DT4-14 639 406 1045 391 1030
R95-DT4-16 698 441 1139 435 1133
R95-DT4-18 788 441 1229 435 1223
R95-DT4-21 876 501 1377 480 1356
R95-DT4-24 964 501 1465 480 1444

R95-DT6-05 401 351 752 316 717 G1 1/2" 95 100
R95-DT6-06 435 366 801 336 771
R95-DT6-07 470 386 856 361 831
R95-DT6-08 505 386 891 361 866
R95-DT6-09 539 406 945 391 930
R95-DT6-11 608 406 1014 391 999
R95-DT6-12 643 441 1084 435 1078
R95-DT6-14 743 441 1184 435 1178
R95-DT6-17 847 501 1348 480 1327
R95-DT6-20 951 501 1452 480 1431

R95-DT8-05 420 366 786 336 756 G2" 95 100
R95-DT8-06 458 386 844 361 819
R95-DT8-07 497 386 883 361 858
R95-DT8-08 535 406 941 391 926
R95-DT8-09 574 406 980 391 965
R95-DT8-10 612 441 1053 435 1047
R95-DT8-12 720 441 1161 435 1155
R95-DT8-15 835 501 1336 480 1315
R95-DT8-18 951 501 1452 480 1431
