Features:

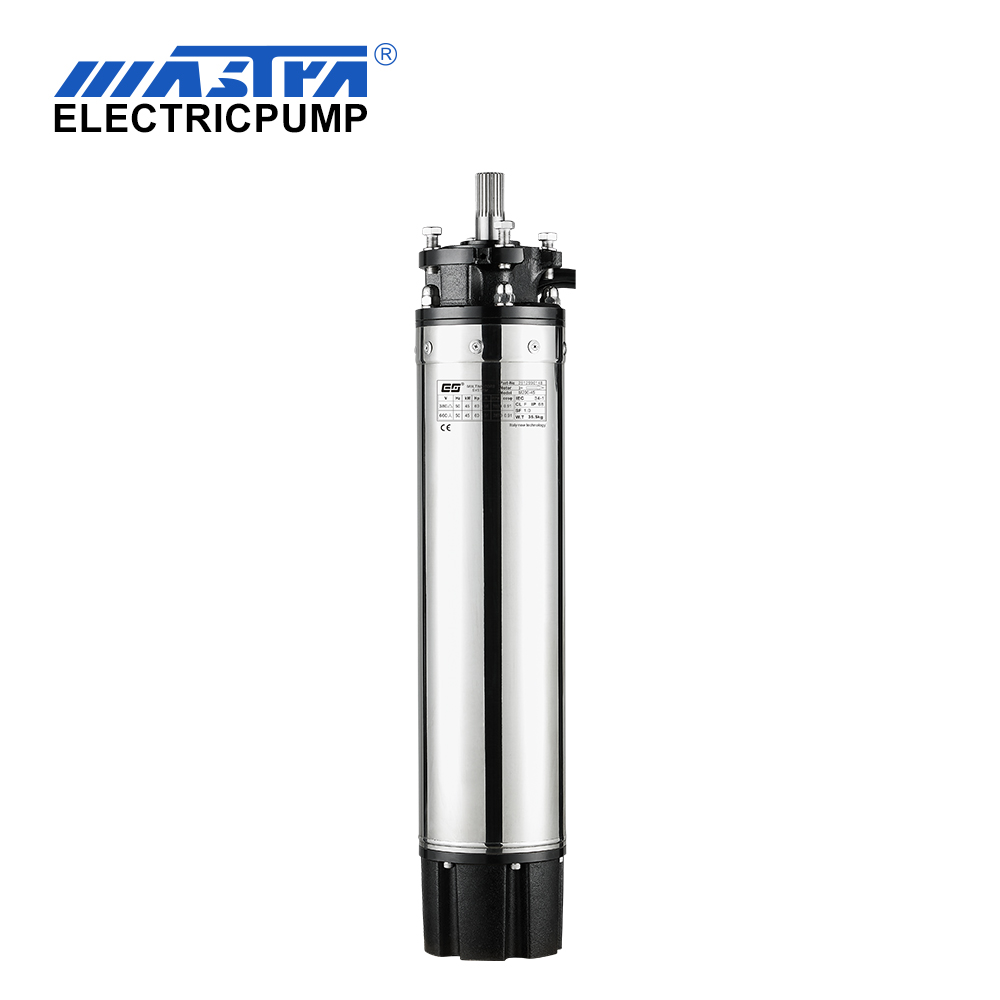

1. The motor is filled with oil, providing efficient cooling and lubrication for optimal performance.
2. The motor winding utilizes traditional enameled wire, offering superior electrical performance compared to water-filled wire.
3. Equipped with ball bearings for a simple, reliable design and an extended service life.
4. Available power range: 26kW to 75kW, compatible with 380V 50Hz and 380V/440V/460V/480V 60Hz systems.
5. Installation and connection dimensions adhere to NEMA standards, featuring a maximum outer diameter of 197 mm.
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| M200-26 | 26 | 35 | 54 | 0.90 | 2870 | 1007 | 120 |
| M200-30 | 30 | 40 | 61 | 0.91 | 2870 | 1047 | 128 |
| M200-37 | 37 | 50 | 72.5 | 0.91 | 2870 | 1117 | 143 |
| M200-45 | 45 | 60 | 88 | 0.91 | 2870 | 1187 | 161 |
| M200-55 | 55 | 75 | 106 | 0.91 | 2870 | 1257 | 176 |
| M200-64 | 64 | 85 | 123 | 0.91 | 2870 | 1337 | 193 |
| M200-75 | 75 | 100 | 145 | 0.91 | 2870 | 1417 | 207.5 |
Note:
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
