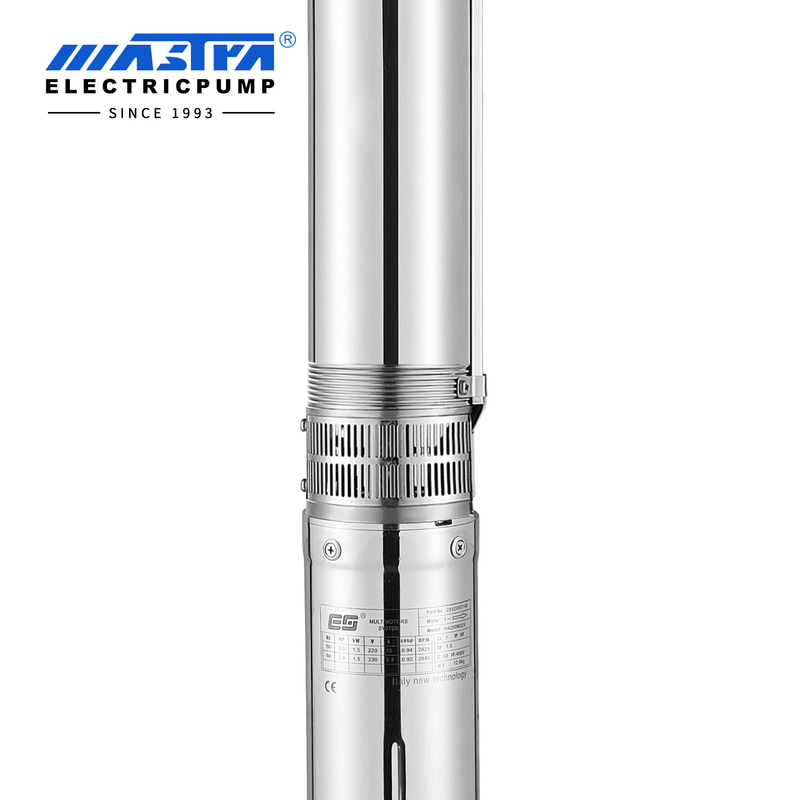

MASTRA 4 inch High cost performance Deep Well Pump R95-V Series Submersible Well Pump

Availability:
Quantity:
Inquire Add to Basket

MASTRA 4 inch High cost performance Deep Well Pump R95-V Series Submersible Well Pump
MASTRA 4 inch High cost performance Deep Well Pump R95-V Series Submersible Well Pump
MASTRA 4 inch High cost performance Deep Well Pump R95-V Series Submersible Well Pump
MASTRA 3 inch Submersible Well Pump R75 Series Deep Well Pump

  • R95-V

  • MASTRA

  • 4 inch

  • Plastic

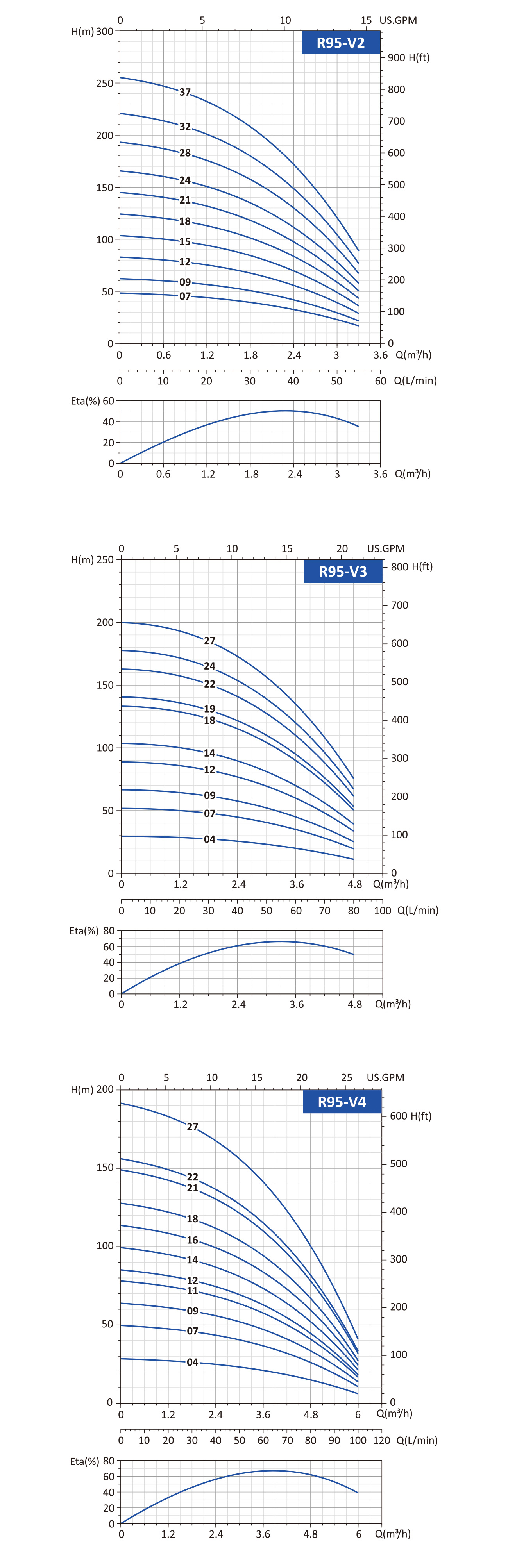

Performance Data -- 2m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 4 6.6 7.9 9.2 11.9 14.5
m³/h 0 0.9 1.5 1.8 2.1 2.7 3.3
L/min 0 15 25 30 35 45 55
HP kW Total head in meters
R95-V2-07 0.5 0.37

H

(m)

 48 46 42 39 36 28 17
R95-V2-09 0.5 0.37 62 59 54 50 47 36 22
R95-V2-12 0.75 0.55 83 78 72 67 62 48 29
R95-V2-15 1 0.75 104 98 90 84 78 60 36
R95-V2-18 1.25 0.92 124 117 108 101 94 72 43
R95-V2-21 1.5 1.1 145 137 126 118 109 84 50
R95-V2-24 1.75 1.3 166 156 144 134 125 96 58
R95-V2-28 2 1.5 193 182 168 157 146 112 67
R95-V2-32 2.5 1.8 221 208 192 179 166 128 77
R95-V2-37 3 2.2 255 241 222 207 192 148 89


Performance Data -- 3m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 7.9 10.6 13.2 15.9 18.5 21.1
m³/h 0 1.8 2.4 3 3.6 4.2 4.8
L/min 0 30 40 50 60 70 80
HP kW Total head in meters
R95-V3-04 0.33 0.25

H

(m)

 30 27 26 23 20 16 11
R95-V3-07 0.5 0.37 52 48 45 41 35 28 20
R95-V3-09 0.75 0.55 67 62 58 52 45 36 25
R95-V3-12 1 0.75 89 82 77 70 60 48 34
R95-V3-14 1 0.75 104 96 90 81 70 56 39
R95-V3-18 1.5 1.1 133 123 115 104 90 72 50
R95-V3-19 1.5 1.1 141 130 122 110 95 76 53
R95-V3-22 2 1.5 163 151 141 128 110 88 62
R95-V3-24 2 1.5 178 164 154 139 120 96 67
R95-V3-27 3 2.2 200 185 173 157 135 108 76


Performance Data -- 4m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 13.2 15.9 18.5 21.1 23.8 26.4
m³/h 0 3 3.6 4.2 4.8 5.4 6
L/min 0 50 60 70 80 90 100
HP kW Total head in meters
R95-V4-04 0.5 0.37

H

(m)

 28 23 21 18 15 10 6
R95-V4-07 0.75 0.55 50 40 37 32 27 18 11
R95-V4-09 1 0.75 64 51 48 41 34 23 14
R95-V4-11 1.25 0.92 78 63 58 51 42 28 18
R95-V4-12 1.25 0.92 85 68 64 55 46 30 19
R95-V4-14 1.5 1.1 99 80 74 64 53 35 22
R95-V4-16 1.75 1.3 114 91 85 74 61 40 26
R95-V4-18 2 1.5 128 103 95 83 68 45 29
R95-V4-21 2.5 1.8 149 120 111 97 80 53 34
R95-V4-22 2.5 1.8 156 125 117 101 84 55 35
R95-V4-27 3 2.2 192 154 143 124 103 68 43

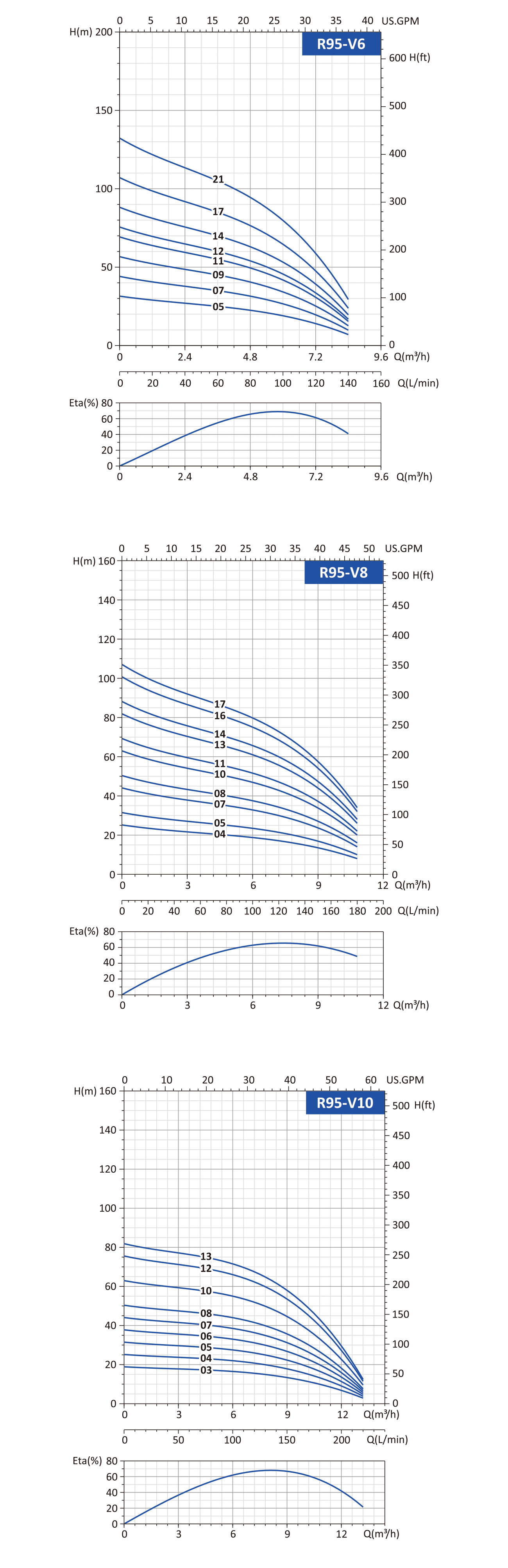

Performance Data -- 6m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 10.6 15.9 21.1 26.4 31.7 37
m³/h 0 2.4 3.6 4.8 6 7.2 8.4
L/min 0 40 60 80 100 120 140
HP kW Total head in meters
R95-V6-05 0.75 0.55

H

(m)

 32 27 25 23 19 14 7
R95-V6-07 1 0.75 44 38 35 32 27 20 10
R95-V6-09 1.25 0.92 57 49 45 41 34 25 13
R95-V6-11 1.5 1.1 69 59 55 50 42 31 15
R95-V6-12 1.75 1.3 76 65 60 54 46 34 17
R95-V6-14 2 1.5 88 76 70 63 53 39 20
R95-V6-17 2.5 1.8 107 92 85 77 65 48 24
R95-V6-21 3 2.2 132 113 105 95 80 59 29
R95-V6-28 4 3 176 151 140 126 106 78 39


Performance Data -- 8m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 21.1 26.4 31.7 37 42.3 47.6
m³/h 0 4.8 6 7.2 8.4 9.6 10.8
L/min 0 80 100 120 140 160 180
HP kW Total head in meters
R95-V8-04 0.75 0.55

H

(m)

 25 20 19 17 15 12 8
R95-V8-05 1 0.75 32 25 24 22 19 15 10
R95-V8-07 1.25 0.92 44 35 33 30 26 21 14
R95-V8-08 1.5 1.1 50 40 38 34 30 24 16
R95-V8-10 1.75 1.3 63 50 47 43 37 30 20
R95-V8-11 2 1.5 69 55 52 47 41 33 22
R95-V8-13 2.5 1.8 82 65 61 56 48 39 26
R95-V8-14 2.5 1.8 88 70 66 60 52 42 28
R95-V8-16 3 2.2 101 80 75 69 59 48 32
R95-V8-17 3 2.2 107 85 80 73 63 51 34
R95-V8-22 4 3 139 110 103 95 81 66 44


Performance Data -- 10m3/h Rated Flow

Model

50Hz

Motor

Power

 Q Capacity
US.gpm 0 23.8 31.7 39.6 47.6 55.5 58.1
m³/h 0 5.4 7.2 9 10.8 12.6 13.2
L/min 0 90 120 150 180 210 220
HP kW Total head in meters
R95-V10-03 0.75 0.55

H

(m)

 19 17 16 14 10 5 3
R95-V10-04 1 0.75 25 22 21 18 13 6 4
R95-V10-05 1.25 0.92 32 28 26 23 17 8 5
R95-V10-06 1.5 1.1 38 34 31 27 20 10 6
R95-V10-07 1.75 1.3 44 39 36 32 23 11 7
R95-V10-08 2 1.5 50 45 42 36 26 13 8
R95-V10-10 2.5 1.8 63 56 52 45 33 16 10
R95-V10-12 3 2.2 76 67 62 54 40 19 12
R95-V10-13 3 2.2 82 73 68 59 43 21 13
R95-V10-17 4 3 107 95 88 77 56 27 17
R95-V10-22 5.5 4 139 123 114 99 73 35 22


submersible motorsubmersible pump OEM

small submersible pump (Unit of Length: mm)
Model H1 Three Phase
 Single Phase ΦA ΦB Φmax
H2 H3 H2 H3
R95-V2-07




G1 1/2" 95 100
R95-V2-09




R95-V2-12




R95-V2-15




R95-V2-18




R95-V2-21




R95-V2-24




R95-V2-28




R95-V2-32




R95-V2-37





R95-V3-04




G1 1/2" 95 100
R95-V3-07




R95-V3-09




R95-V3-12




R95-V3-14




R95-V3-18




R95-V3-19




R95-V3-22




R95-V3-24




R95-V3-27





R95-V4-04




G1 1/2" 95 100
R95-V4-07




R95-V4-09




R95-V4-11




R95-V4-12




R95-V4-14




R95-V4-16




R95-V4-18




R95-V4-21




R95-V4-22




R95-V4-27





R95-V6-05




G1 1/2" 95 100
R95-V6-07




R95-V6-09




R95-V6-11




R95-V6-12




R95-V6-14




R95-V6-17




R95-V6-21




R95-V6-28





R95-V8-04




G1 1/2" 95 100
R95-V8-05




R95-V8-07




R95-V8-08




R95-V8-10




R95-V8-11




R95-V8-13




R95-V8-14




R95-V8-16




R95-V8-17




R95-V8-22





R95-V10-03




G1 1/2" 95 100
R95-V10-04




R95-V10-05




R95-V10-06




R95-V10-07




R95-V10-08




R95-V10-10




R95-V10-12




R95-V10-13




R95-V10-17




R95-V10-22





Previous:
Next:
MASTRA pump best submersible water pump stainless steel submersible well pump High cost performance Submersible pump high quality Submersible well Pump Best Submersible well Pump Manufacturer 4 inch submersible well pump 4 inch deep well pump stainless steel deep well pump deep well submersible pump
