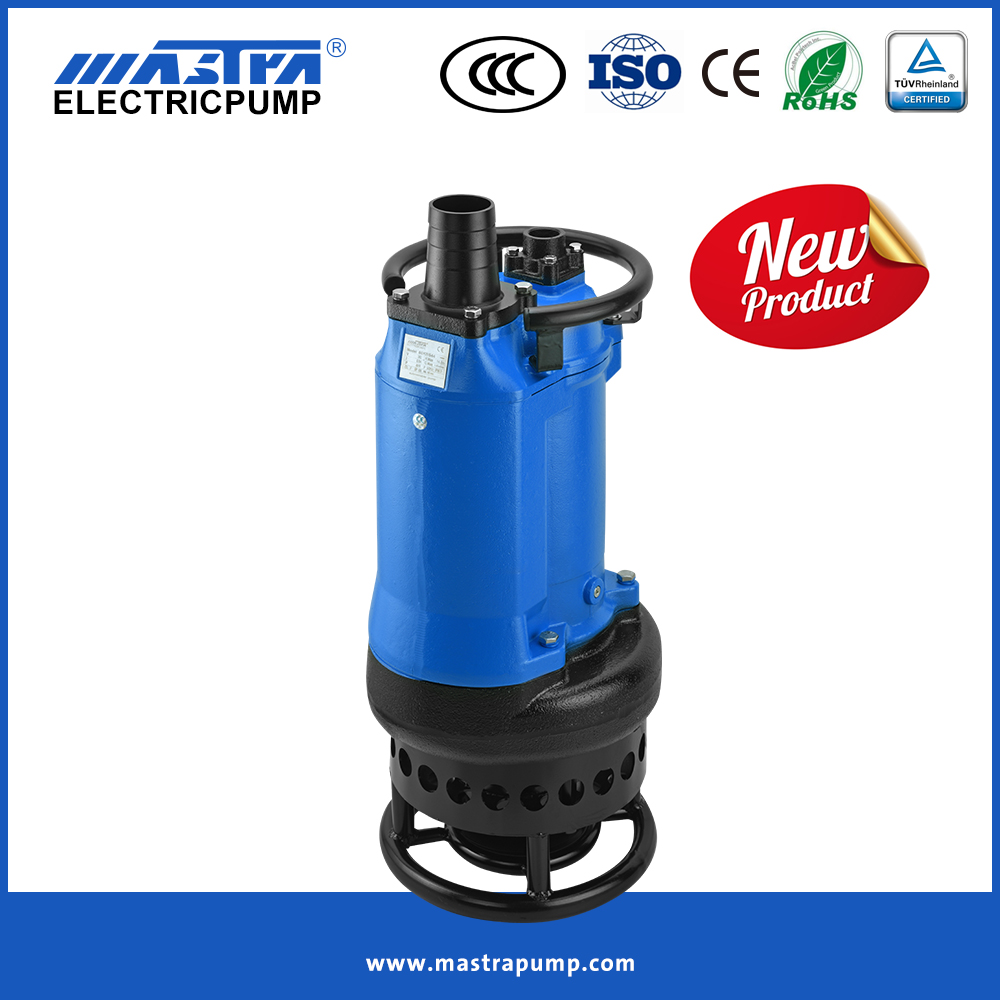

MASTRA TVA Series submersible slurry famfo Non toshe Najasa sharar ruwan famfo

Siffofin

Gine-ginen simintin ƙarfe na jerin shirye-shiryen mu na TVA yana tsawaita rayuwar famfo ta hanyar hana lalacewa da gazawar da ba a kai ba daga abubuwan da aka lalata da aka samu a aikin ma'adinai da gine-gine. Akwai su a cikin nau'ikan nau'ikan fitarwa da ƙarfin dawakai, famfunan TVA an ƙera su don jure har ma da mafi tsananin yanayi.

4 iyakacin duniya, 1800 rpm Motors rage impeller tip gudun da kuma mika sassa lalacewa rayuwa.

High chrome alloy impeller hade tare da agitator don yin famfo nauyi slurry.

• Insulation Class: F

• Matsayin kariya: LP68

• Tsawon igiya: 8m, sauran tsayin zaɓin zaɓi

• Zafin ruwa: har zuwa 40 ° C

• Matsakaicin zurfin nutsewa: 15m

Ƙayyadaddun bayanai

• Yawan aiki: har zuwa 372 m3 / h

• Kai: har zuwa mita 32

• Fitarwa: 80mm (3') zuwa 200mm (8')

• Ƙarfin wutar lantarki: 4kW (5.5HP) zuwa 22kW (30HP)

• Ƙarfin wutar lantarki: kashi uku 380V± 10%, 50HZ; 380V± 10%, 60HZ

Aikace-aikace

• Injiniyan ci gaba

• Ma'adinai, ma'adinai, takin kwal & slurries

• Matakan kula da najasa

• Janar famfo dalilai

• Ruwan zuƙowa: sludge, ruwa mai ɗauke da laka da bentonite

Siffofin musamman akan buƙata

• Sauran ƙarfin lantarki

• Tsawon kebul na zaɓi ne

Teburin Ayyuka

Samfura (50/60Hz)	Fitowa	Motoci Ƙarfi		farawa Hanya	An ƙididdigewa A halin yanzu	Ƙarfin Ƙarfi		An ƙididdigewa Shugaban	Max iya aiki		Max Shugaban	impeller Wucewa
	mm	kW	HP		A	m 3/h	m 3/min	m	m 3/h	m 3/min	m	mm
80TVA44	80	4	5.5	DOL	10.2	60	1	10	99	1.65	14.8	30
100TVA46	100	6	8	DOL	13.8	90	1.5	10	144	2.4	16.9	30
Saukewa: 150TVA49	150	9	12	DOL	19.5	100	1.67	15	192	3.2	21.5	30
Saukewa: 200TVA415	200	15	20	DOL	30.1	200	3.33	16	372	6.2	22	30
Saukewa: 200TVA422	200	22	30	DOL	42	200	3.33	24	360	6	32	30

Lanƙwan Ayyuka
